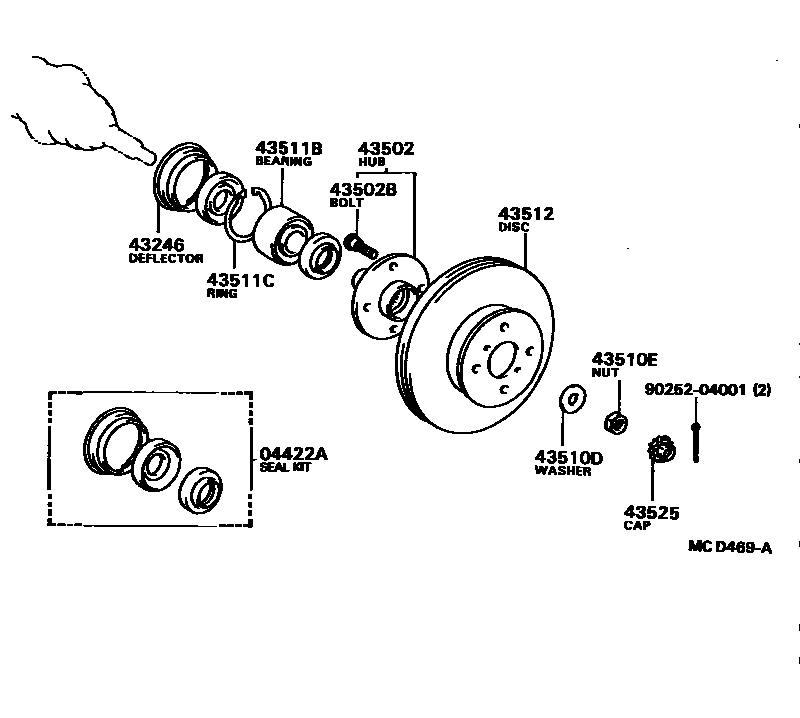

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-20010iAT160,ST162198508-198708

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-20010iAT160,ST162198508-198708

43502HUB SUB-ASSY, FRONT AXLE

main43502-20030iAT160198508-198708

sub43502-12100

sub43502-20110

main43502-20040iST162198602-198708

sub43502-32040

main43502-32010iST162198508-198602

sub43502-20040

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iAT160,ST162198508-198708

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iAT160,ST162198508-198708

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iAT160,ST162198508-198708

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iAT160,ST162198508-198708

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iAT160,ST162198508-198708

OD=79

43512DISC, FRONT

main43512-20110iAT160198509-198708

main43512-20120iST162198509-198708

sub43512-20300

main43512-20150iAT160198508-198509

sub43512-20110

main43512-20160iST162198508-198509

sub43512-20120

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iAT160,ST162198508-198708

9025204001

main90252-04001

11 parts on this diagram · 1 diagram in section
