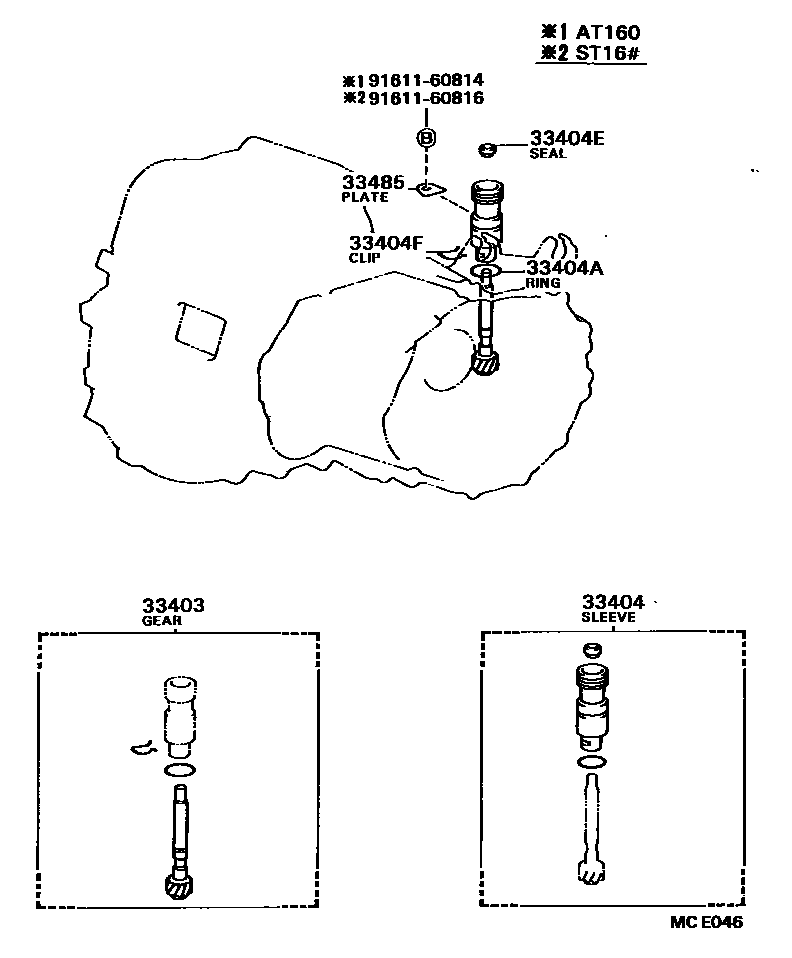

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-19295iAT160198508-198708

N=30,MARK 30:35

main33403-39115iST162..5F198508-198708

N=22,MARK 22:25

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-12030iAT160198508-198708

main33404-16010iST162..5F198508-198708

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main96711-24018iST162..5F198508-198708

main96711-24030iAT160198508-198708

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iAT160,ST162..5F198508-198708

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iAT160,ST162..5F198508-198708

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-14010iST162..5F198508-198708

main33485-30020iAT160198508-198708

9161160814

main91611-60814

9161160816

main91611-60816

8 parts on this diagram · 1 diagram in section
