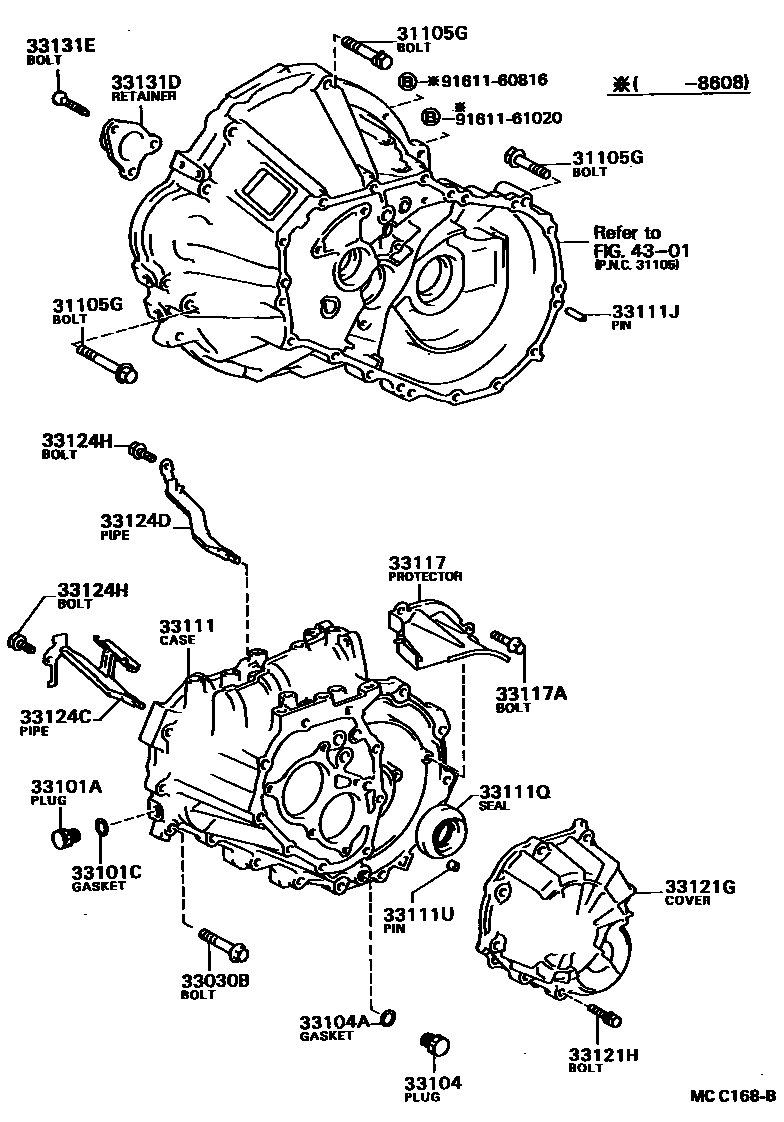

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iST162..5F198508-198708

*8-1.25PX18-15,*8-1.25PX18-15

sub91641-H0820

main90105-10077iAT160,ST162..5F198508-198708

*10-1.25PX43-26,*10-1.25PX43-26

main90119-12042iAT160198508-198708

*12-1.25PX75-30,*12-1.25PX75-30

main90119-12168iAT160,ST162..5F198508-198708

*12-1.25PX55-30,*10-1.25PX55-30

main91511-61035iST162..5F198610-198708

*10-1.25PX35-30

sub91512-61035

main91611-61040iST162..5F198508-198610

*10-1.25PX40-30,*10-1.25PX40-30

sub91612-61040

main91651-41022iST162..5F198607-198708

*10-1.25PX22-22,*10-1.25PX22-17

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iST162..5F198508-198708

*8-1.25PX45-27.5

sub90105-08430

main90105-08064iAT160198508-198708

*8-1.25PX51-28

sub90105-08353

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iST162..5F198508-198708

main90341-18006iAT160198508-198708

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iAT160,ST162..5F198508-198708

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iAT160,ST162..5F198508-198708

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iAT160,ST162..5F198508-198708

33111CASE, MANUAL TRANSMISSION

main33111-12170iAT160198508-198608

sub33111-16040

main33111-16040iAT160198608-198708

sub33111-16070

sub90109-12073

main33111-32013iST162..5F198508-198604

sub33111-32014

sub33151-32011

main33111-32014iST162..5F198604-198708

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iAT160,ST162..5F198508-198708

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34008iAT160198508-198708

sub90311-34017

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001iAT160198508-198708

L=11,OD=11

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-17010iAT160198508-198708

sub33117-16010

main33117-32011iST162..5F198508-198708

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iAT160,ST162..5F198508-198708

sub91641-H0820

33121GCOVER, MANUAL TRANSMISSION CASE

main33102-12020iAT160198508-198708

sub33102-12021

main33102-32011iST162..5F198508-198708

sub33102-32012

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iST162..5F198508-198708

sub90105-08273

main91611-60835iAT160198508-198708

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12010iAT160198508-198708

main33124-32010iST162..5F198508-198510

sub33124-32011

main33124-32011iST162..5F198510-198708

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12020iAT160198508-198708

33124HBOLT(FOR OIL RECEIVER PIPE)

main91611-60820iAT160198508-198708

sub91611-G0820

main91651-60618iST162..5F198508-198708

33131DRETAINER, BEARING, FRONT

main33131-12070iAT160198508-198708

sub33131-12071

33131ESCREW(FOR BEARING RETAINER FRONT)

main90149-60028iAT160198508-198708

4301

9161160816

main91611-60816

9161161020

main91611-61020

22 parts on this diagram · 2 diagrams in section
