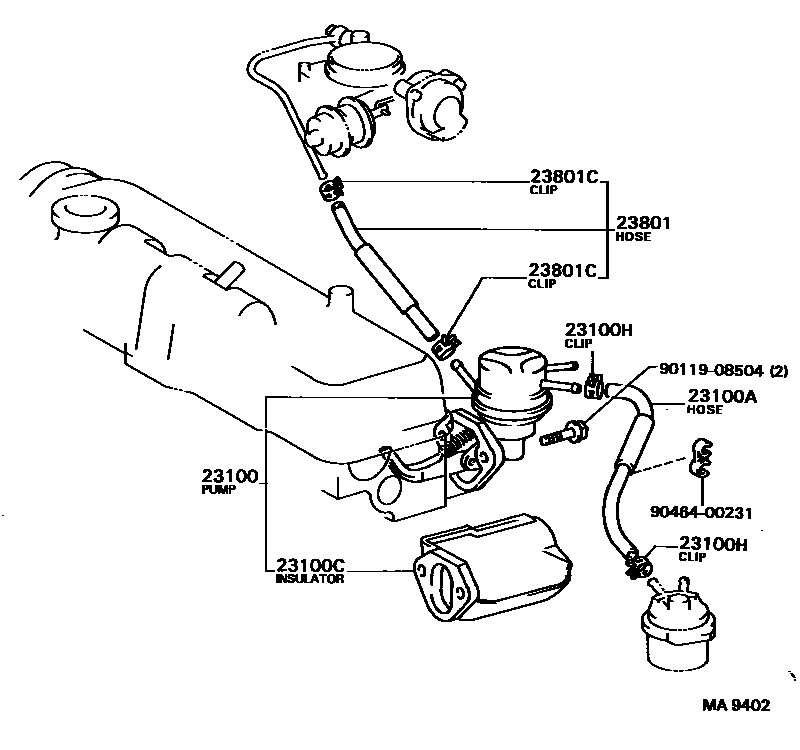

FUEL PUMP & PIPE

23100PUMP ASSY, FUEL

main23100-19195i4AL..AT160198508-198708

23100AHOSE, FUEL

main23271-15090i4AL..AT160198508-198708

23100CINSULATOR, FUEL PUMP

main23915-15011i4AL..AT160198508-198708

23100HCLIP(FOR FUEL HOSE)

main96132-30600i4AL..AT160198508-198708

sub96132-51100

23801PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1

main23271-15010i4AL..AT160198508-198708

23801CCLIP(FOR CARBURETOR FUEL HOSE)

main96132-30600i4AL..AT160198508-198708

sub96132-51100

9011908504

main90119-08504

9046400231

main90464-00231

8 parts on this diagram · 1 diagram in section
