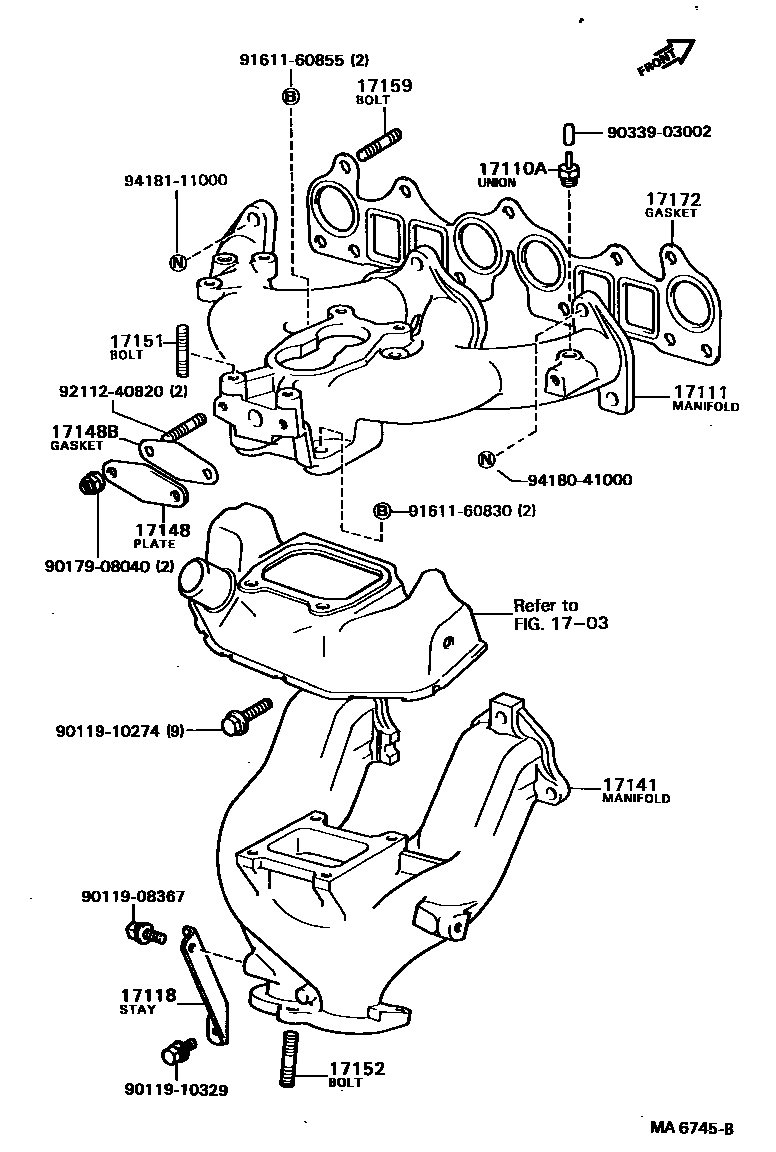

MANIFOLD
1703
17110AUNION, VACUUM HOSE
17111MANIFOLD, INTAKE
17141MANIFOLD, EXHAUST
17148PLATE, EXHAUST MANIFOLD(FOR EGR INLET)
17148BGASKET, EGR INLET
17151BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
INTAKE MANIFOLD SIDE
INTAKE MANIFOLD
EXHAUST MANIFOLD
EXHAUST MANIFOLD SIDE
L=44,S=12 & 20
17172GASKET, MANIFOLD TO CYLINDER HEAD
sub17172-14011
9011908367
main90119-08367
9011910274
main90119-10274
9011910329
main90119-10329
9017908040
main90179-08040
9033903002
main90339-03002
9161160830
main91611-60830
9161160855
main91611-60855
9211240820
main92112-40820
9418041000
main94180-41000
9418111000
main94181-11000
21 parts on this diagram · 3 diagrams in section
