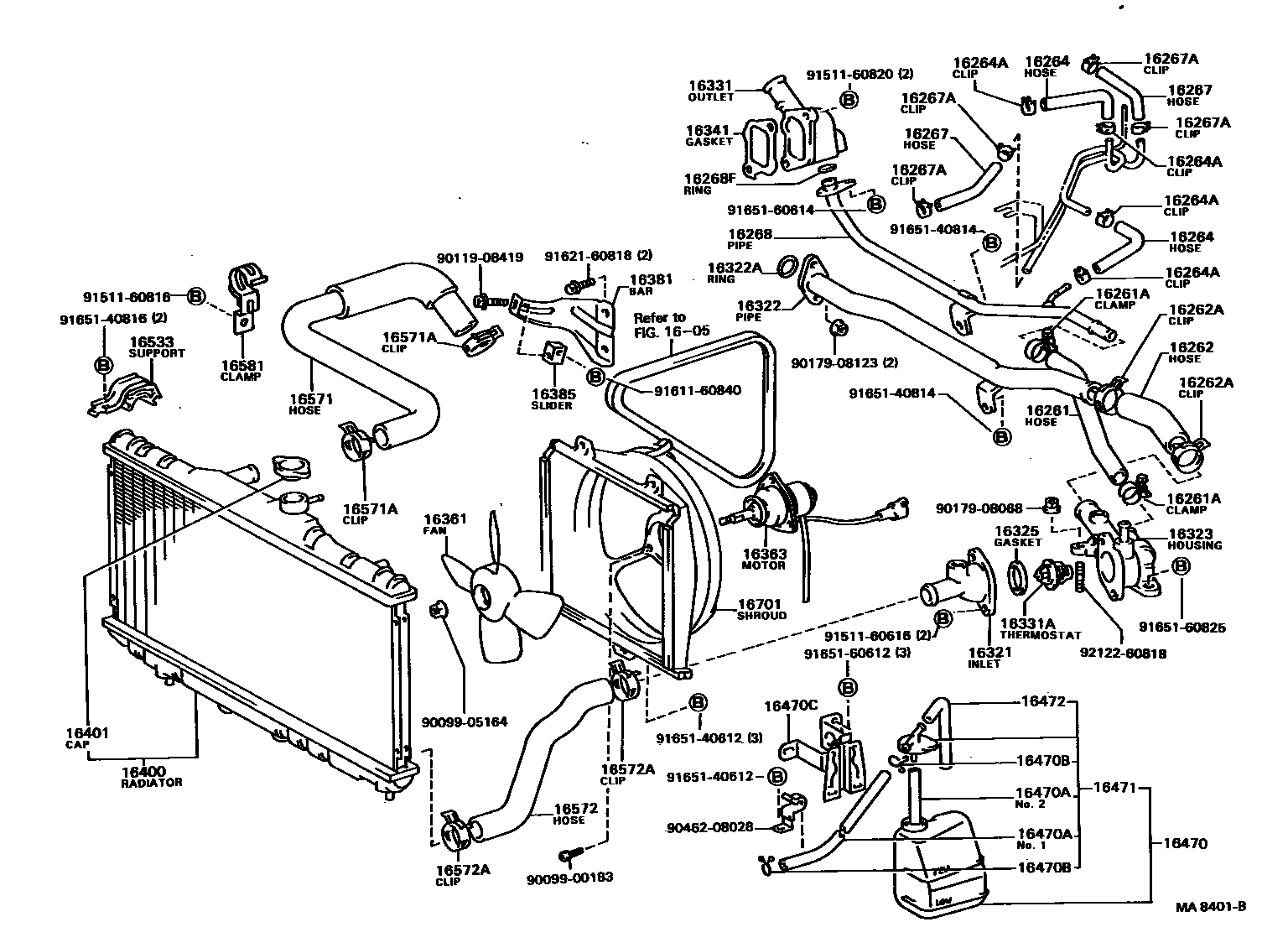

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16262HOSE, WATER INLET
16264HOSE, WATER BY-PASS, NO.2
16267HOSE, WATER BY-PASS, NO.3
16268FRING, O(FOR WATER BY-PASS PIPE)
16322PIPE, WATER INLET
16322ARING, O(FOR WATER INLET)
sub96761-24035
16323HOUSING, WATER INLET
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331ATHERMOSTAT
*WAX 82-95
16361FAN
16363MOTOR, COOLING FAN
16385SLIDER, FAN BELT ADJUSTING
W/COOLER
16401CAP SUB-ASSY, RADIATOR
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=1800(*H,L=620),NO.1
L=1450(*H,L=140),NO.1,NO.2
L=600(*H,L=145),NO.2
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16533SUPPORT, RADIATOR, UPPER
16571HOSE, RADIATOR, INLET
OUTLET SIDE
OUTLET SIDE
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
16581CLAMP, HOSE(FOR WATER HOSE)
9009900183
main90099-00183
9009905164
main90099-05164
9011908419
main90119-08419
9017908068
main90179-08068
9017908123
main90179-08123
9046208028
main90462-08028
9151160616
main91511-60616
9151160816
main91511-60816
9151160820
main91511-60820
9161160840
main91611-60840
9162160818
main91621-60818
9165140612
main91651-40612
9165140814
main91651-40814
9165140816
main91651-40816
9165160612
main91651-60612
9165160614
main91651-60614
9165160825
main91651-60825
9212260818
main92122-60818
56 parts on this diagram · 5 diagrams in section
