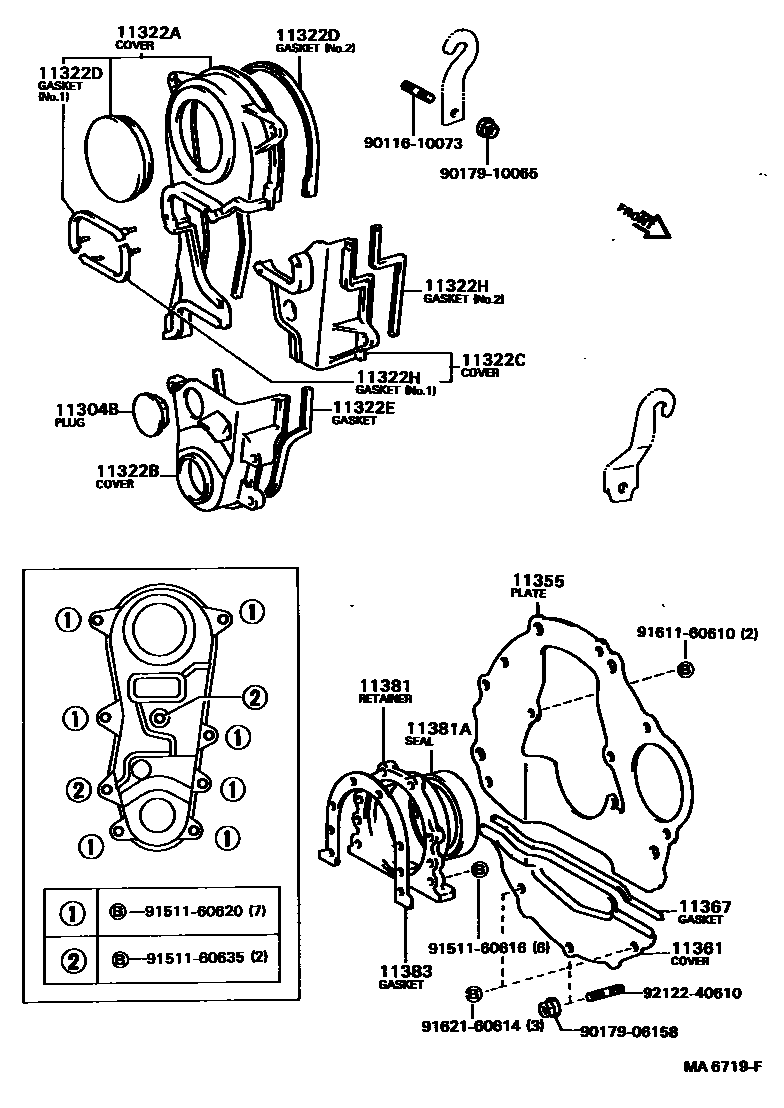

TIMING GEAR COVER & REAR END PLATE
11304COVER, TIMING CHAIN OR BELT, NO.2
11304BPLUG, SEMI CIRCULAR(FOR CHAIN COVER NO.2)
OD=34
OD=22
11322BCOVER, TIMING BELT, NO.2
11322CCOVER, TIMING BELT, NO.3
11322DGASKET, TIMING BELT COVER, NO.1
NO.2
NO.1
11322EGASKET, TIMING BELT COVER, NO.2
11322HGASKET, TIMING BELT COVER, NO.3
NO.2
NO.1
11367GASKET, FLYWHEEL HOUSING UNDER
9011610073
main90116-10073
9017906158
main90179-06158
9017910065
main90179-10065
9151160616
main91511-60616
9151160620
main91511-60620
9151160635
main91511-60635
9161160610
main91611-60610
9162160614
main91621-60614
9212240610
main92122-40610
23 parts on this diagram · 3 diagrams in section
