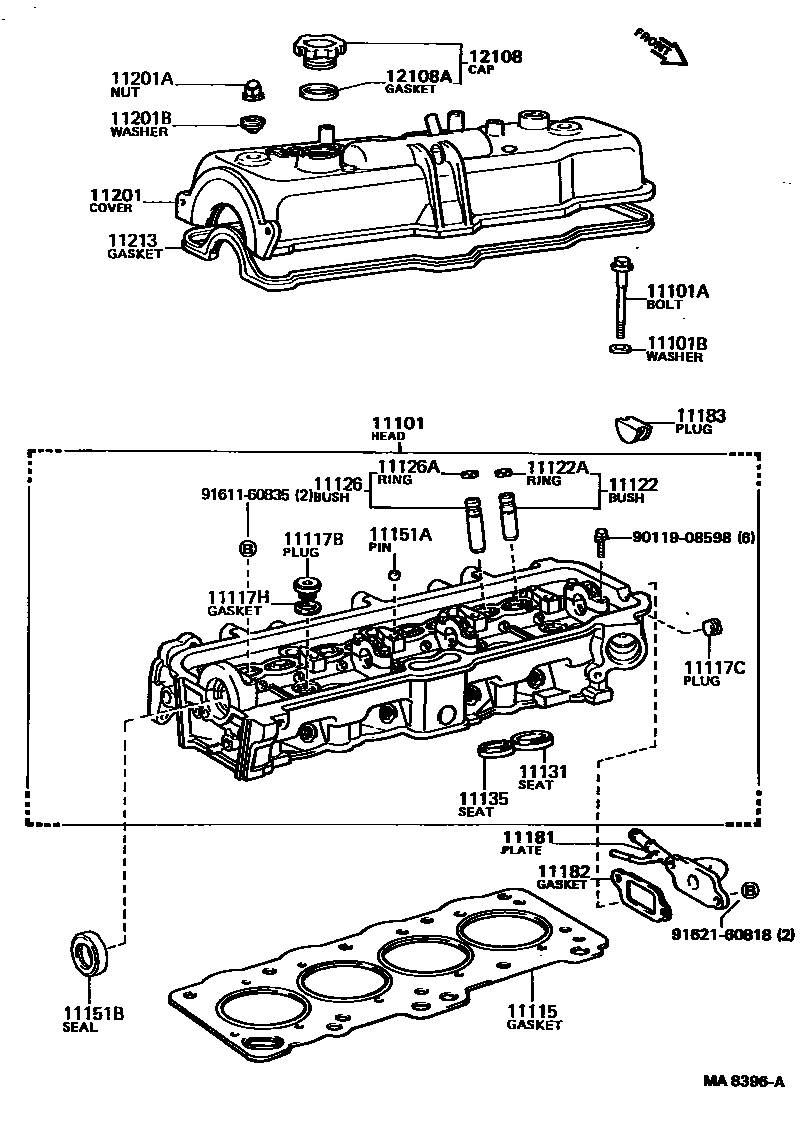

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
*10-1,25PX97.5-22
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11117BPLUG, W/HEAD TAPER SCREW, NO.2
11117CPLUG, W/HEAD TAPER SCREW, NO.3
11117HGASKET(FOR WATER HOLE)
NO.1
NO.1
NO.2
11122BUSH, INTAKE VALVE GUIDE
STD,STD
STD,STD
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
STD,STD
STD,STD
O/S 0.05,O/S 0.05
O/S 0.05,O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
STD,STD
O/S 0.03,O/S 0.03
O/S 0.03,O/S 0.03
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=8,OD=11
11151BSEAL, OIL(FOR CAMSHAFT SETTING)
sub90311-35022
11181PLATE, CYLINDER HEAD, REAR
11183PLUG, SEMICIRCULAR
11201COVER SUB-ASSY, CYLINDER HEAD
LH
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
RH
LH
LH
12108AGASKET(FOR OIL FILLER CAP)
9011908598
main90119-08598
9161160835
main91611-60835
9162160818
main91621-60818
