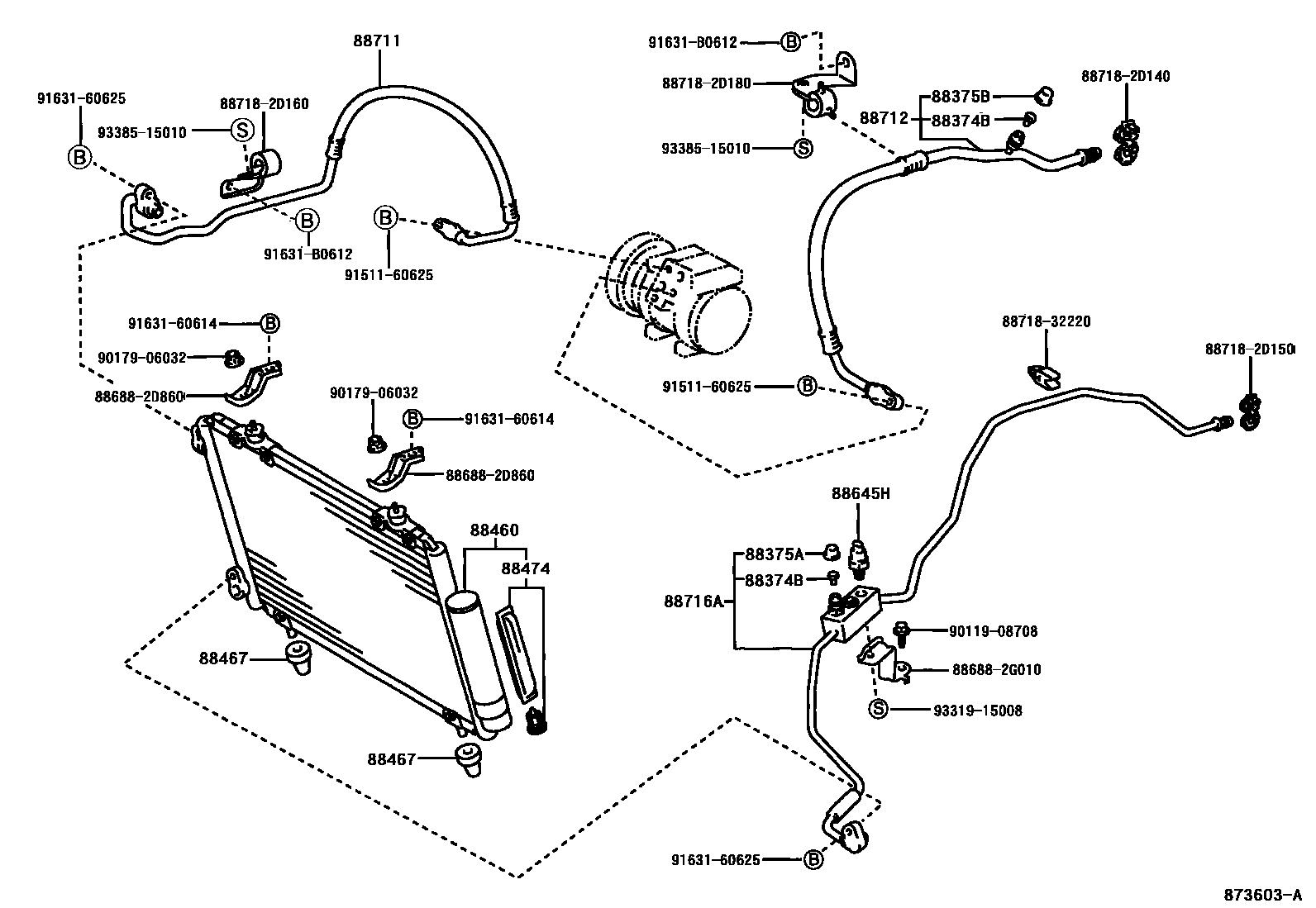

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1MAKER OPTION 0002 1MAKER OPTION 0003 1DEALER OPTION 0004 1DEALER OPTION 0005 1O-RING

88374BVALVE, SERVICE, NO.1

main88374-30010iZZT23#199908-200208

88375ACAP, SERVICE VALVE (FOR COOLER PIPE)

main88375-30280iZZT23#199908-200208

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZZT23#199908-200208

88460CONDENSER ASSY, COOLER

main88460-20560iZZT23#199908-200208

main88460-20600iZZT23#200208-200507

88467CUSHION, COOLER CONDENSER, NO.1

main88467-20190×2iZZT23#200006-200208

main88467-32020×2iZZT23#199908-200006

88474DRYER, COOLER

main88474-17010iZZT23#200208-200507

main88474-47010iZZT23#199908-200208

88645HSWITCH, PRESSURE NO.1

main88645-60030iZZT23#199908-200208

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88703-20240iZZT230200208-200507

main88703-20250iZZT231200308-200507

main88711-2B380iZZT23#199908-200208

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88704-20500iZZT23#200208-200507

main88712-2D210iZZT23#199908-200208

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88706-20230iZZT23#200208-200507

MAKER OPTION

sub88688-2G010

sub93319-15008

main88706-20250iZZT230200208-200507

DEALER OPTION

sub88688-2G010

sub93319-15008

main88716-2D580iZZT23#199908-200208

MAKER OPTION

main88716-2D620iZZT230199908-200208

DEALER OPTION

886882D860BRACKET, COOLER DIAPHRAGM

main88688-2D860

886882G010BRACKET, COOLER DIAPHRAGM

main88688-2G010

887182D140PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D140

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

887182D160PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D160

887182D180PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D180

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9011908708

main90119-08708

9017906032

main90179-06032

9151160625

main91511-60625

9163160614

main91631-60614

9163160625

main91631-60625

91631B0612

main91631-B0612

9331915008

main93319-15008

9338515010

main93385-15010

25 parts on this diagram · 5 diagrams in section
