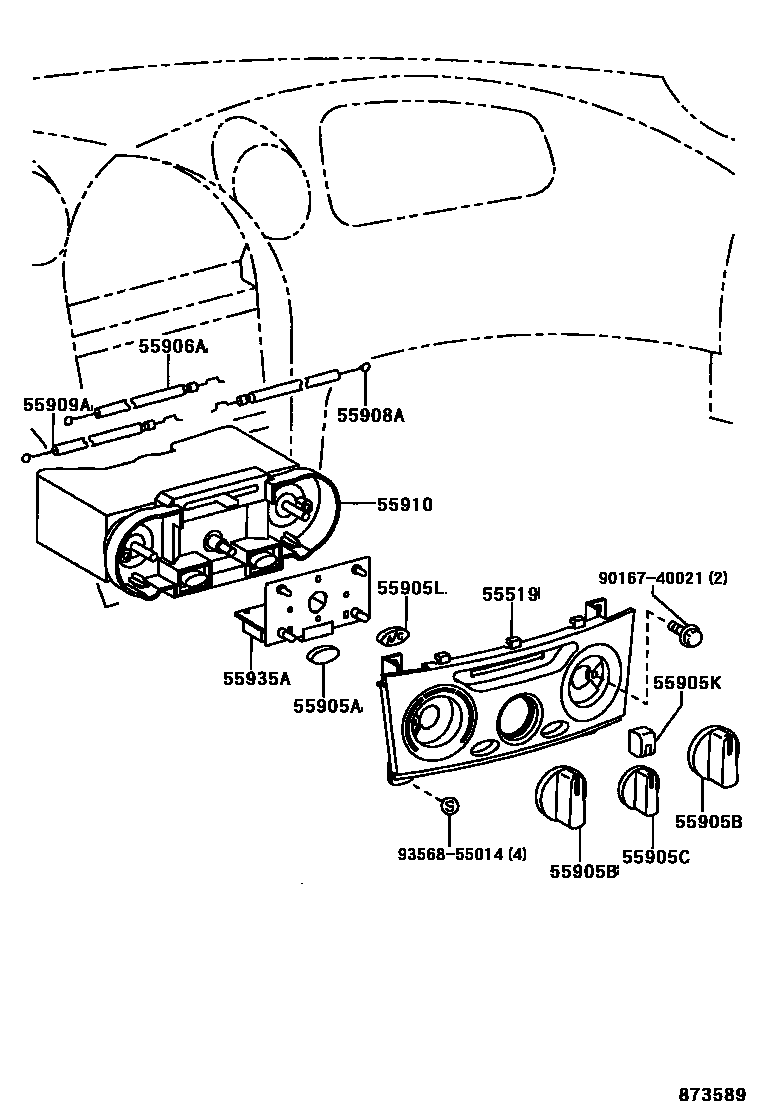

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1AIR DUCT 0003 1SENSOR

55519PLATE, HEATER CONTROL NAME

main55519-20340iZZT23#199908-200208

sub55519-20360

main55519-20360iZZT23#200208-200408

main55519-20370iZZT23#200408-200507

sub55519-20360

55905AKNOB, HEATER CONTROL

main55905-2B740iZZT23#199908-200208

main55905-2B830iZZT23#200208-200507

55905BKNOB, HEATER CONTROL, NO.2

main55905-2B080iZZT23#199908-200208

sub55905-17090

main55905-2B750iZZT23#200208-200507

sub55905-17090

55905CKNOB, HEATER CONTROL, NO.3

main55905-2B090iZZT23#199908-200208

sub55905-2B760

main55905-2B760iZZT23#200208-200507

55905KKNOB, HEATER CONTROL, NO.4

main55905-2B700iZZT23#199908-200208

sub55905-2B790

main55905-2B790iZZT23#200208-200507

55905LKNOB, HEATER CONTROL, NO.5

main55905-2B720iZZT23#199908-200208

main55905-2B810iZZT23#200208-200507

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-20330iZZT23#199908-200507

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-20200iZZT23#199908-200507

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-20270iZZT23#199908-200507

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-20720iZZT230199908-200208

main55910-20750iZZT23#199908-200208

W(MANUAL AIR CONDITIONER)

main55910-20770iZZT23#200208-200507

W(MANUAL AIR CONDITIONER)

main55910-20790iZZT230200208-200507

55935ACIRCUIT, CENTER CLUSTER MODULE

main84020-20050iZZT23#199908-200208

main84020-20090iZZT23#200208-200507

9016740021

main90167-40021

9356855014

main93568-55014

13 parts on this diagram · 3 diagrams in section
