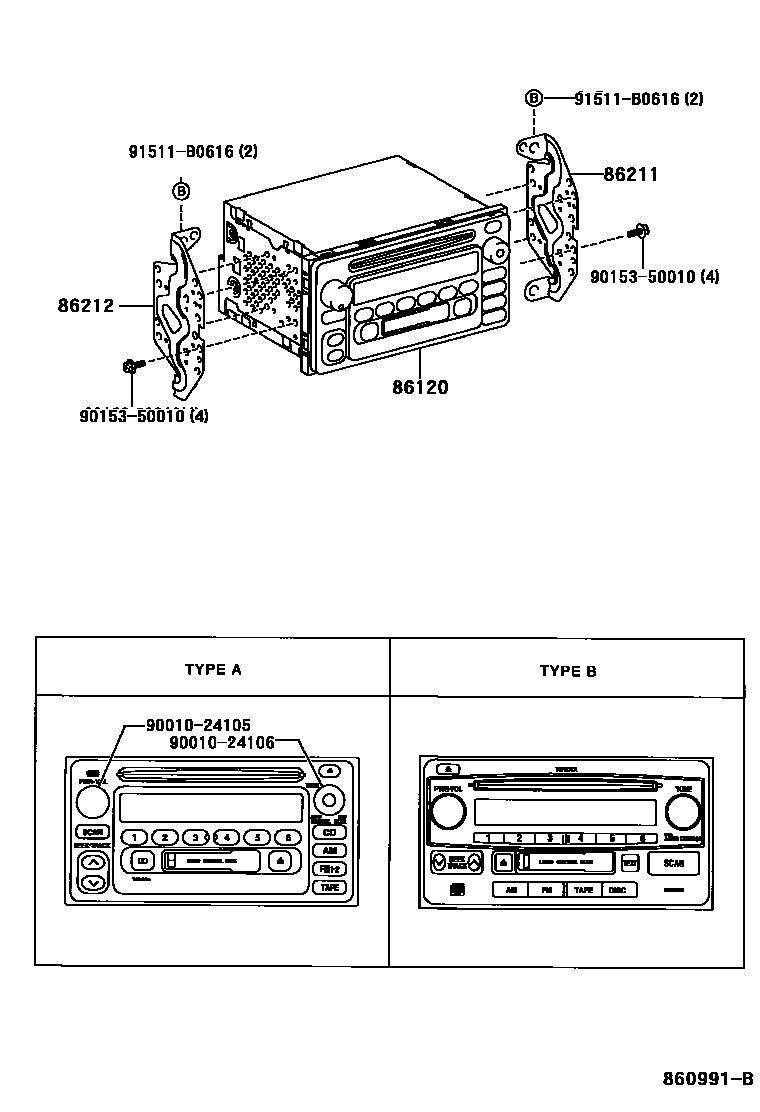

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1W/O(RADIO) 0004 1

86120RECEIVER ASSY, RADIO

main86120-20A10iZZT23#200408-200507

MATSUSHITA,ID=A51820,TYPE C:REFER ILLUST.

main86120-20A20iZZT231200408-200507

MATSUSHITA,ID=A56842,TYPE D:REFER ILLUST.

main86120-2B680iZZT23#199908-200208

MATSUSHITA,ID=A56814,TYPE A:REFER TO ILLUSTRATION & W(6 SPEAKER)

main86120-2B690iZZT23#199908-200208

FUJITSU TEN,ID=16816,TYPE A:REFER TO ILLUSTRATION & W(8 SPEAKER)

main86120-2B750iZZT23#200208-200304

FUJITSU TEN,ID=16834,TYPE B:REFER ILLUST.

sub86120-2B751

main86120-2B751iZZT23#200304-200408

FUJITSU TEN,ID=16846,TYPE B:REFER ILLUST.

main86120-2B760iZZT23#200208-200304

FUJITSU TEN,ID=16830,TYPE B:REFER ILLUST.

sub86120-2B761

main86120-2B761iZZT23#200304-200408

FUJITSU TEN,ID=16844,TYPE B:REFER ILLUST.

main86120-42090iZZT230200408-200507

MATSUSHITA,ID=A51805,TYPE E:REFER ILLUST.

86211BRACKET, RADIO, NO.1

main86211-20410iZZT23#199908-200507

86212BRACKET, RADIO, NO.2

main86212-20400iZZT23#199908-200507

9001024105

main90010-24105

9001024106

main90010-24106

9015350010

main90153-50010

91511B0616

main91511-B0616

7 parts on this diagram · 4 diagrams in section
