REAR WIPER

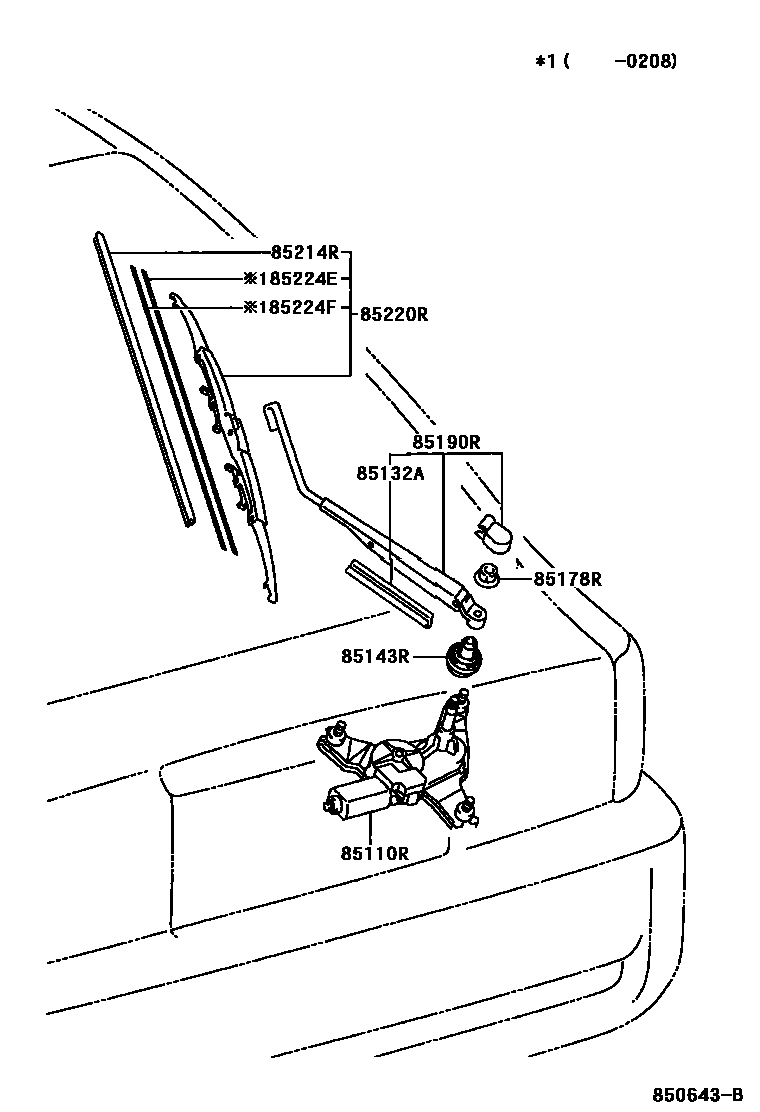

Parts diagram

85110RMOTOR ASSY, REAR WIPER

main85130-20780i199908-200507

85132ACOVER, REAR WIPER SHAFT

main85132-20740i200003-200507

85143RGROMMET, REAR WIPER MOTOR

main85143-20700i199908-200507

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06158i199908-200507

85190RARM ASSY, REAR WIPER

main85241-20120i199908-200507

85214RRUBBER, REAR WIPER

main85214-32080i199908-200507

85220RBLADE ASSY, REAR WIPER

main85242-32040i199908-200507

85224EPLATE, REAR WIPER RUBBER BACKING, NO.1

main85224-20360i199908-200208

85224FPLATE, REAR WIPER RUBBER BACKING, NO.2

main85224-20360i199908-200208

9 parts on this diagram · 1 diagram in section
