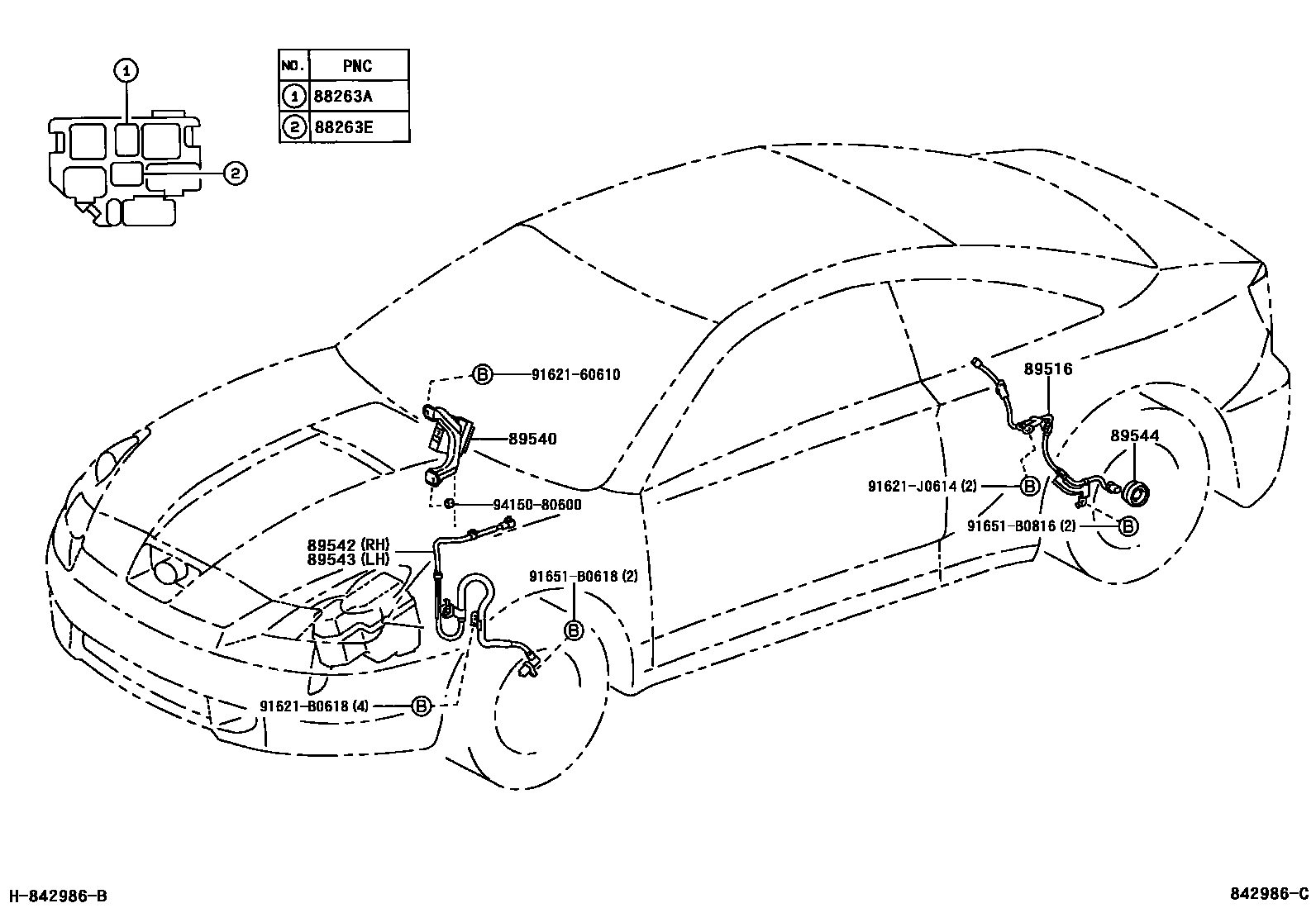

ABS & VSC

88263ARELAY, SKID CONTROL

main88263-32070iZZT23#¥2,810199908-200208

88263ERELAY, SKID CONTROL NO.2

main88263-32080iZZT23#¥2,840199908-200208

89516WIRE, SKID CONTROL SENSOR

main89516-20010iZZT23#¥2,630199908-200507

RH

main89516-20020iZZT23#¥2,630199908-200507

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-20460iZZT23#¥47,600199908-200008

sub89540-20461¥47,600

main89540-20461iZZT23#¥47,600200008-200109

sub89540-20462¥47,600

main89540-20462iZZT23#¥47,600200109-200208

89542SENSOR, SPEED, FRONT RH

main89542-20140iZZT23#¥21,700199908-200507

89543SENSOR, SPEED, FRONT LH

main89543-20140iZZT23#¥21,700199908-200507

89544SENSOR, SKID CONTROL

main89544-20010iZZT23#¥13,300200208-200507

NSK

main89544-32030iZZT23#¥13,500199908-200310

TOYOTA

sub89544-32040¥13,300

main89544-32040iZZT23#¥13,300200301-200507

KOYO

main89544-47010iZZT23#¥13,500199908-200208

NSK

sub89544-20010¥13,300

9162160610

main91621-60610¥100

91621B0618

main91621-B0618¥110

91621J0614

main91621-J0614¥110

91651B0618

main91651-B0618¥100

91651B0816

main91651-B0816¥160

9415080600

main94150-80600¥60

13 parts on this diagram · 1 diagram in section
