SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE ROOM 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SW. 0007 1DOOR,ROOF & FLOOR

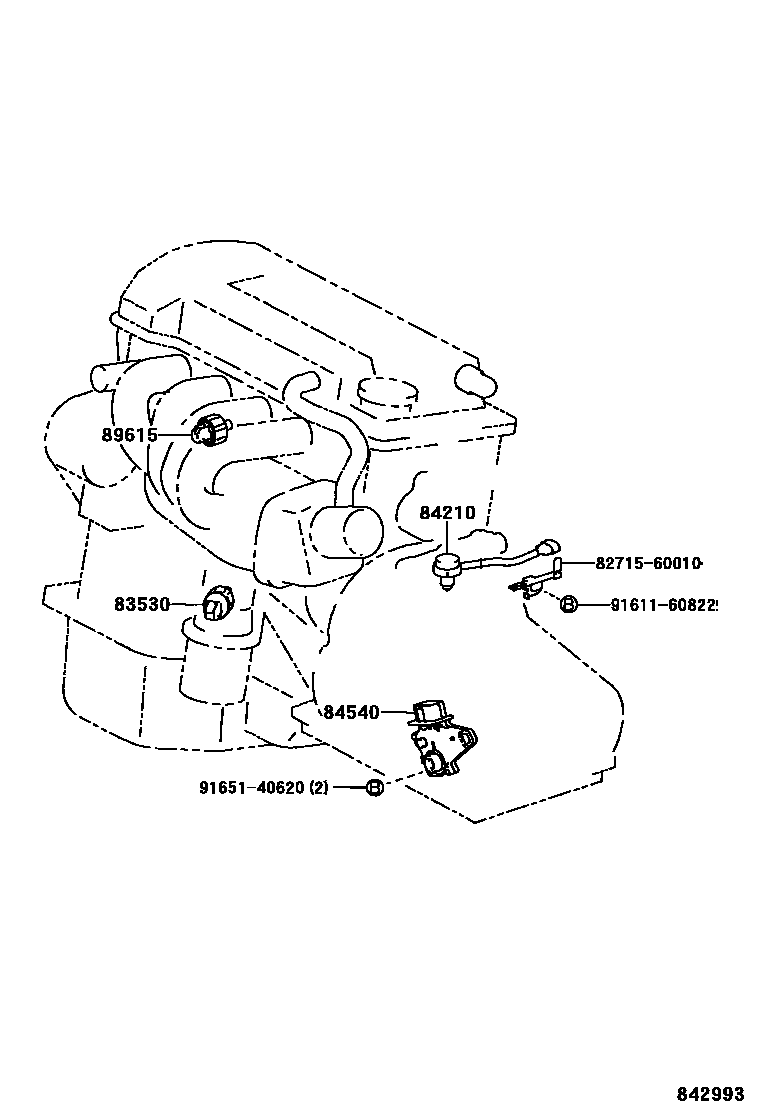

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZZT23#200208-200507

DENSO

main83530-60020iZZT23#199908-200208

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-14040iZZT23#..MTM199908-200208

84540SWITCH ASSY, NEUTRAL START

main84540-32110iZZT231..4FC199908-200208

main84540-52050iZZT230..4FC200208-200507

89615SENSOR, KNOCK CONTROL

main89615-12090iZZT231199908-200108

main89615-12120iZZT230199908-200208

main89615-20090iZZT231200108-200208

8271560010BRACKET,WIRING HARNESS CLAMP

main82715-60010

9161160822

main91611-60822

9165140620

main91651-40620

7 parts on this diagram · 7 diagrams in section
