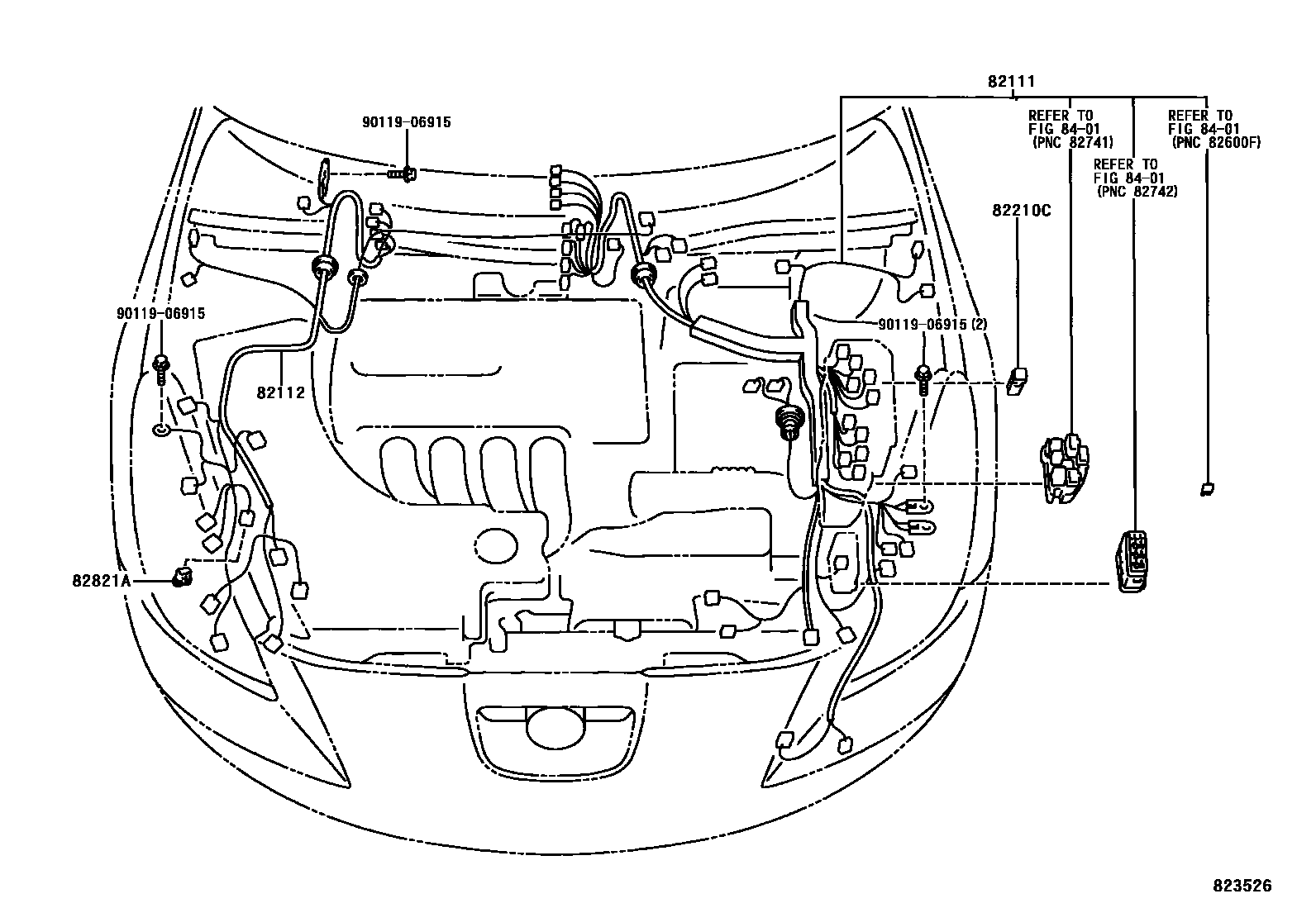

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL)
W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL)
W(CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL)
W(CRUISE CONTROL) OR W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL) & W(FRONT FOG LAMP & DRIVING LAMP)
W(ABS)
W(ABS & CRUISE CONTROL)
W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(ABS & FRONT FOG LAMP & DRIVING LAMP)
W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(ABS & FRONT FOG LAMP & DRIVING LAMP)
W(ABS)
W(ABS & CRUISE CONTROL)
W(ABS)
W(ABS & CRUISE CONTROL)
W(ABS & CRUISE CONTROL & FRONT FOG LAMP & DRIVING LAMP)
W(ABS & FRONT FOG LAMP & DRIVING LAMP)
W(ABS)
W(ABS) & W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL) & W(ABS)
W(CRUISE CONTROL) & W(ABS) & W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL) & W(DISCHARGE HEADLAMP) & W(FRONT FOG LAMP & DRIVING LAMP)
W(DISCHARGE HEADLAMP)
W(CRUISE CONTROL) & W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP) & W(FRONT FOG LAMP & DRIVING LAMP)
W(ABS & DISCHARGE HEADLAMP)
W(ABS) & W(DISCHARGE HEADLAMP) & W(FRONT FOG LAMP & DRIVING LAMP)
W(CRUISE CONTROL) & W(ABS) & W(DISCHARGE HEADLAMP)
W(CRUISE CONTROL) & W(ABS) & W(DISCHARGE HEADLAMP) & W(FRONT FOG LAMP & DRIVING LAMP)
W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
W(ABS)
W(ABS)
W(ABS & DISCHARGE HEADLAMP)
W(ABS & DISCHARGE HEADLAMP)
82112WIRE, ENGINE ROOM, NO.2
W(ABS) OR W(CRUISE CONTROL) OR W(FRONT FOG LAMP & DRIVING LAMP) OR W(REAR WIPER)
W(ABS) OR W(CRUISE CONTROL) OR W(FRONT FOG LAMP & DRIVING LAMP) OR W(REAR WIPER)
W(DISCHARGE HEADLAMP)
W(DISCHARGE HEADLAMP)
82210CFUSIBLE LINK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,FEMALE,RED,32VDC
82821ACOVER, CONNECTOR
8401SWITCH & RELAY & COMPUTER
9011906915
main90119-06915
6 parts on this diagram · 9 diagrams in section
