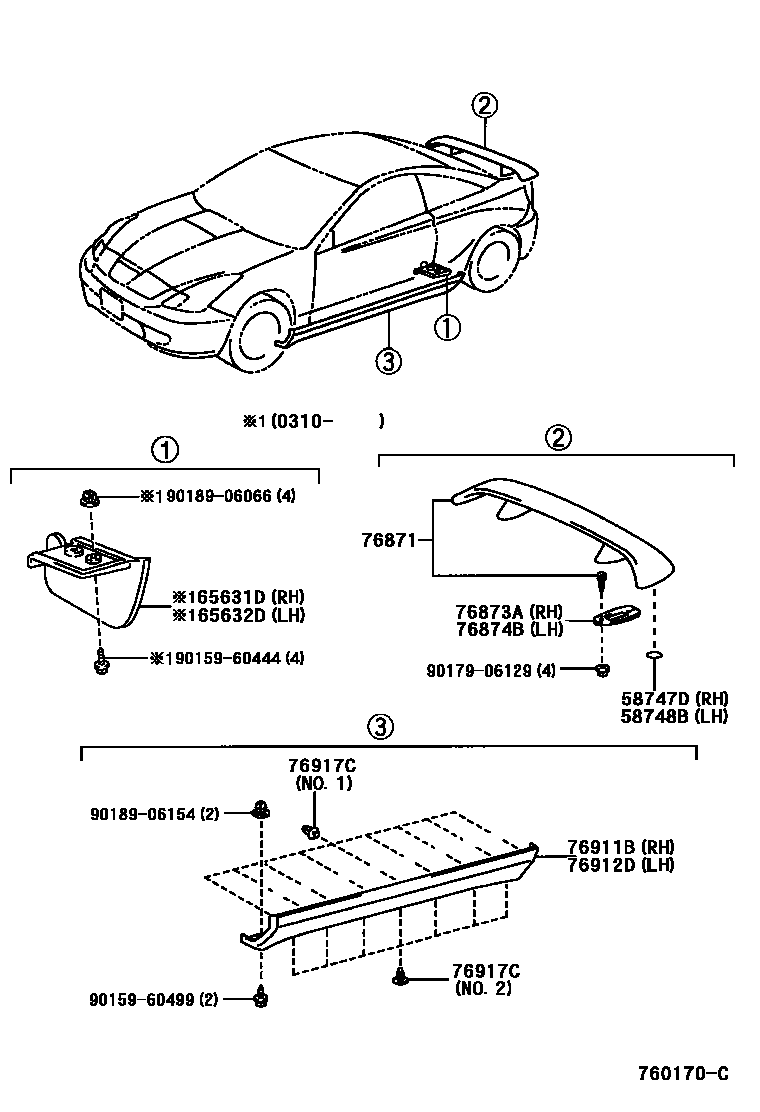

MUDGUARD & SPOILER

58747DPROTECTOR, QUARTER PANEL, REAR RH

main58747-20030iZZT23#199908-200507

58748BPROTECTOR, QUARTER PANEL, REAR LH

main58747-20030iZZT23#199908-200507

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-20020iZZT23#200310-200507

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-20020iZZT23#200310-200507

76871SPOILER, REAR

main76871-20918iZZT23#199908-200507

76873APROTECTOR, REAR SPOILER, RH

main76873-20220iZZT23#199908-200507

76874BPROTECTOR, REAR SPOILER, LH

main76874-20210iZZT23#199908-200507

76911BMUDGUARD, SIDE, RH

main76911-20060-B0iZZT23#199908-200208

GRAY,040 ,1D0

main76911-20060-B0iZZT23#200208-200507

GRAY,040 ,1E7

main76911-20060-C0iZZT23#200108-200208

BLACK,202 ,210 ,3P0 ,576 ,8M6

main76911-20060-C0iZZT23#200208-200507

BLACK,202 ,210 ,3P0 ,576 ,8M6 ,8N0

main76911-20060-C0iZZT23#199908-200108

BLACK,202 ,210 ,3P0 ,8M6

76912DMUDGUARD, SIDE, LH

main76912-20060-B0iZZT23#200208-200507

GRAY,040 ,1E7

main76912-20060-B0iZZT23#199908-200208

GRAY,040 ,1D0

main76912-20060-C0iZZT23#200208-200507

BLACK,202 ,210 ,3P0 ,576 ,8M6 ,8N0

main76912-20060-C0iZZT23#199908-200108

BLACK,202 ,210 ,3P0 ,8M6

main76912-20060-C0iZZT23#200108-200208

BLACK,202 ,210 ,3P0 ,576 ,8M6

76917CCLIP, QUARTER PANEL MUDGUARD

main90467-08185iZZT23#199908-200507

NO.2

main90467-10162iZZT23#199908-200507

NO.1

9015960444

main90159-60444

9015960499

main90159-60499

9017906129

main90179-06129

9018906066

main90189-06066

9018906154

main90189-06154

15 parts on this diagram · 1 diagram in section
