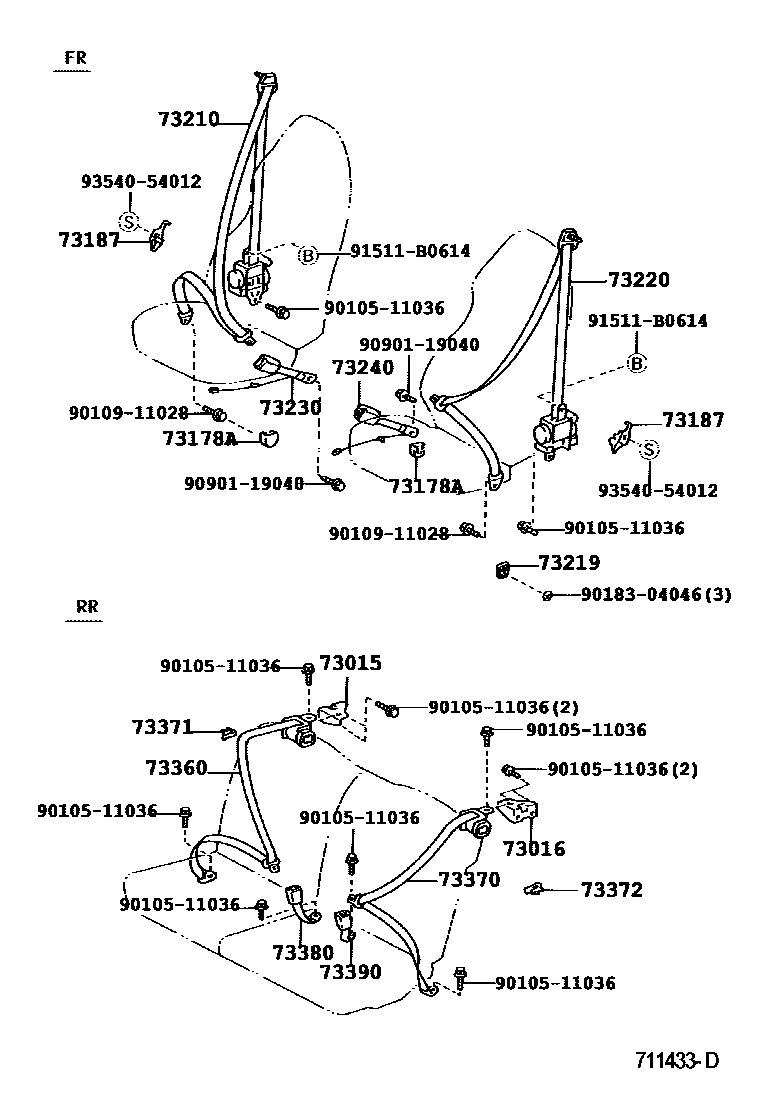

SEAT BELT & CHILD RESTRAINT SEAT
73015BRACKET SUB-ASSY, BELT OUTER ANCHOR, RH
73016BRACKET SUB-ASSY, BELT OUTER ANCHOR, LH
73178ACAP, SEAT BELT ANCHOR COVER
73187GUIDE, FRONT SEAT SHOULDER BELT
73210BELT ASSY, FRONT SEAT OUTER, RH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
73219STOPPER, TONGUE PLATE
73220BELT ASSY, FRONT SEAT OUTER, LH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
AMETHYST,TRIM20,21,22,23
AMETHYST,TRIM2#
73240BELT ASSY, FRONT SEAT INNER, LH
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
73371HANGER, REAR SEAT SHOULDER BELT, RH
73372HANGER, REAR SEAT SHOULDER BELT, LH
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
BLACK,TRIM20,21,22,23
BLACK,TRIM2#
9010511036
main90105-11036
9010911028
main90109-11028
9018304046
main90183-04046
9090119040
main90901-19040
91511B0614
main91511-B0614
9354054012
main93540-54012
21 parts on this diagram · 1 diagram in section
