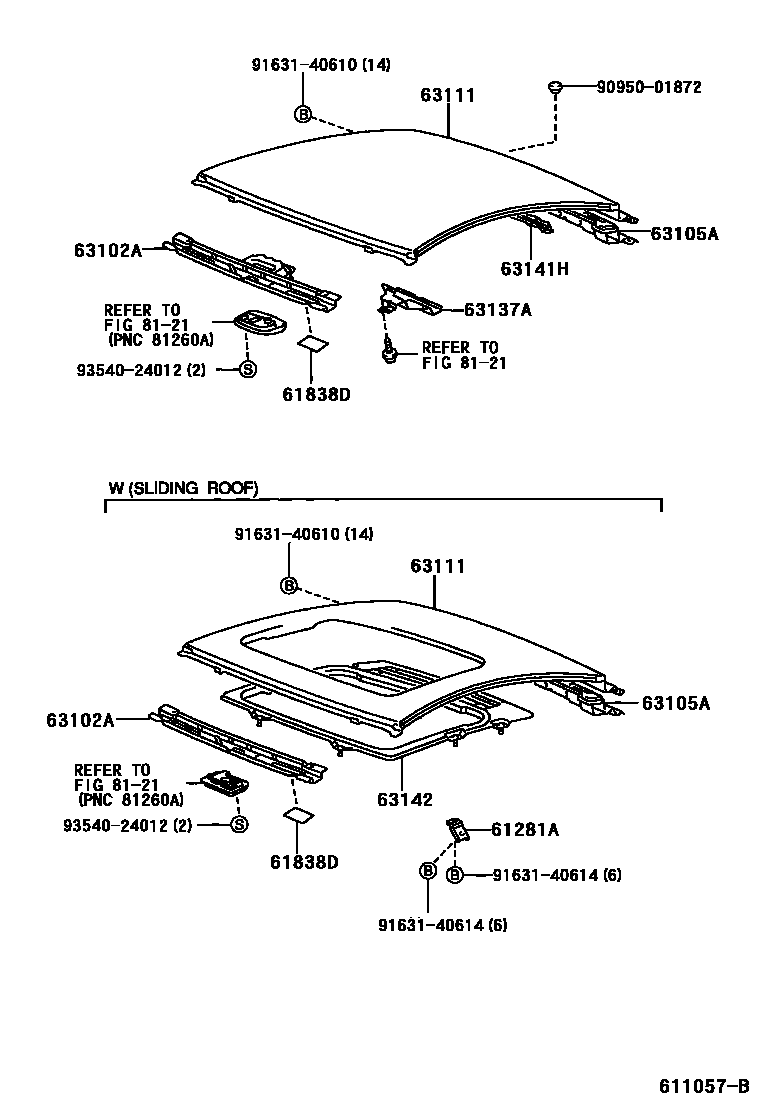

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1SLIDING ROOF 0003 1

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-20090iZZT23#199908-200507

61838DPLATE, NOISE CONTROL, NO.5

main61826-22020iZZT23#199908-200507

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20320iZZT23#199908-200507

main63132-20250iZZT23#199908-200507

W(SLIDING ROOF)

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20110iZZT23#199908-200507

63111PANEL, ROOF

main63111-20630iZZT23#199908-200507

main63111-20640iZZT23#199908-200507

W(SLIDING ROOF)

63137ABRACKET, DOME LAMP, NO.1

main63137-20120iZZT23#199908-200507

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20230iZZT23#199908-200507

63142REINFORCEMENT, ROOF PANEL, NO.2

main63104-20080iZZT23#199908-200507

8121

9095001872

main90950-01872

9163140610

main91631-40610

9163140614

main91631-40614

9354024012

main93540-24012

13 parts on this diagram · 3 diagrams in section
