SIDE MEMBER

57248BBRACKET, FLEXIBLE HOSE, RH

main57249-32040i199908-200507

57249DBRACKET, FLEXIBLE HOSE, LH

main57248-32010i199908-200507

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-20140i199908-200507

sub61108-20130

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-20140i199908-200507

sub61109-20900

61131CPILLAR, FRONT BODY, OUTER RH

main61131-20530i199908-200507

61132BPILLAR, FRONT BODY, OUTER LH

main61132-20470i199908-200507

61161PILLAR, FRONT BODY, UPPER INNER RH

main61161-20270i199908-200507

61162PILLAR, FRONT BODY, UPPER INNER LH

main61042-20030i199908-200507

61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER

main61173-20110i199908-200507

61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH

main61174-20110i199908-200507

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-20040i199908-200507

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-20040i199908-200507

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-20360i199908-200507

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-20470i199908-200507

61343APILLAR, CENTER BODY, INNER RH

main61343-20190i199908-200507

61344APILLAR, CENTER BODY, INNER LH

main61344-20190i199908-200507

61397BRETAINER, CENTER BODY PILLAR

main61397-20050i199908-200507

61411PANEL, ROCKER, OUTER RH

main61401-20410i199908-200507

61412PANEL, ROCKER, OUTER LH

main61402-20410i199908-200507

61413CREINFORCEMENT, ROCKER PANEL, NO.2 RH

main61413-20130i199908-200507

61414CREINFORCEMENT, ROCKER PANEL, NO.2 LH

main61414-20140i199908-200507

61431BREINFORCEMENT, ROCKER PANEL, NO.6 RH

main61431-20030i199908-200507

61432BREINFORCEMENT, ROCKER PANEL, NO.6 LH

main61432-20030i199908-200507

61433AREINFORCEMENT, ROCKER PANEL, OUTER RH

main61433-20020i199908-200507

61434AREINFORCEMENT, ROCKER PANEL, OUTER LH

main61434-20020i199908-200507

61607EPANEL, QUARTER WHEEL HOUSE, INNER RH

main61633-20908i199908-200507

61608DPANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-20930i199908-200507

61611PANEL, QUARTER, RH

main61611-2B540i199908-200208

sub61611-2B570

main61611-2B570i200208-200507

W(FIXED ANTENNA)

main61611-2B580i200208-200507

main61611-2B590i200208-200507

CANADA SPEC OR VENEZUELA & SOUTH AMERICA SPEC

61612PANEL, QUARTER, LH

main61602-2D420i200208-200507

CANADA OR VENEZUELA SPEC

main61602-2D490i199908-200507

61613EPANEL, QUARTER, INNER RH

main61613-20170i199908-200507

61614EPANEL, QUARTER, INNER LH

main61614-20170i199908-200507

61617APANEL, QUARTER INNER, REAR RH

main61617-20160i199908-200507

61618APANEL, QUARTER, INNER REAR LH

main61618-20180i199908-200507

61621DTROUGH, BACK DOOR OPENING, RH

main61621-20901i199908-200507

61622DTROUGH, BACK DOOR OPENING, LH

main61622-20901i199908-200507

61627EEXTENSION, QUARTER PANEL, REAR LOWER RH

main61627-20901i199908-200208

61628DEXTENSION, QUARTER PANEL, REAR LOWER LH

main61628-20901i199908-200507

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-20320i199908-200507

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-20900i199908-200507

61655BGUSSET, QUARTER WHEEL HOUSE, INNER RH

main61655-20040i199908-200507

61656AGUSSET, QUARTER WHEEL HOUSE, INNER LH

main61656-20020i199908-200507

61693CRETAINER, REAR SEATBACK SET, RH

main61691-20040i199908-200507

61693DBRACKET, REAR WHEEL OPENING, NO.1

main61693-21010i199908-200507

61694CRETAINER, REAR SEATBACK SET, LH

main61691-20040i199908-200507

61697DHOUSING, QUARTER PANEL END, RH

main61697-20070i199908-200507

61698DHOUSING, QUARTER PANEL END, LH

main61698-20070i199908-200507

61713BREINFORCE, ROOF SIDE, OUTER RH

main61713-20100i199908-200507

61714BREINFORCE, ROOF SIDE, OUTER LH

main61714-20100i199908-200507

61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH

main61743-20040i199908-200507

61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH

main61744-20040i199908-200507

61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH

main61747-20180i199908-200507

61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH

main61748-20170i199908-200507

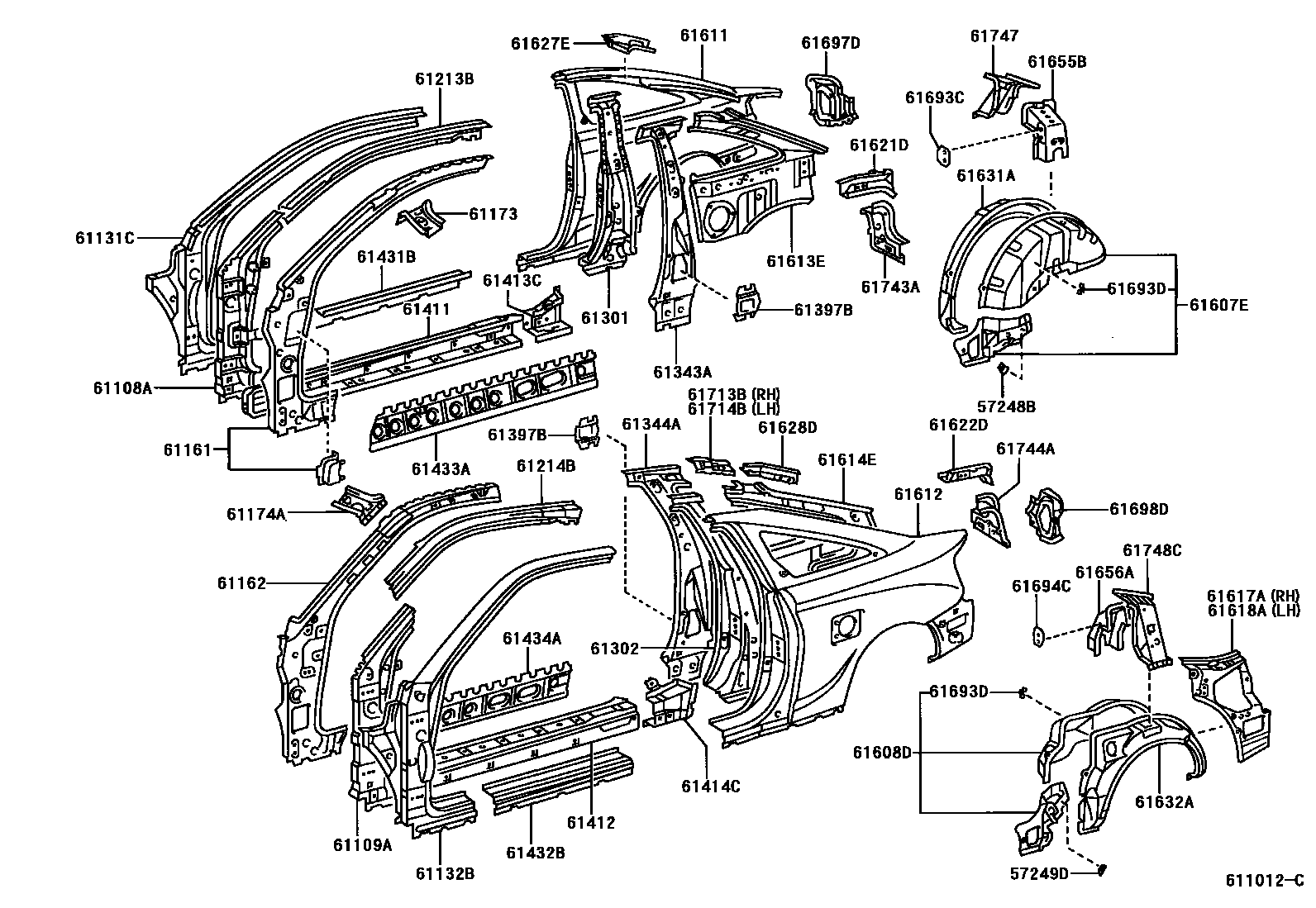

52 parts on this diagram · 2 diagrams in section
