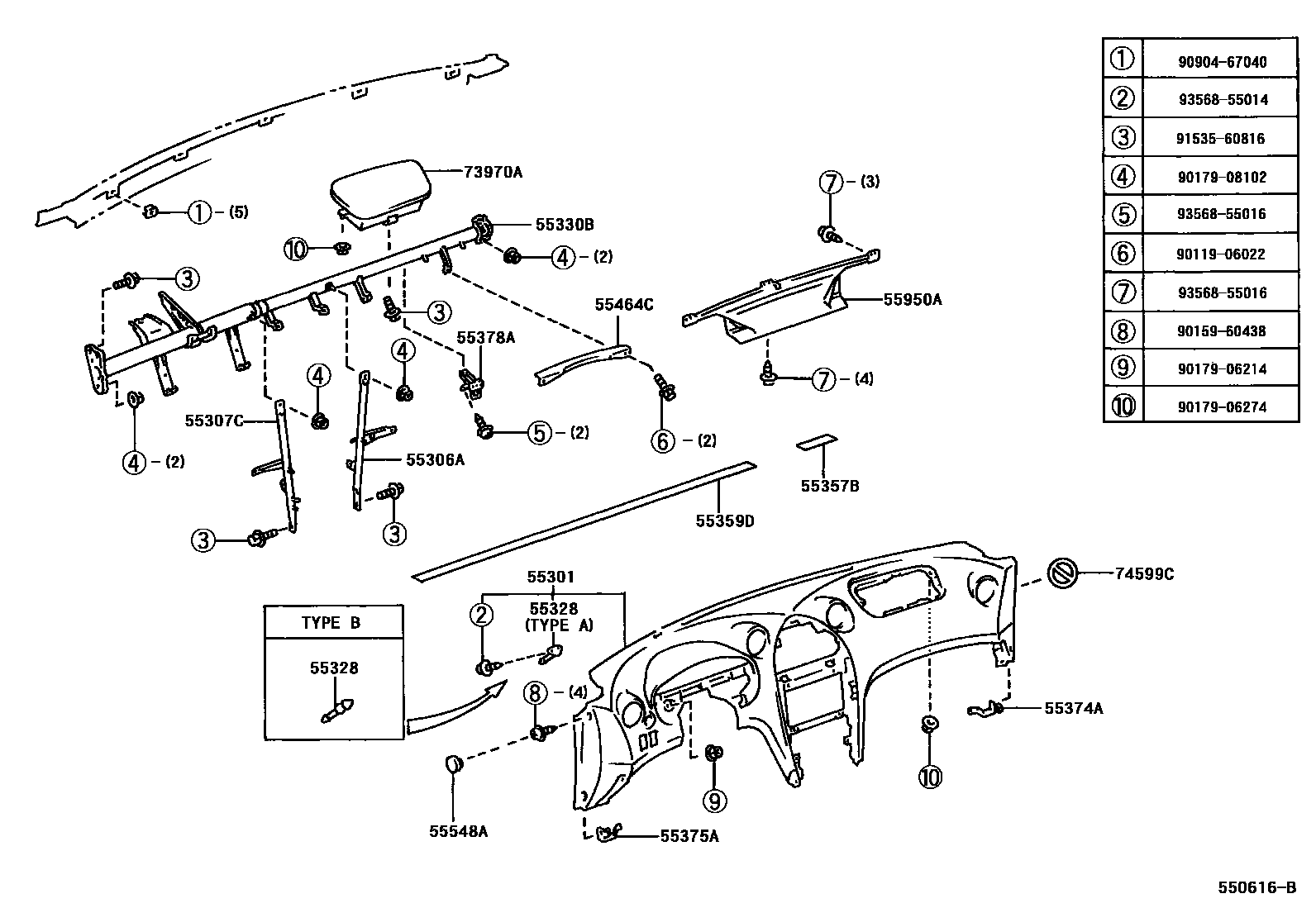

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55328PIN, INSTRUMENT PANEL, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55357BCUSHION, INSTRUMENT PANEL, NO.3
55359DCUSHION, INSTRUMENT PANEL, NO.5
55374ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, RH
55375ABRACKET, INSTRUMENT PANEL LOWER MOUNTING, LH
55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING
55464CINSERT, INSTRUMENT PANEL LOWER PAD, RH
55548ACOVER, INSTRUMENT PANEL HOLE
55950ANOZZLE ASSY, DEFROSTER
73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER
74599CLABEL, DRIVER & PASSENGER AIRBAG INFORMATION
9011906022
9015960438
9017906214
9017906274
9017908102
9090467040
9153560816
9356855014
9356855016
24 parts on this diagram · 2 diagrams in section
