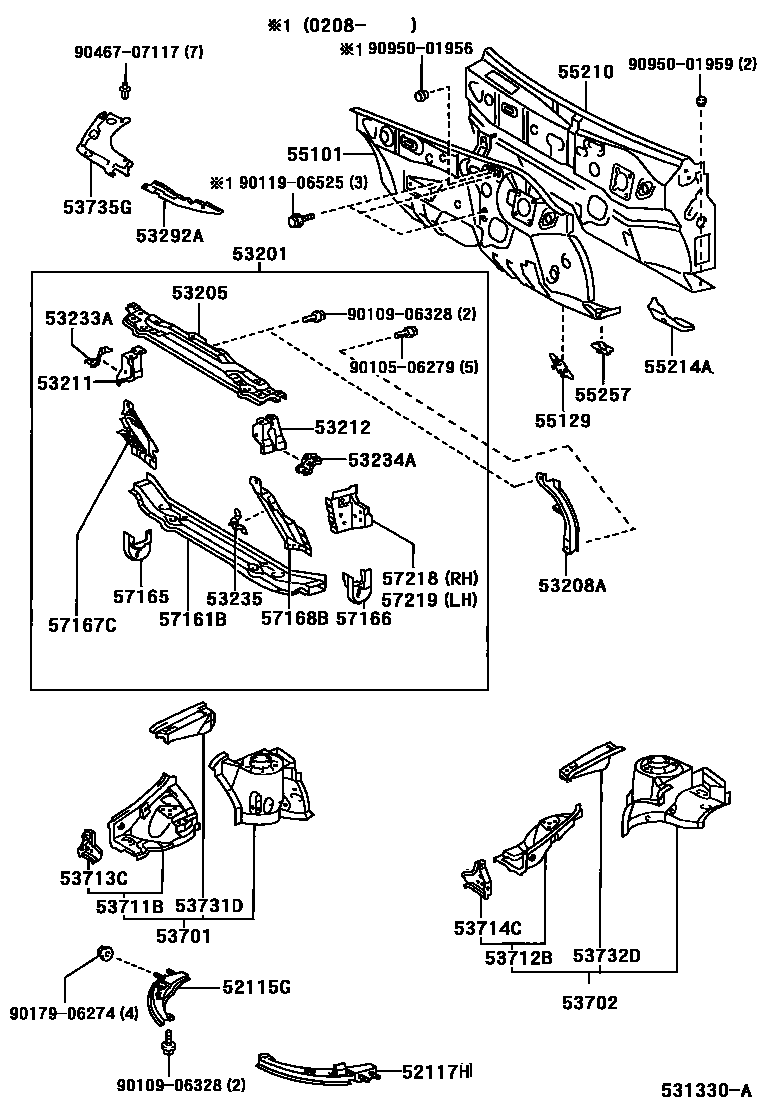

FRONT FENDER APRON & DASH PANEL
52115GRETAINER, FRONT BUMPER EXTENSION, NO.1
52117HRETAINER, FRONT BUMPER EXTENSION, NO.2
53201SUPPORT SUB-ASSY, RADIATOR
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53233ABRACKET, HEADLAMP, NO.1 RH
53234ABRACKET, HEADLAMP, NO.1 LH
53235BRACKET, HORN MOUNTING
53292ASEAL, RADIATOR SUPPORT, UPPER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53713CEXTENSION, FRONT FENDER APRON, FRONT RH
53714CEXTENSION, FRONT FENDER APRON, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
55101PANEL SUB-ASSY, DASH
W(AM/FM CASSETTE CD & 8SPEAKER)
W(AM/FM CASSETTE CD & 8SPEAKER)
W(AM/FM CASSETTE CD & 8SPEAKER)
W(AM/FM CASSETTE CD & 8SPEAKER)
55129COVER, DASH PANEL HOLE
RH
LH
55214APAD, DASH PANEL INSULATOR, NO.2
55257COVER, DASH PANEL OPENING
57161BMEMBER, FRONT CROSS, FRONT
57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH
57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH
57167CGUSSET, FRONT CROSSMEMBER SIDE, RH
57168BGUSSET, FRONT CROSSMEMBER SIDE, LH
57218GUSSET, FRONT SIDE MEMBER, NO.1
57219GUSSET, FRONT SIDE MEMBER, NO.2
9010506279
main90105-06279
9010906328
main90109-06328
9011906525
main90119-06525
9017906274
main90179-06274
9046707117
main90467-07117
9095001956
main90950-01956
9095001959
main90950-01959
39 parts on this diagram · 1 diagram in section
