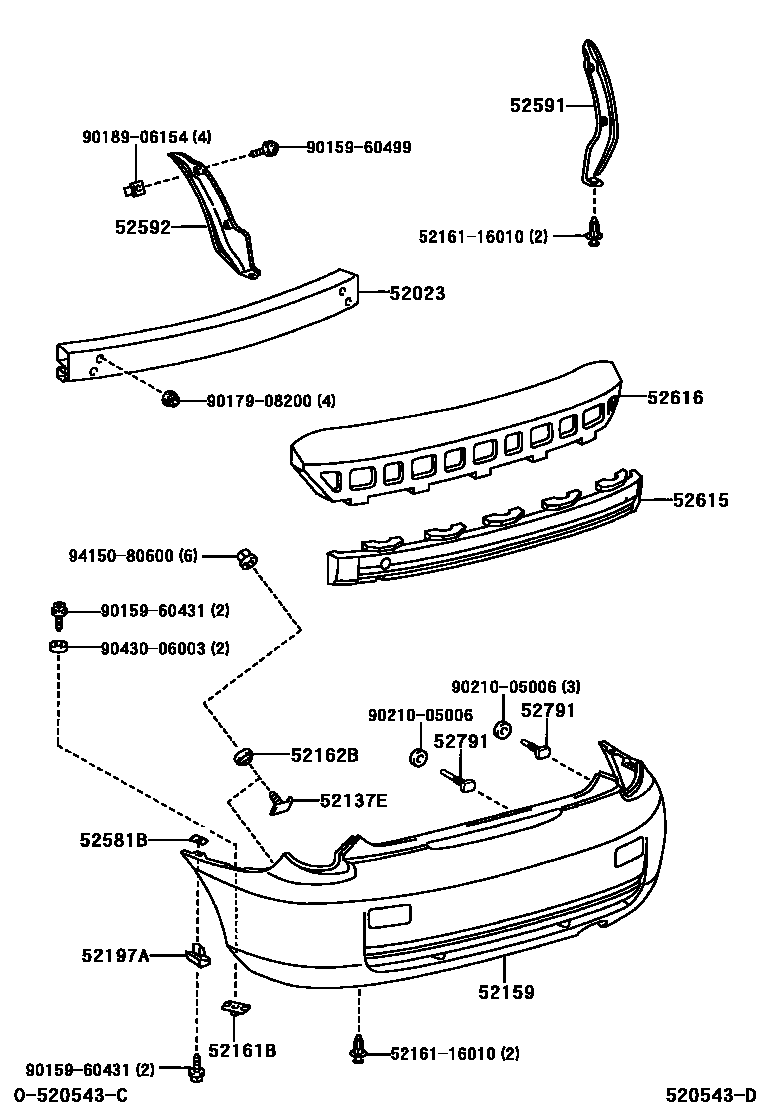

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-20380iZZT23#¥22,500199908-200507

52137EPLATE, REAR BUMPER BRACKET, NO.1

main52137-20070iZZT23#¥360199908-200507

52159COVER, REAR BUMPER

main52159-20942iZZT23#¥46,400199908-200507

52161BPIECE, REAR BUMPER

main52161-20020iZZT23#¥370199908-200507

52162BPLATE, REAR BUMPER, NO.1

main52162-12050iZZT23#¥160199908-200507

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-20010iZZT23#¥360199908-200507

52581BPROTECTOR, REAR BUMPER

main52581-20060iZZT23#¥130199908-200507

52591SEAL, REAR BUMPER SIDE, RH

main52591-20070iZZT23#¥1,070199908-200507

52592SEAL, REAR BUMPER SIDE, LH

main52592-20040iZZT23#¥1,090199908-200507

52615ABSORBER, REAR BUMPER ENERGY

main52615-20250iZZT23#¥8,400199908-200507

52616ABSORBER, REAR BUMPER ENERGY, LH

main52616-20010iZZT23#¥7,500199908-200507

52791BOLT, BUMPER MOULDING SET, NO.1

main52791-12040iZZT23#¥120200006-200507

main52791-32010iZZT23#¥160199908-200006

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010¥120

9015960431

main90159-60431¥70

9015960499

main90159-60499¥120

9017908200

main90179-08200¥180

9018906154

main90189-06154¥130

9021005006

main90210-05006¥120

9043006003

main90430-06003¥90

9415080600

main94150-80600¥60

20 parts on this diagram · 1 diagram in section
