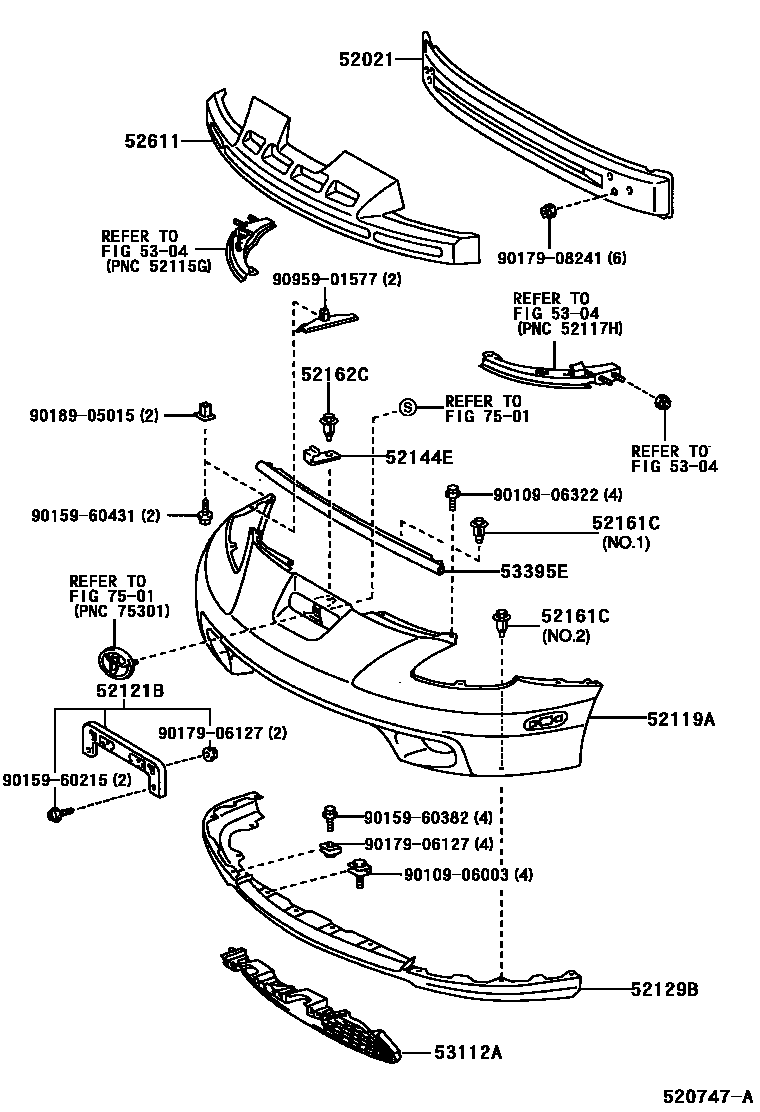

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20280iZZT23#200208-200507

52119ACOVER, FRONT BUMPER

main52119-20943iZZT23#199908-200208

main52119-20947iZZT23#200208-200507

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52114-30100iZZT23#..MTM200104

ACTION PACKAGE(USA/CANADA)

sub52114-30901

sub90159-60215

sub90179-06127

main52121-20150iZZT23#200208-200507

52129BCOVER, FRONT BUMPER, LOWER

main52129-20902iZZT23#199908-200208

main52129-20903iZZT23#200208-200507

52144ESTAY, FRONT BUMPER, CENTER

main52144-20270iZZT23#199908-200208

main52144-20280iZZT23#200208-200507

52161CPIECE, FRONT BUMPER

main52161-20010×2iZZT23#200208-200507

main90467-05063-C0×8iZZT23#199908-200108

BLACK,040 ,1D0 ,202 ,210 ,3P0 ,8M6

52162CPIECE, FRONT BUMPER

main52161-16010iZZT23#199908-200208

sub52161-0K040

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20200iZZT23#199908-200208

main52611-20230iZZT23#200208-200507

5304

53112AGRILLE, RADIATOR, LOWER

main53112-20260iZZT23#200108-200208

main53112-20270iZZT23#200208-200507

53395ESEAL, HOOD TO FRONT END PANEL

main53395-20030iZZT23#199908-200208

7501

9010906003

main90109-06003

9010906322

main90109-06322

9015960215

main90159-60215

9015960382

main90159-60382

9015960431

main90159-60431

9017906127

main90179-06127

9017908241

main90179-08241

9018905015

main90189-05015

9095901577

main90959-01577

21 parts on this diagram · 2 diagrams in section
