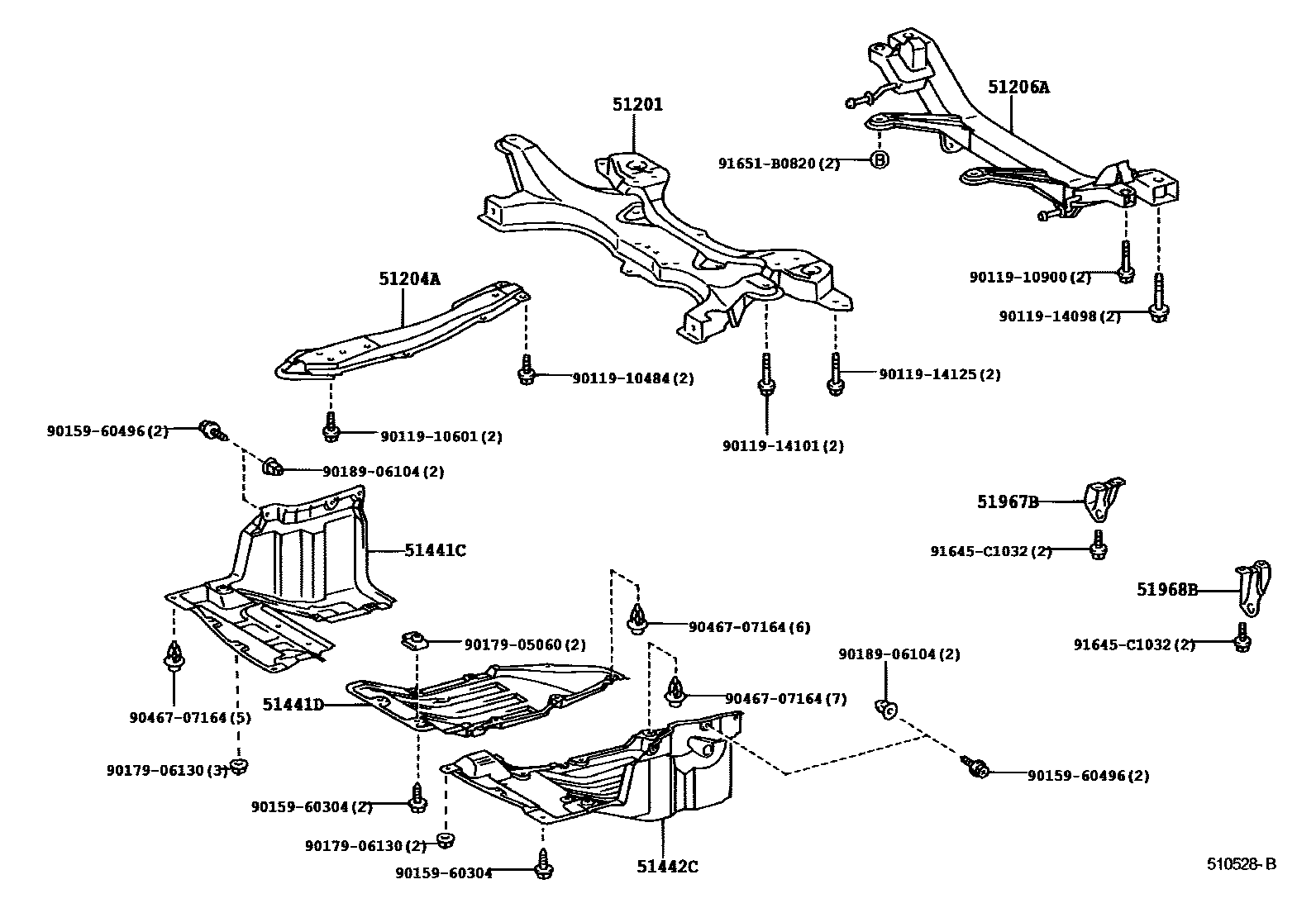

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-20350iZZT23#¥65,200199908-200303

sub51201-20351¥65,300

main51201-20351iZZT23#¥65,300200303-200507

sub51201-20352¥65,300

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-20160iZZT23#¥12,000199908-200507

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20100iZZT23#¥21,200199908-200507

sub51206-20130¥21,200

51441CCOVER, ENGINE UNDER, RH

main51408-20090iZZT23#¥7,500199908-200507

51441DCOVER, ENGINE UNDER

main51405-20060iZZT23#¥9,600199908-200507

51442CCOVER, ENGINE UNDER, LH

main51409-20120iZZT23#¥12,800199908-200507

51967BHOOK, TRANSPORT, REAR RH

main51967-20200iZZT23#¥2,070199908-200507

51968BHOOK, TRANSPORT, REAR LH

main51968-20140iZZT23#¥2,490199908-200507

9011910484

main90119-10484¥260

9011910601

main90119-10601¥90

9011910900

main90119-10900¥220

9011914098

main90119-14098¥400

9011914101

main90119-14101¥590

9011914125

main90119-14125¥310

9015960304

main90159-60304¥120

9015960496

main90159-60496¥60

9017905060

main90179-05060¥70

9017906130

main90179-06130¥120

9018906104

main90189-06104¥90

9046707164

main90467-07164¥120

91645C1032

main91645-C1032¥200

91651B0820

main91651-B0820¥160

22 parts on this diagram · 1 diagram in section
