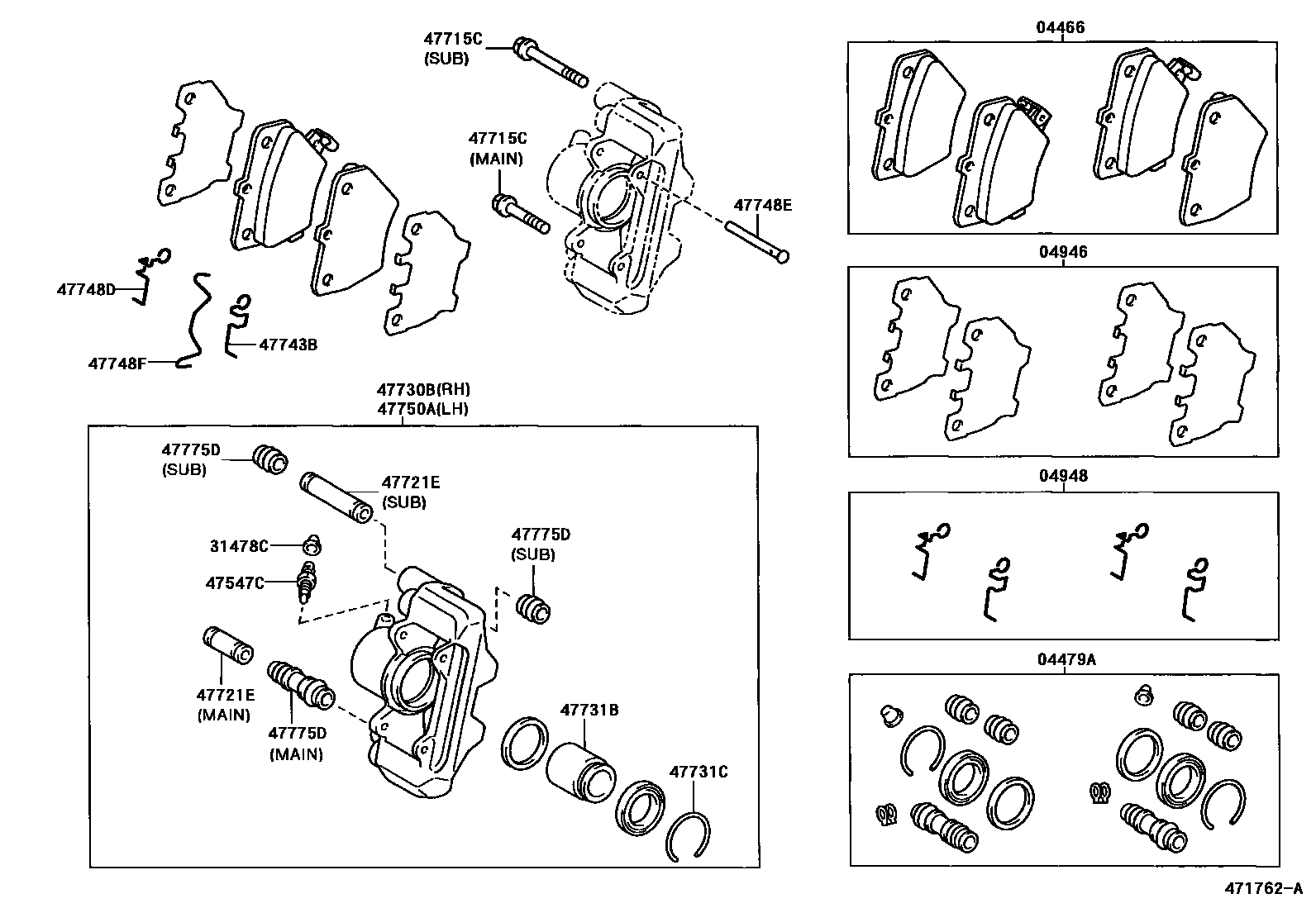

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-20090iZZT231199908-200507

MARK AK PA544

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-20340iZZT231199908-200507

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-20020iZZT231199908-200507

04948FITTING KIT, DISC BRAKE, REAR

main04948-20010iZZT231199908-200507

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iZZT231199908-200507

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-35020iZZT231199908-200507

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-20030iZZT231199908-200507

MAIN

main47715-20040iZZT231199908-200507

SUB

47721ECOLLAR(FOR REAR DISC BRAKE CYLINDER MOUNTING)

main90389-10053iZZT231199908-200507

SUB

main90389-10054iZZT231199908-200507

MAIN

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-20630iZZT231199908-200507

47731BPISTON, REAR DISC BRAKE

main47731-20250iZZT231199908-200507

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-40043iZZT231199908-200507

47743BSPRING, ANTI-RATTLE, NO.2(FOR REAR DISC BRAKE)

main47743-20030iZZT231199908-200507

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-20040iZZT231199908-200507

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main90240-06021iZZT231199908-200507

47748FCLIP(FOR REAR DISC BRAKE)

main90468-12025iZZT231199908-200507

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-20620iZZT231199908-200507

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-22020iZZT231199908-200507

MAIN

main47775-42010iZZT231199908-200507

SUB

17 parts on this diagram · 1 diagram in section
