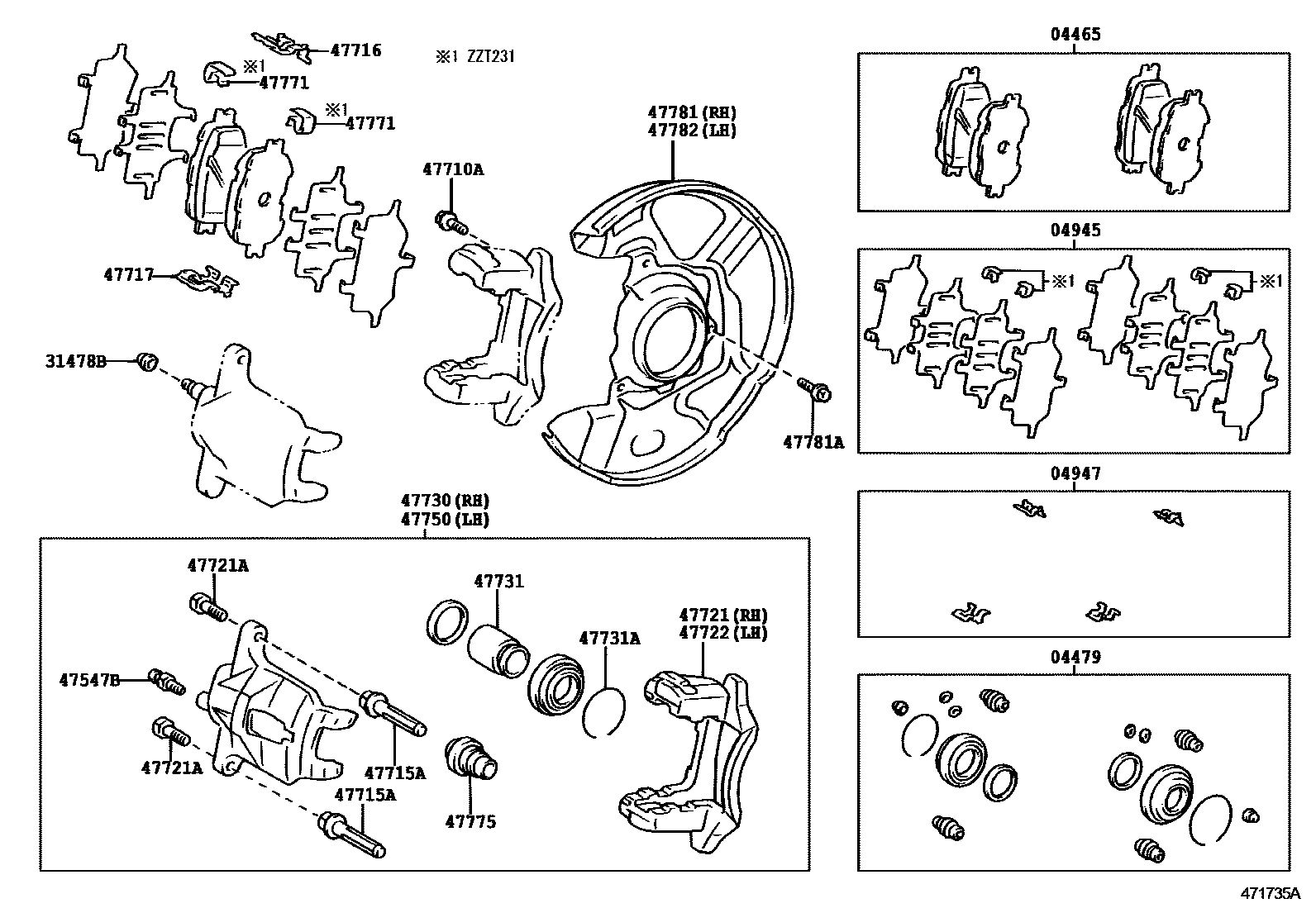

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-20480iZZT230199908-200008

sub04465-47030

main04465-20540iZZT23#200208-200507

MARK AISIN PC554

main04465-2B010iZZT231199908-200208

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-20320iZZT230199908-200008

sub04478-47060

main04479-20330iZZT231199908-200507

sub04478-13020

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-13030iZZT23#200208-200507

main04945-20210iZZT230199908-200008

main04945-32230iZZT231199908-200208

04947FITTING KIT, DISC BRAKE, FRONT

main04947-20110iZZT230199908-200008

main04947-20120iZZT231199908-200507

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iZZT23#199908-200507

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iZZT23#199908-200507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iZZT23#199908-200507

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22080iZZT23#199908-200507

main47715-52010iZZT230199908-200008

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-20200iZZT230199908-200008

main47716-20210iZZT23#199908-200507

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-20100iZZT230199908-200008

main47717-20110iZZT231199908-200507

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20440iZZT230199908-200008

main47721-20450iZZT231199908-200208

main47721-20460iZZT23#200208-200507

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164iZZT23#199908-200507

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-20130iZZT230199908-200008

main47722-20140iZZT231199908-200208

main47722-20150iZZT23#200208-200507

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20600iZZT230199908-200008

main47730-20610iZZT231199908-200208

main47730-20640iZZT23#200208-200507

47731PISTON, FRONT DISC BRAKE

main47731-20260iZZT230199908-200008

main47731-44010iZZT231199908-200507

sub47731-33010

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-86005iZZT230199908-200008

main90522-66001iZZT231199908-200507

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20510iZZT230199908-200008

main47750-20600iZZT231199908-200208

main47750-20640iZZT23#200208-200507

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32040iZZT23#199908-200507

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iZZT231199908-200507

sub47775-50010

main47775-52010iZZT230199908-200008

sub47775-02130

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-20350iZZT23#199908-200507

main47781-47010iZZT230199908-200008

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90109-06134iZZT23#199908-200101

main90119-06227iZZT23#200101-200507

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-20350iZZT231199908-200507

main47782-47010iZZT230199908-200008

22 parts on this diagram · 1 diagram in section
