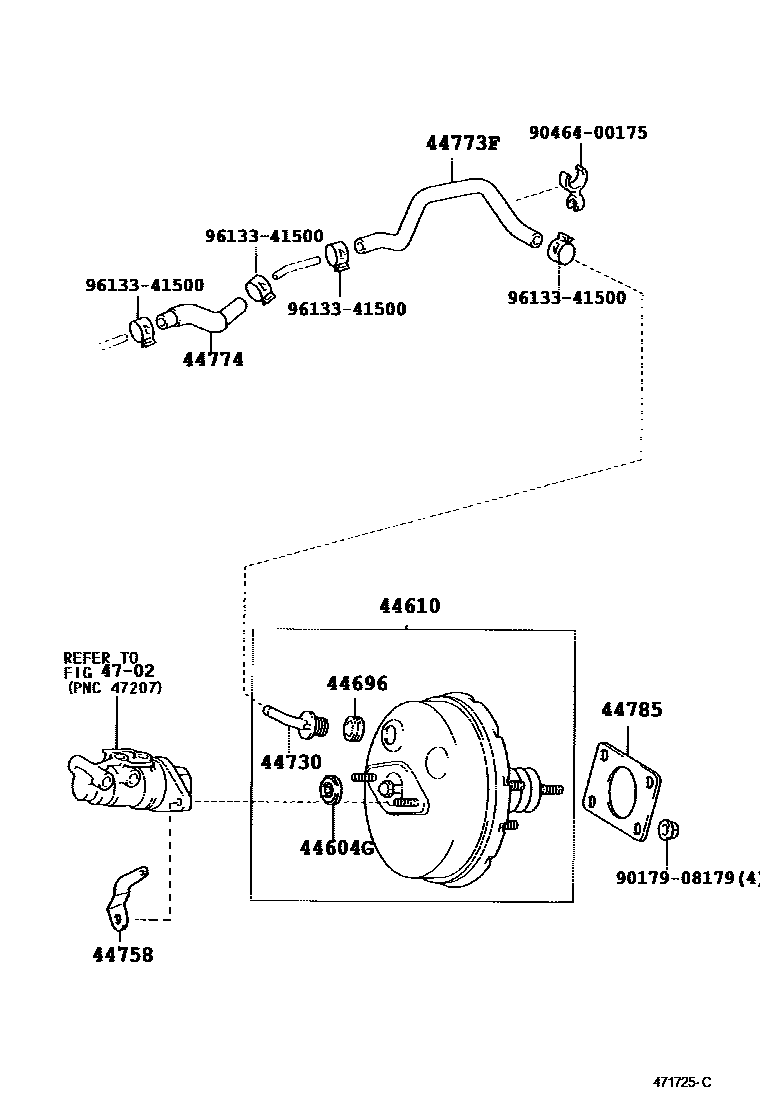

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

44604GSEAL, BRAKE BOOSTER BODY

main44604-52070iZZT23#199908-200507

44610BOOSTER ASSY, BRAKE

main44610-2G020iZZT231199908-199910

sub44610-2G080

main44610-2G040iZZT230199908-199910

sub44610-2G060

main44610-2G060iZZT230199910-200008

main44610-2G080iZZT23#199910-200507

44696GROMMET, CHECK VALVE

main90480-24015iZZT23#199908-200507

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-10020iZZT23#200503-200507

main44730-20160iZZT23#199908-200502

sub44730-10020

44758BRACKET, VACUUM CHECK VALVE

main44758-20350iZZT23#199908-200507

44773FHOSE, UNION TO CHECK VALVE

main44773-2B160iZZT230199908-200507

main44773-2B170iZZT231199908-200205

main44773-2B220iZZT231200205-200208

main44773-2B230iZZT231200208-200507

44774HOSE, UNION TO CONNECTOR TUBE

main44774-20280iZZT230199908-200507

44785GASKET, BRAKE BOOSTER

main44785-20020iZZT23#199908-200507

4702

9017908179

main90179-08179

9046400175

main90464-00175

9613341500

main96133-41500

12 parts on this diagram · 2 diagrams in section
