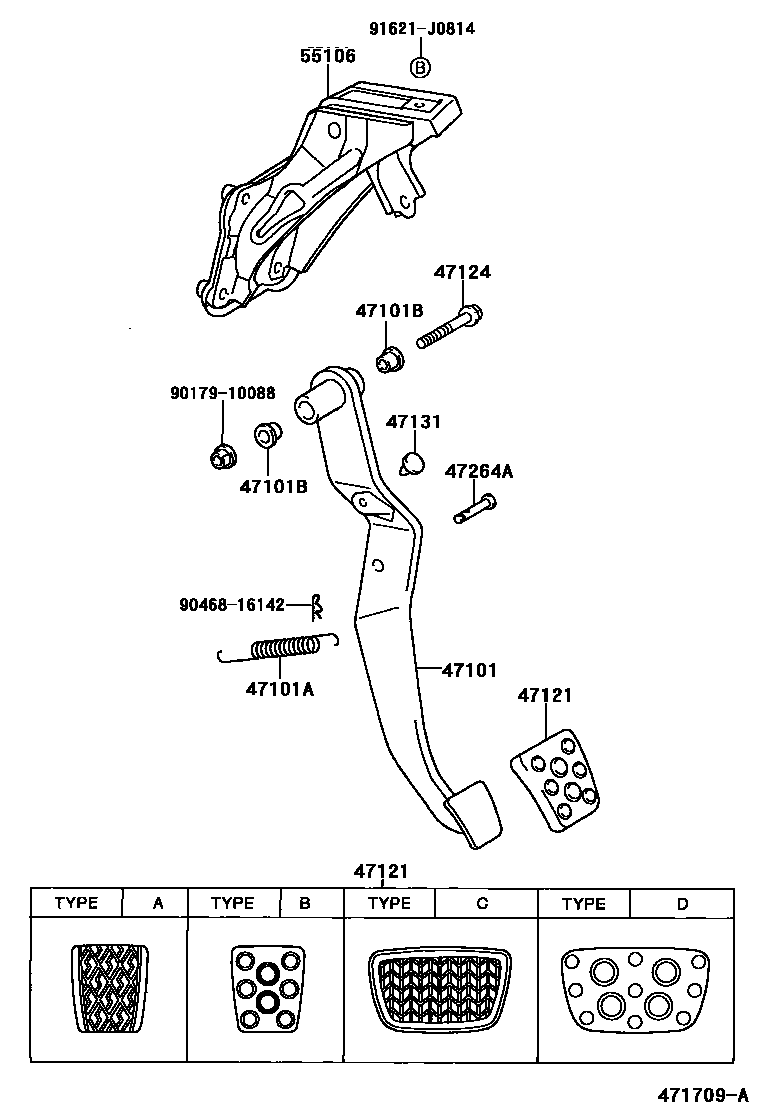

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-20600iZZT23#..MTM199908-200507

main47101-20610iZZT23#..4FC199908-200507

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90905-07025iZZT23#199908-200507

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iZZT23#199908-200507

47121PAD, BRAKE PEDAL

main31321-12040iZZT23#..MTM199908-200507

TYPE A:REFER TO ILLUSTRATION

main31321-53010iZZT23#..MTM199908-200507

TYPE B:REFER TO ILLUSTRATION

main47121-50010iZZT23#..4FC199908-200507

TYPE C:REFER TO ILLUSTRATION

main47121-53010iZZT23#..4FC199908-200507

TYPE D:REFER TO ILLUSTRATION

47124SHAFT, BRAKE PEDAL

main90109-10167iZZT23#199908-200507

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iZZT23#199908-200507

47264APIN(FOR PUSH ROD)

main47148-12020iZZT23#199908-200507

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-20450iZZT23#199908-200108

main55106-20451iZZT23#200108-200507

9017910088

main90179-10088

9046816142

main90468-16142

91621J0814

main91621-J0814

11 parts on this diagram · 1 diagram in section
