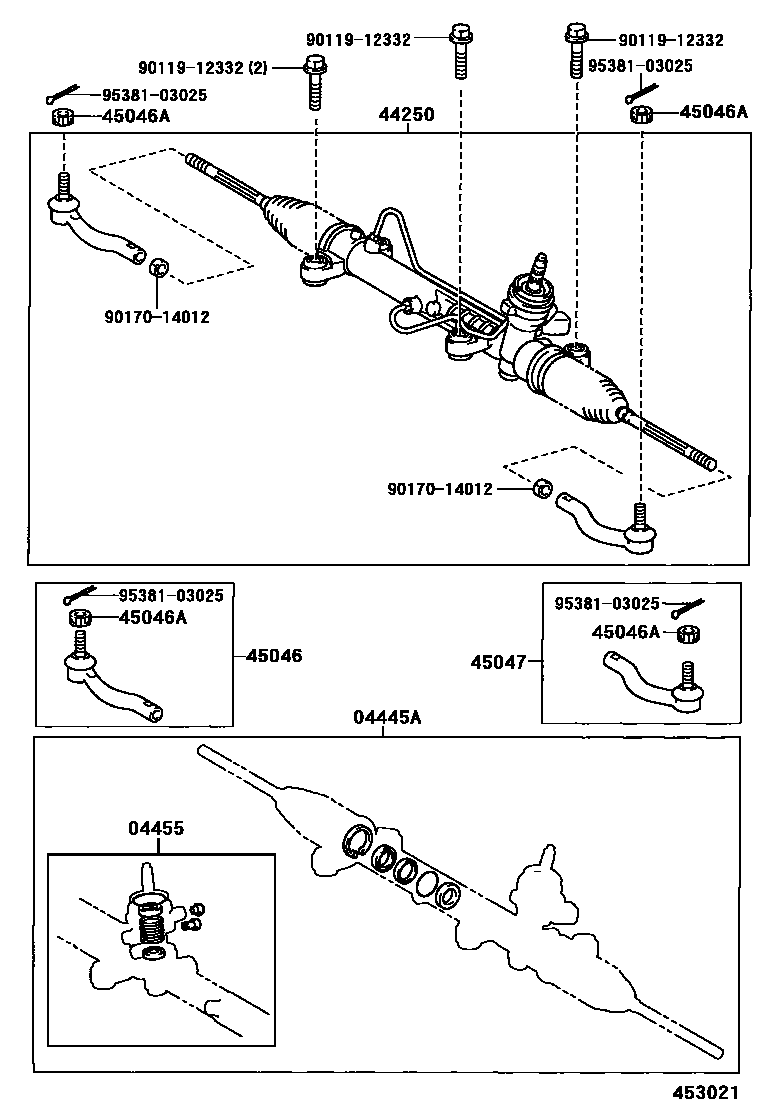

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-20261iZZT23#199908-200507

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-20171iZZT23#199908-200507

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44200-20880iZZT23#199912-200004

sub44200-20881

main44200-20881iZZT23#200004-200507

main44200-29025iZZT23#199908-199912

sub44200-20880

45046END SUB-ASSY, TIE ROD, RH

main45046-49085iZZT23#199908-200507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZZT23#199908-200507

45047END SUB-ASSY, TIE ROD, LH

main45047-49015iZZT23#199908-200507

9011912332

main90119-12332

9017014012

main90170-14012

9538103025

main95381-03025

9 parts on this diagram · 4 diagrams in section
