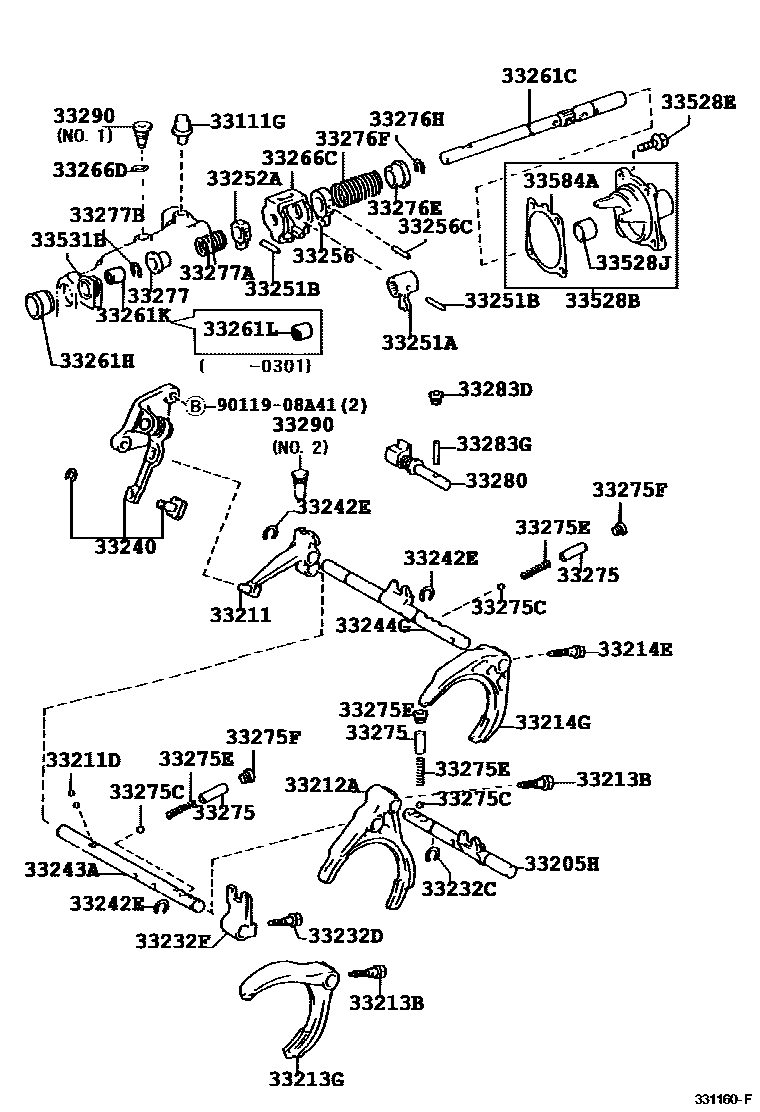

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33111GPLUG, BREATHER(FOR MANUAL TRANSMISSION)
33211FORK, REVERSE SHIFT
33211DBALL(FOR REVERSE SHIFT FORK)
OD=6.35
33212AFORK, GEAR SHIFT, NO.1
33213BBOLT(FOR SHIFT FORK SET)
33213GFORK, GEAR SHIFT, NO.2
33214EBOLT(FOR GEAR SHIFT FORK LOCK)
33214GFORK, GEAR SHIFT, NO.3
33232CRING, SNAP (FOR 1ST & 2ND SHIFT HEAD)
33232DBOLT (FOR SHIFT HEAD SET)
33232FHEAD, GEAR SHIFT, NO.1
33240BRACKET ASSY, REVERSE SHIFT ARM
33242ERING, SHAFT SNAP (FOR SHIFT FORK SHAFT)
33243ASHAFT, GEAR SHIFT FORK, NO.2
33251ALEVER, SHIFT, INNER NO.1
33251BPIN, SLOTTED SPRING (FOR SHIFT INNER LEVER)
L=18.0
L=25.5
33252ALEVER, SHIFT, INNER NO.2
33256LEVER, SELECT INNER
33256CPIN, SLOTTED SPRING (FOR SELECT INNER LEVER)
33261HSEAL, OIL (FOR SHIFT & SELECT LEVER SHAFT)
33261KBEARING, NEEDLE ROLLER (FOR SHIFT & SELECT LEVER SHAFT)
33261LBUSH, BIMETAL FORMED (FOR SHIFT & SELECT LEVER SHAFT)
33266CPLATE, SHIFT INTERLOCK
33266DGASKET (FOR SHIFT INTERLOCK PLATE)
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
OD=10.7
33275CBALL (FOR SHIFT DETENT)
33275FPLUG (FOR SHIFT DETENT BALL)
33276ESEAT, SELECT SPRING, NO.1
33276HRING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT)
33277SEAT, SELECT SPRING, NO.2
33277ASPRING, COMPRESSION, NO.2 (FOR SELECT RETURN)
33277BRING, E (FOR SELECT SPRING NO.2 SEAT)
33280PIN ASSY, REVERSE RESTRICT
33283DPLUG (FOR REVERSE RESTRICT PIN)
33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
33528EBOLT (FOR CONTROL SHAFT COVER)
*10-1.25PX25-19.8
*10-1.25PX25-25
33528JBUSH, BIMETAL FORMED (FOR CONTROL SHAFT COVER)
33531BBOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT)
33584AGASKET, CONTROL SHIFT LEVER RETAINER
9011908A41
main90119-08A41
47 parts on this diagram · 2 diagrams in section
