CLUTCH HOUSING & TRANSMISSION CASE (MTM)

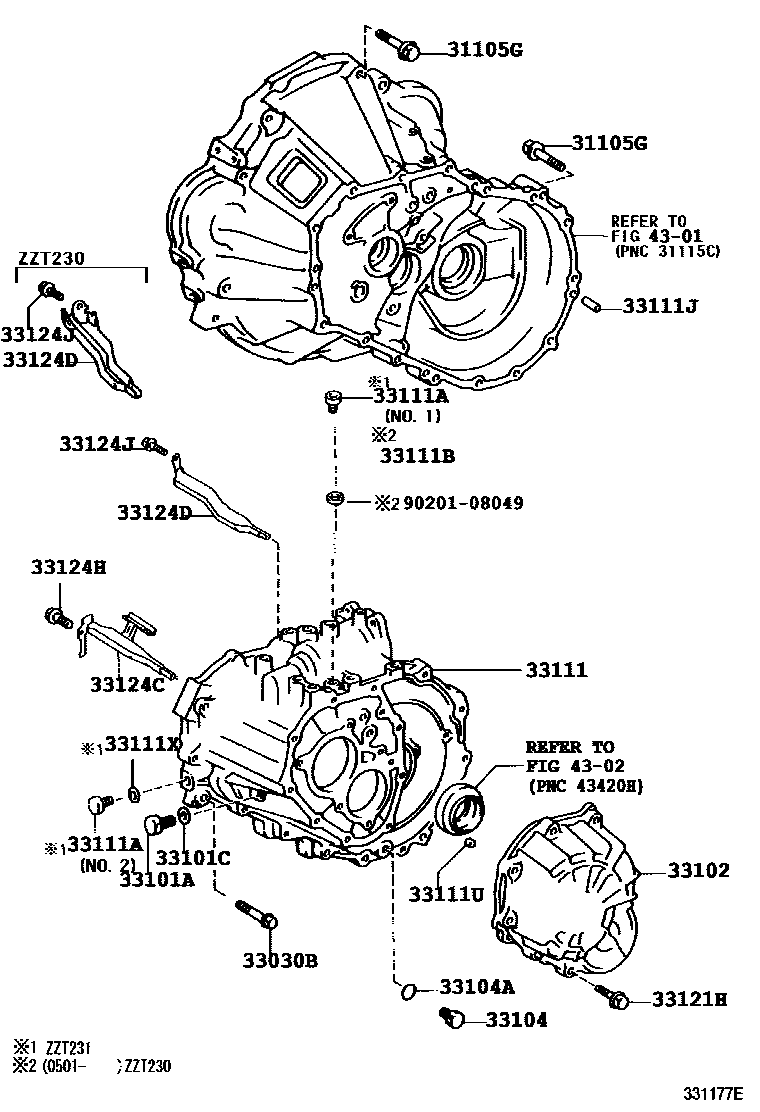

Parts diagram
31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
main91619-61255i199908-200507
*12-1.25PX55-30
main91642-81055i199908-200507
*10-1.25PX55-30
33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
main90105-08064i199908-200208
*8-1.25PX51-28
sub90105-08353
main90105-08086i199908-200507
*8-1.25PX45-27.5
main90105-08353i200208-200507
*8-1.25PX50-30
main90105-08430i200408-200507
*8-1.25PX45-27.5
33101APLUG(FOR MANUAL TRANSMISSION FILLER)
main90341-18006i199908-200506
main90341-18033i200506-200507
main90341-18038i199908-200507
33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
main90430-18008i199908-200507
33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE
main33102-12021i199908-200507
main33102-12050i199908-200006
sub33102-20050
main33102-20050i200006-200507
33104PLUG SUB-ASSY, DRAIN(MTM)
main90341-18006i199908-200506
main90341-18033i200506-200507
33104AGASKET, DRAIN PLUG(MTM)
main90430-18008i199908-200507
33111CASE, MANUAL TRANSMISSION
main33111-20160i199908-200301
sub33111-20161
sub90389-15009
main33111-20161i200301-200408
sub33111-12240
sub90101-08166
sub90201-08049
main33111-20162i200408-200507
sub33111-12240
sub90101-08166
sub90201-08049
main33111-20170i199908-200301
sub33111-20171
sub90389-15009
main33111-20171i200301-200501
sub33111-52120
sub90101-08166
sub90201-08049
main33111-52060i200501-200507
sub33111-52120
sub90101-08166
sub90201-08049
33111APLUG, MANUAL TRANSMISSION CASE
main90341-10065i199908-200507
NO.1
main90341-18023i199908-200507
NO.2
33111BBOLT, STUD OR BOLT(FOR TRANSMISSION CASE)
main90101-08166i200501-200507
*8-1.25PX14-12
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
main90250-08054i199908-200507
L=23,OD=8
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
main90253-11001i199908-200507
L=11,OD=11
33111XGASKET, TRANSMISSION CASE PLUG
main90430-18008i199908-200507
33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
main90119-08429i200505-200507
main91611-60835i199908-200507
33124CPIPE, OIL RECEIVER, NO.1(MTM)
main33124-20050i199908-200507
33124DPIPE, OIL RECEIVER, NO.2(MTM)
main33124-12021i199908-200507
main33124-20060i199908-200507
33124HBOLT(FOR OIL RECEIVER PIPE)
main91611-60820i199908-200208
sub91611-G0820
main91611-G0820i200208-200507
33124JBOLT, W/WASHER
main91611-60820i199908-200208
sub91611-G0820
main91611-G0820i200208-200507
4301
4302
9020108049
main90201-08049
