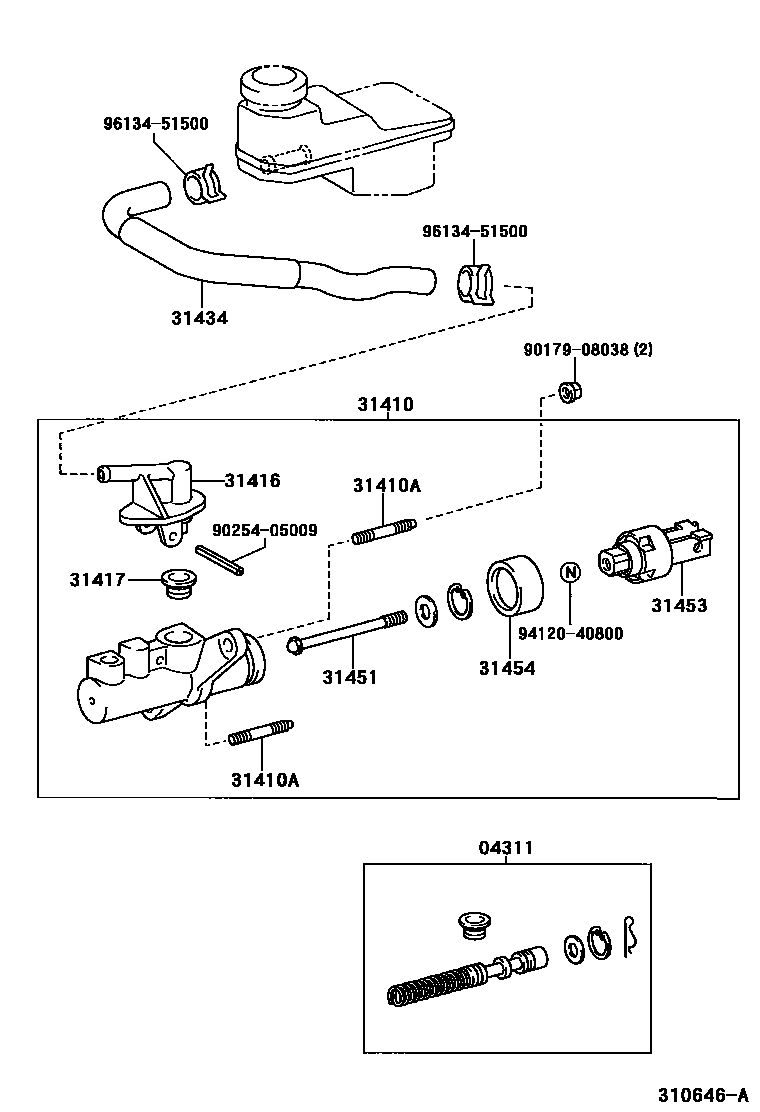

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iZZT23#..MTM199908-200507

31410CYLINDER ASSY, CLUTCH MASTER

main31420-20070iZZT23#..MTM199908-200507

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main90116-08146iZZT23#..MTM199908-200208

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-20020iZZT23#..MTM199908-200208

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iZZT23#..MTM199908-200208

31434TUBE, CLUTCH RESERVOIR

main31434-20030iZZT23#..MTM199908-200507

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-35080iZZT23#..MTM199908-200208

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-17010iZZT23#..MTM199908-200208

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iZZT23#..MTM199908-200208

9017908038

main90179-08038

9025405009

main90254-05009

9412040800

main94120-40800

9613451500

main96134-51500

13 parts on this diagram · 2 diagrams in section
