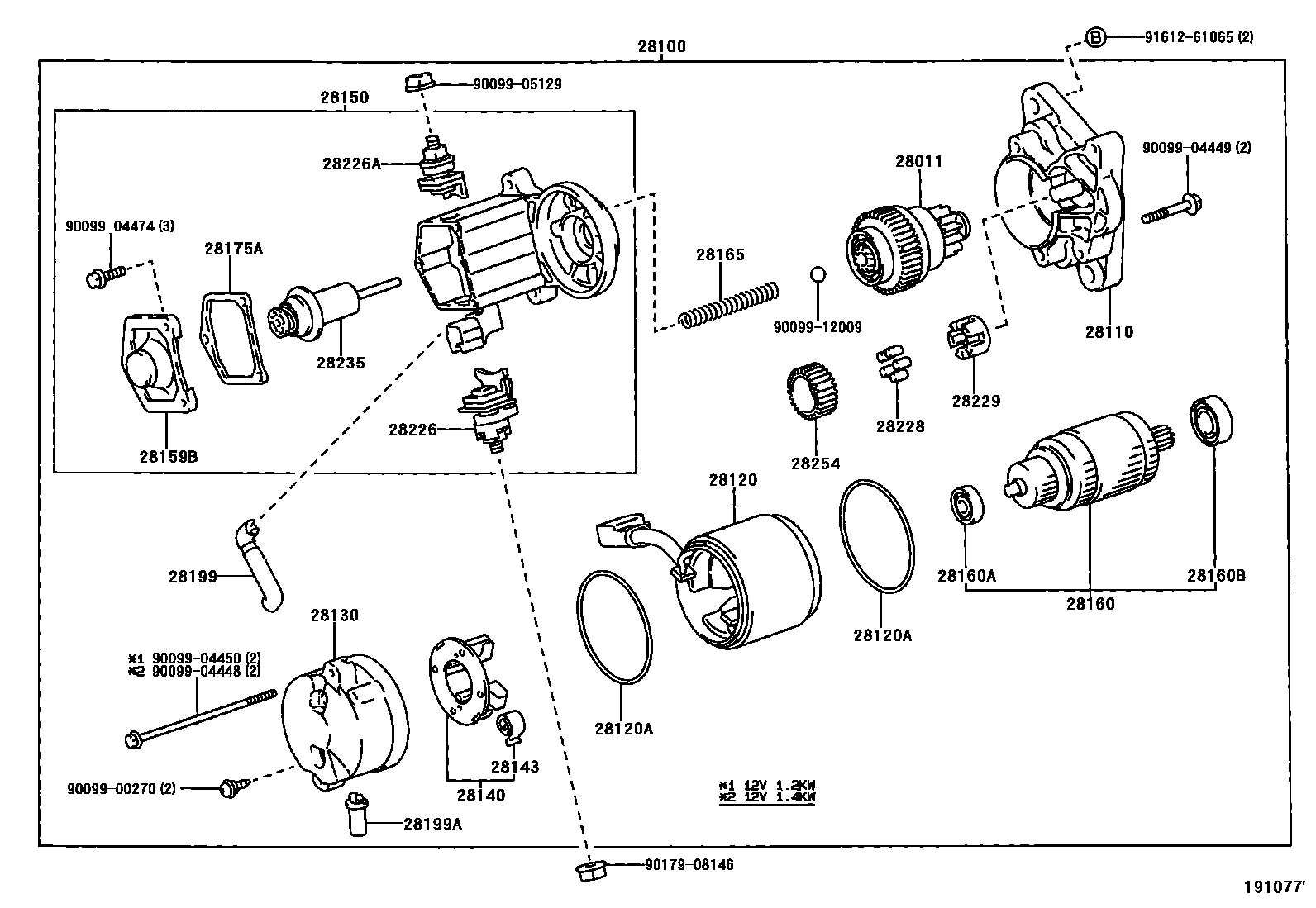

STARTER
28011CLUTCH SUB-ASSY, STARTER
28100STARTER ASSY
12V 1.4KW
12V 1.4KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
12V 1.2KW
12V 1.4KW
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
12V 1.4KW
12V 1.2KW
28140HOLDER ASSY, STARTER BRUSH
12V 1.2KW
12V 1.4KW
28143SPRING, STARTER BRUSH
12V 1.2KW
12V 1.4KW
28150SWITCH ASSY, MAGNET STARTER
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
12V 1.2KW
12V 1.4KW
12V 1.4KW
12V 1.2KW
28160ABEARING, STARTER ARMATURE
28160BBEARING, STARTER ARMATURE, NO.2
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28199COVER, STARTER
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
sub28226-22050
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9009900270
main90099-00270
9009904448
main90099-04448
9009904449
main90099-04449
9009904450
main90099-04450
9009904474
main90099-04474
9009905129
main90099-05129
9009912009
main90099-12009
9017908146
main90179-08146
9161261065
main91612-61065
32 parts on this diagram · 2 diagrams in section
