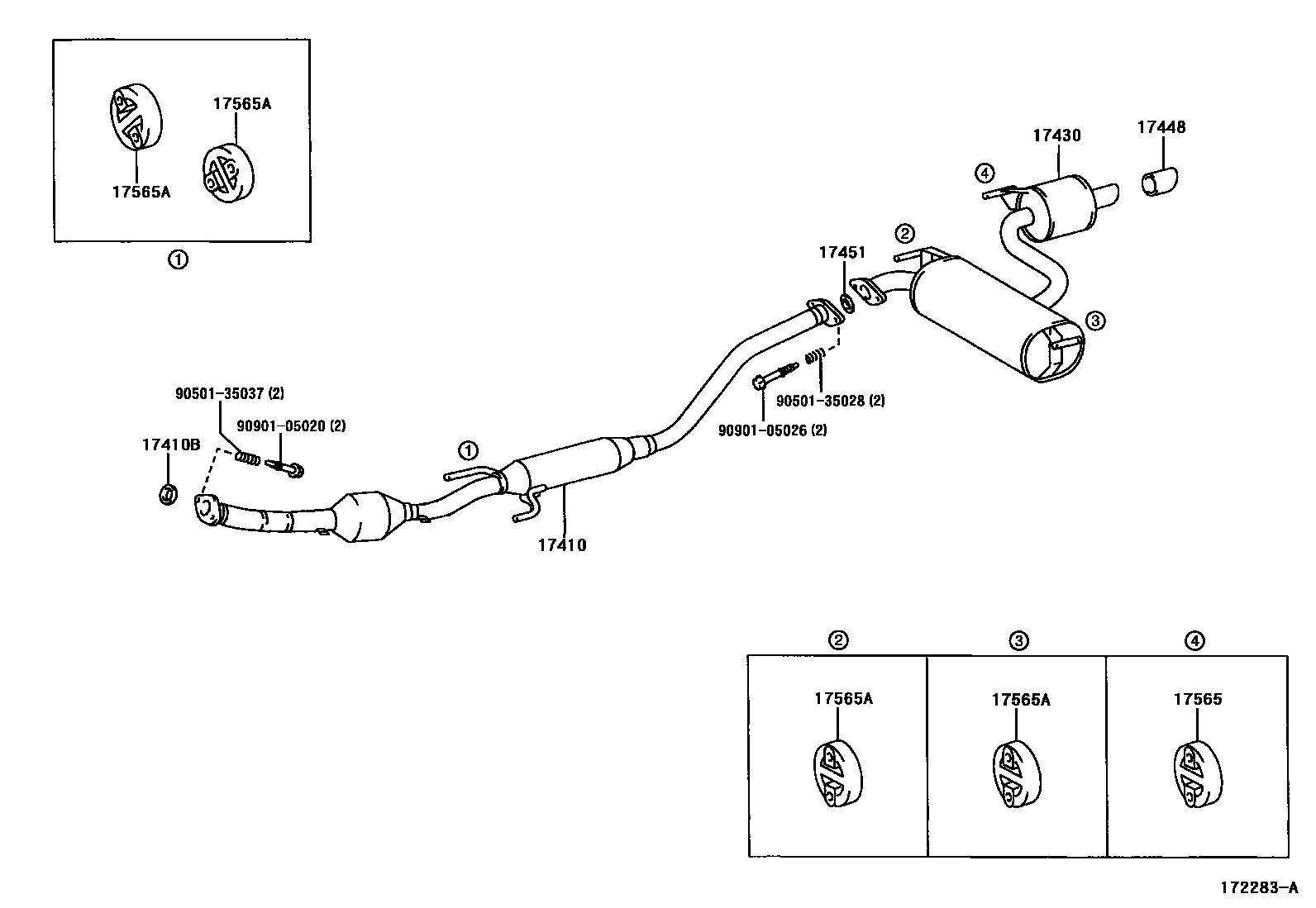

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-22070i1ZZFE..ZZT230199908-200208

main17410-22100i2ZZGE..ZZT231199908-200308

main17410-22380i1ZZFE..ZZT230200208-200507

main17410-22480i2ZZGE..ZZT231200308-200507

17410BGASKET, EXHAUST PIPE

main17451-22050i2ZZGE..ZZT231199908-200507

main17451-22070i1ZZFE..ZZT230199908-200507

17430PIPE ASSY, EXHAUST, TAIL

main17430-22070i1ZZFE..ZZT230199908-200507

main17430-22080i2ZZGE..ZZT231199908-200308

main17430-22220i2ZZGE..ZZT231200308-200507

17448BAFFLE, TAILPIPE

main17408-46020i2ZZGE..ZZT231199908-200507

17451GASKET, EXHAUST PIPE

main17451-20010i1ZZFE..ZZT230199908-200507

main17451-22040i2ZZGE..ZZT231199908-200507

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-16270i1ZZFE,2ZZGE..ZZT23#199908-200507

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46010i1ZZFE,2ZZGE..ZZT23#199908-200507

9050135028

main90501-35028

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

11 parts on this diagram · 1 diagram in section
