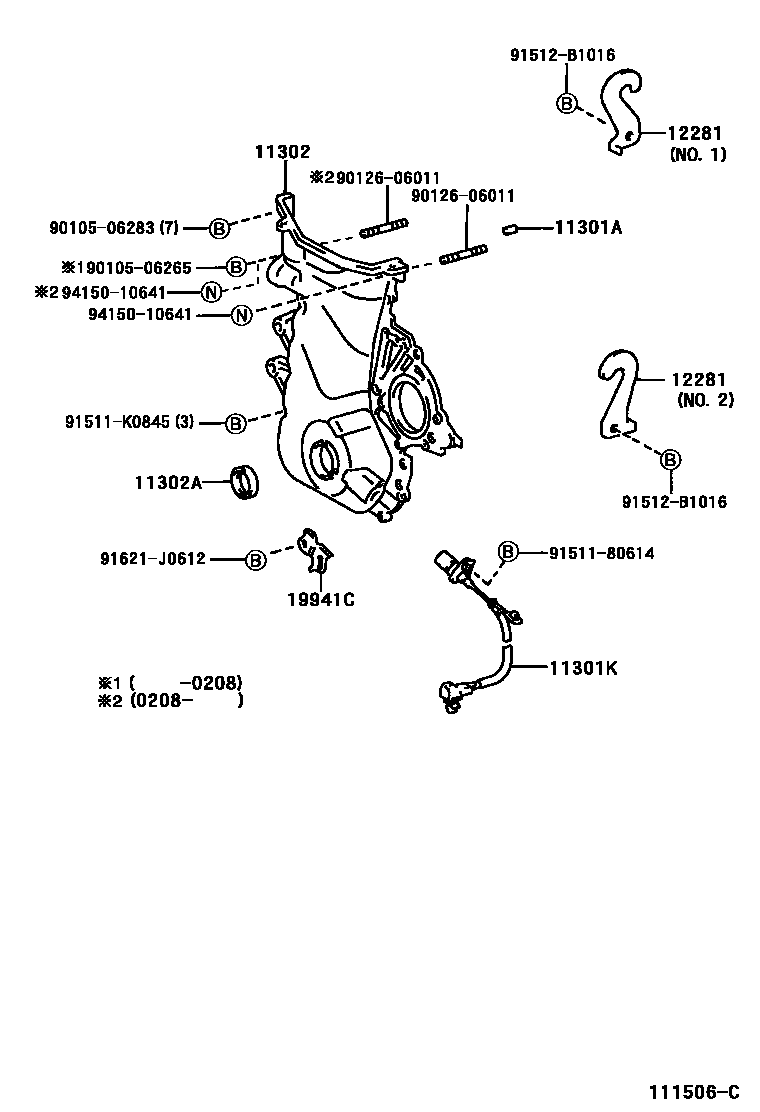

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08074i1ZZFE,2ZZGE..ZZT23#199908-200507

L=15,OD=8

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFE..ZZT230199908-200507

main90919-05048i2ZZGE..ZZT231199908-200507

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11321-0D030i1ZZFE..ZZT230200206-200507

(L)

main11321-22021i1ZZFE..ZZT230200206-200507

(J)

main11321-22021i1ZZFE..ZZT230199908-200206

main11321-88600i2ZZGE..ZZT231199908-200004

sub11321-88601

main11321-88601i2ZZGE..ZZT231200004-200507

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38059i1ZZFE,2ZZGE..ZZT23#199908-200412

main90311-38089i1ZZFE,2ZZGE..ZZT23#200501-200507

12281HANGER, ENGINE, NO.1

main12281-15040i1ZZFE..ZZT230199908-200212

NO.1

main12281-15050i1ZZFE..ZZT230200212-200507

NO.1

main12281-22021i1ZZFE..ZZT230199908-200507

NO.2

main12281-88600i2ZZGE..ZZT231199908-200507

19941CCLAMP, CORD(FOR CRANK POSITION SENSOR)

main19941-22010i1ZZFE,2ZZGE..ZZT23#199908-200507

9010506265

main90105-06265

9010506283

main90105-06283

9012606011

main90126-06011

9151180614

main91511-80614

91511K0845

main91511-K0845

91512B1016

main91512-B1016

91621J0612

main91621-J0612

9415010641

main94150-10641

14 parts on this diagram · 2 diagrams in section
