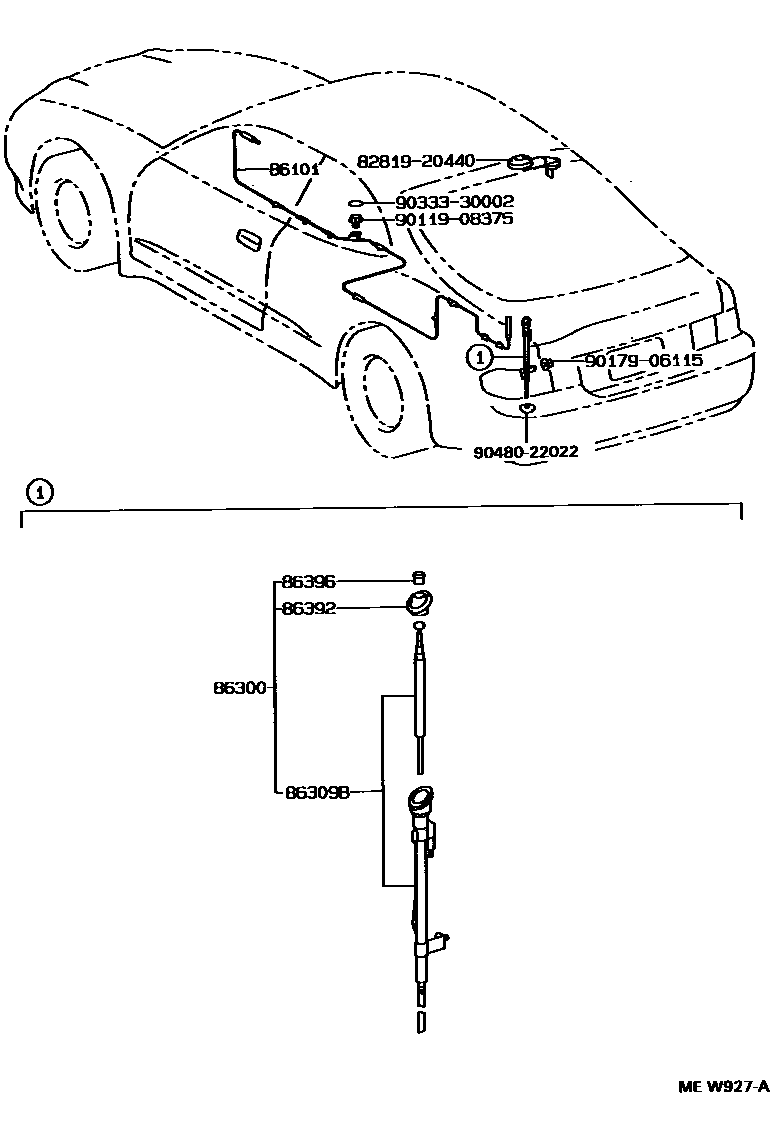

ANTENNA

0001 1 0002 1AUTOMATIC ANTENNA 0003 1DIVERSITY ANTENNA

86101CORD SUB-ASSY, ANTENNA

main86101-20640iAT200,ST204..LB199309-199508

sub86101-20641

main86101-20641iAT200,ST204..LB199508

main86101-20650iST204..LB199309-199508

DIVERSITY ANTENNA,NO.1

sub86101-20651

main86101-20651iST204..LB199508

DIVERSITY ANTENNA,NO.1

main86101-20660iST204..LB199309-199310

DIVERSITY ANTENNA,NO.2

main86101-20661iST204..LB199310

DIVERSITY ANTENNA,NO.2

main86101-20670iST204..LB199309-199310

DIVERSITY ANTENNA,NO.3

main86101-20671iST204..LB199310

DIVERSITY ANTENNA,NO.3

main86101-20680iST204..CVT199309-199510

sub86101-20681

main86101-20681iAT200,ST204..CP199508-199510

main86101-20690iST204..CP199309-199508

DIVERSITY ANTENNA

sub86101-20691

main86101-20691iST204..CP199508

DIVERSITY ANTENNA

86300ANTENNA ASSY, W/HOLDER

main86300-2B190iAT200,ST204..USA199309-199510

sub86300-2B191

main86300-2B191iAT200,ST204..(CP,LB)..USA199508-199510

sub86309-20271

sub86392-20191

sub86396-20030

main86300-2B200iAT200,ST204199309-199506

DIVERSITY ANTENNA OR AUTOMATIC ANTENNA

sub86300-2B201

main86300-2B201iAT200,ST204199506

DIVERSITY ANTENNA OR AUTOMATIC ANTENNA

86309BPOLE SUB-ASSY, PULL TOP ANTENNA

main86309-20270iAT200,ST204..USA199309-199510

main86309-20271iAT200,ST204..(CP,LB)..USA199508-199510

86392ORNAMENT, ANTENNA

main86392-20180iAT200,ST204..USA199309-199510

main86392-20190iAT200,ST204199309-199611

DIVERSITY ANTENNA OR AUTOMATIC ANTENNA

sub86392-20191

main86392-20191iAT200,ST204199611

86396NUT, ANTENNA

main86396-12020iAT200,ST204..USA199309-199510

main86396-20030iAT200;ST204..GT199309

DIVERSITY ANTENNA OR AUTOMATIC ANTENNA

main86396-20030iST204..ST199712

8281920440GROMMET, WIRING HARNESS

main82819-20440

9011908375

main90119-08375

9017906115

main90179-06115

9033330002

main90333-30002

9048022022

main90480-22022

10 parts on this diagram · 3 diagrams in section
