RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1

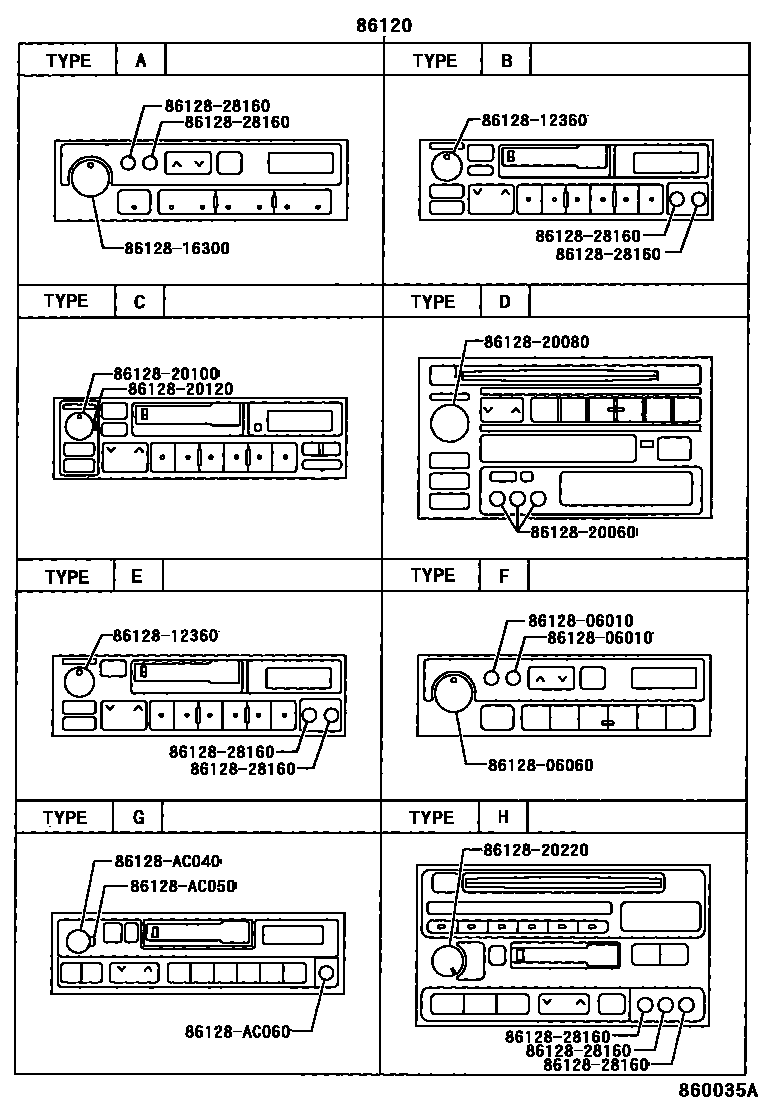

86120RECEIVER ASSY, RADIO

main86120-06050iAT200199408-199712

FUJITSU,ID=A11404,TYPE F:REFER TO ILLUSTRATION

main86120-08020iST204..USA199712

FUJITSU TEN,ID=11801,TYPE J:REFER TO ILLUSTRATION,W(4 SPEAKER)

main86120-08040iST204199712

FUJITSU TEN,ID=11802,TYPE J:REFER TO ILLUSTRATION,W(6 SPEAKER)

main86120-0W050iAT200,ST204199408-199712

DELCO,TYPE G:REFER TO ILLUSTRATION

main86120-0W070iST204199712

DELCO,TYPE K:REFER TO ILLUSTRATION

main86120-12840iAT200199309-199408

FUJITSU TEN,TYPE A:REFER TO ILLUSTRATION

main86120-12850iAT200,ST204199309-199408

FUJITSU TEN,TYPE B:REFER TO ILLUSTRATION

main86120-14880iST204..GT199712

FUJITSU TEN,TYPE L:REFER TO ILLUSTRATION

main86120-2B340iST204199309-199408

FUJITSU TEN,TYPE C:REFER TO ILLUSTRATION

main86120-2B400iAT200,ST204..USA199309-199712

FUJITSU TEN,TYPE E:REFER TO ILLUSTRATION

main86120-2B510iST204199408-199611

FUJITSU TEN,TYPE I:REFER TO ILLUSTRATION

sub86120-2B511

main86120-2B511iST204199611-199712

FUJITSU TEN,TYPE I:REFER TO ILLUSTRATION

main86120-2B610iST204..USA199712

FUJITSU TEN,ID=17411,TYPE K:REFER TO ILLUSTRATION

main86120-33050iST204199408-199611

FUJITSU TEN,TYPE H:REFER TO ILLUSTRATION

sub86120-33051

main86120-33051iST204199611-199712

FUJITSU TEN,TYPE H:REFER TO ILLUSTRATION

main86120-33110iST204199309-199408

FUJITSU TEN,TYPE D:REFER TO ILLUSTRATION

8612806010KNOB, RADIO RECEIVER

main86128-06010

8612806060KNOB, RADIO RECEIVER

main86128-06060

8612812360KNOB, RADIO RECEIVER

main86128-12360

8612816300KNOB, RADIO RECEIVER

main86128-16300

8612820060KNOB, RADIO RECEIVER

main86128-20060

8612820080KNOB, RADIO RECEIVER

main86128-20080

8612820100KNOB, RADIO RECEIVER

main86128-20100

8612820120KNOB, RADIO RECEIVER

main86128-20120

8612820220KNOB, RADIO RECEIVER

main86128-20220

8612828160KNOB, RADIO RECEIVER

main86128-28160

86128AC040KNOB, RADIO RECEIVER

main86128-AC040

86128AC050KNOB, RADIO RECEIVER

main86128-AC050

86128AC060KNOB, RADIO RECEIVER

main86128-AC060

14 parts on this diagram · 3 diagrams in section
