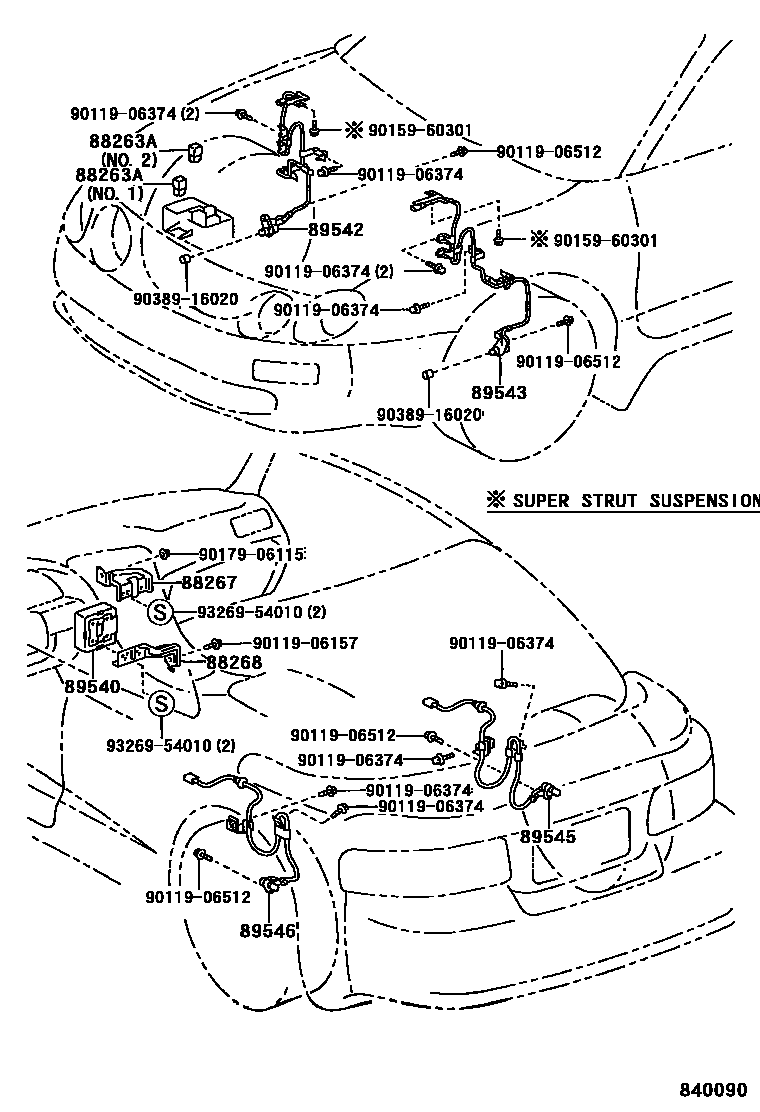

ABS & VSC

0001 1 0002 1

88263ARELAY, SKID CONTROL

main88263-14110iAT200,ST204199508-199510

NO.1

main88263-24020iAT200,ST204199309-199510

NO.1

main88263-24030iAT200,ST204199309

NO.2

88267BRACKET, SKID CONTROL COMPUTER, NO.1

main88267-20150iAT200,ST204199309-199510

main88267-20170iAT200,ST204199508-199510

88268BRACKET, SKID CONTROL COMPUTER, NO.2

main88268-20130iAT200,ST204199309-199510

sub88268-20150

main88268-20150iAT200,ST204..CP,LB199508-199510

89540COMPUTER ASSY, SKID CONTROL

main89541-20130iAT200,ST204199309-199510

main89541-20160iAT200,ST204..CP,LB199508-199712

main89541-20190iST204199712

89542SENSOR, SPEED, FRONT RH

main89542-20090iAT200,ST204199309-199510

main89542-20110iAT200,ST204..CP,LB199508-199510

89543SENSOR, SPEED, FRONT LH

main89543-20090iAT200,ST204199309-199510

main89543-20110iAT200,ST204..CP,LB199508-199510

89545SENSOR, SPEED, REAR RH

main89545-20090iAT200,ST204199309-199510

main89545-20120iAT200,ST204..CP,LB199508-199510

89546SENSOR, SPEED, REAR LH

main89546-20090iAT200,ST204199309-199510

main89546-20120iAT200,ST204..CP,LB199508-199510

9011906157

main90119-06157

9011906374

main90119-06374

9011906512

main90119-06512

9015960301

main90159-60301

9017906115

main90179-06115

9038916020

main90389-16020

9326954010

main93269-54010

15 parts on this diagram · 2 diagrams in section
