OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-12350iAT200..ATM199309-199712

main82125-20150iST204..ATM..GT..USA199309-199905

84722SWITCH, TRANSMISSION CONTROL

main84722-20140-C0iAT200,ST204..(CP,LB)..ATM199309

BLACK,TRIM0#,2#

main84722-20140-C0iST204..CVT..ATM199408

BLACK,TRIM2#

85420SOLENOID ASSY, TRANSMISSION

main85420-12100iAT200..ATM199309-199712

NO.1

sub85420-21010

main85420-12120iAT200..ATM199309-199712

NO.2

sub85420-21030

main85420-12140iAT200..ATM199309-199712

LOCK UP

sub85420-21050

main85420-20110iST204..ATM199309-199905

LOCK UP

main85420-32021iST204..ATM..GT..USA199309-199905

NO.1

main85420-32140iST204..ATM..GT..USA199309-199905

NO.2

sub85420-32041

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iAT200..ATM199309-199712

main90301-06004iST204..ATM199309-199905

NO.1 & NO.2

main90301-06005iST204..(CP,LB)..ATM199309-199905

LOCK UP,ID=6.6

main96721-19017iST204..CVT..ATM199309-199905

LOCK UP,ID=16.8

8282120210RETAINER, HEADLAMP HARNESS

main82821-20210

9030121009

main90301-21009

9161160614

main91611-60614

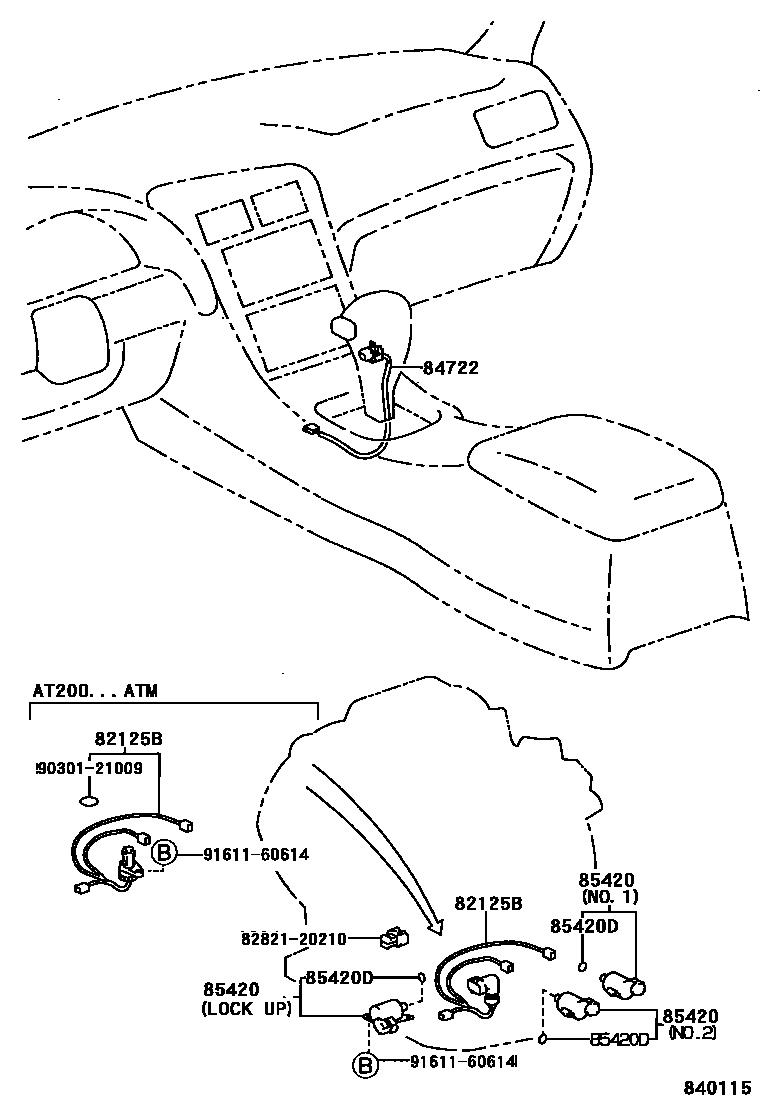

7 parts on this diagram · 1 diagram in section
