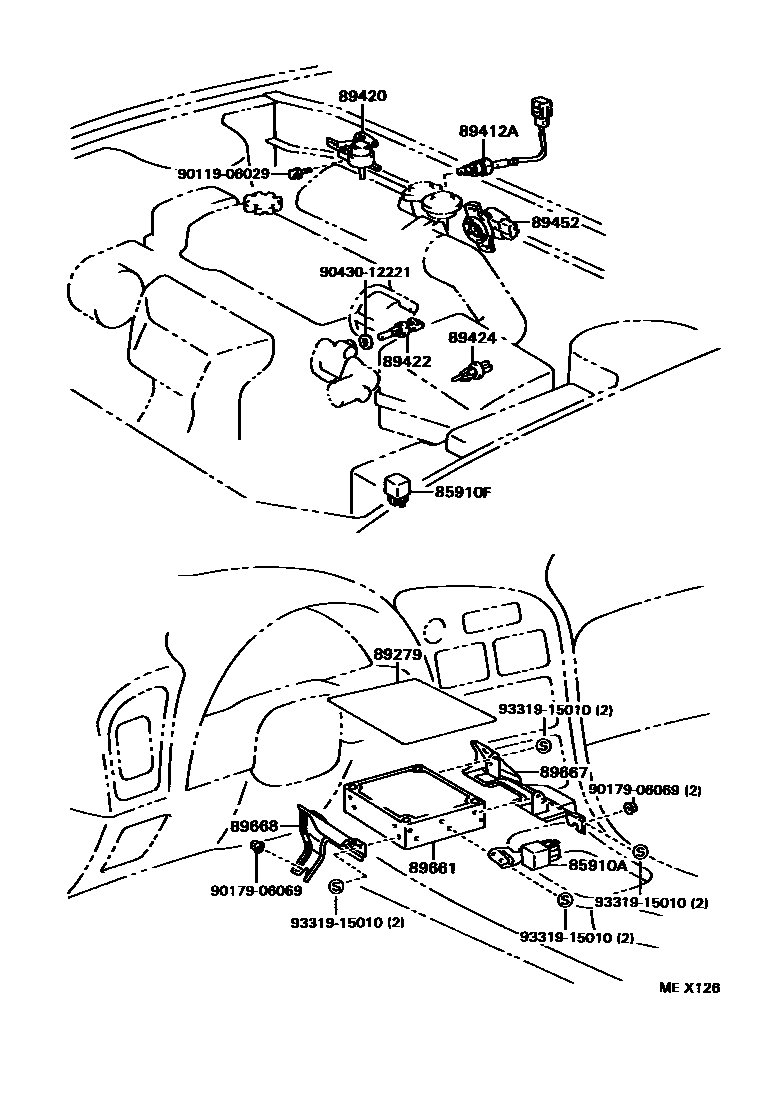

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-20050iST204..GT..USA199309-199905

85910FRELAY, COMPUTER (FOR EFI)

main90987-02009iAT200,ST204199309-199905

89279COVER, ENGINE CONTROL COMPUTER

main89279-12020iAT200,ST204199309-199905

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-33040iAT200,ST204199309-199510

sub89412-33030

89420SENSOR ASSY, VACUUM

main89420-0W040iST204..CND199608-199904

(L)

main89420-0W040iST204..GT..USA199904-199905

main89420-20300iAT200,ST204199309-199608

sub89420-0W040

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-35010iAT200,ST204199309-199905

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iST204..GT..USA199309-199905

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22090iST204..GT..USA199309-199905

89661COMPUTER, ENGINE CONTROL

main89661-2B670iST204..MTM199309-199408

main89661-2B680iST204..ATM199309-199408

main89661-2B690iST204..CVT..MTM199309-199510

CALIFORNIA SPEC

main89661-2B700iST204..ATM..USA199309-199510

CALIFORNIA SPEC

main89661-2B770iAT200..MTM199309-199508

main89661-2B780iAT200..ATM199309-199508

main89661-2D290iST204..MTM199408-199510

main89661-2D300iST204..ATM199408-199510

main89661-2D450iAT200..MTM199508-199606

main89661-2D460iAT200..ATM199508-199606

main89661-2D690iST204..MTM199606-199612

sub89661-2D691

main89661-2D691iST204..(CP,LB)..MTM199508-199709

sub89661-2D692

main89661-2D692iST204..MTM199709-199712

main89661-2D700iST204..ATM199606-199704

sub89661-2D701

main89661-2D701iST204..ATM199508-199712

main89661-2D710iST204..MTM..USA199606-199612

CALIFORNIA SPEC

sub89661-2D711

main89661-2D711iST204..(CP,LB)..MTM..USA199508-199709

CALIFORNIA SPEC

sub89661-2D712

main89661-2D712iST204..MTM..USA199709-199712

CALIFORNIA SPEC

main89661-2D720iST204..ATM..USA199606-199612

CALIFORNIA SPEC

sub89661-2D721

main89661-2D721iST204..ATM..USA199508-199712

CALIFORNIA SPEC

main89661-2D860iAT200..MTM199606-199712

main89661-2D870iAT200..ATM199606-199712

main89661-2G031iST204..MTM..USA199712-199808

CALIFORNIA SPEC

main89661-2G041iST204..ATM..USA199712-199808

CALIFORNIA SPEC

main89661-2G070iST204..LB..ATM..USA199705-199712

TAIWAN SPEC

main89661-2G110iST204..MTM199712-199808

main89661-2G120iST204..ATM199712-199808

main89661-2G130iST204..LB..ATM..USA199712-199808

TAIWAN SPEC

main89661-2G260iST204..MTM..USA199808-199810

CALIFORNIA SPEC

sub89661-2G261

main89661-2G261iST204..MTM..GT..USA199810-199905

CALIFORNIA SPEC

main89661-2G270iST204..ATM..USA199808-199810

CALIFORNIA SPEC

sub89661-2G271

main89661-2G271iST204..ATM..GT..USA199810-199905

CALIFORNIA SPEC

main89661-2G280iST204..MTM199808-199810

sub89661-2G281

main89661-2G281iST204..MTM199810-199905

main89661-2G290iST204..ATM199808-199810

sub89661-2G291

main89661-2G291iST204..ATM199810-199905

main89661-2G300iST204..ATM..ST199808-199810

TAIWAN SPEC

sub89661-2G301

main89661-2G301iST204..ATM..ST199810-199904

TAIWAN SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-20340iAT200,ST204199309-199905

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-20310iST204..GT..USA199309-199905

9011906029

main90119-06029

9017906069

main90179-06069

9043012221

main90430-12221

9331915010

main93319-15010

15 parts on this diagram · 3 diagrams in section
