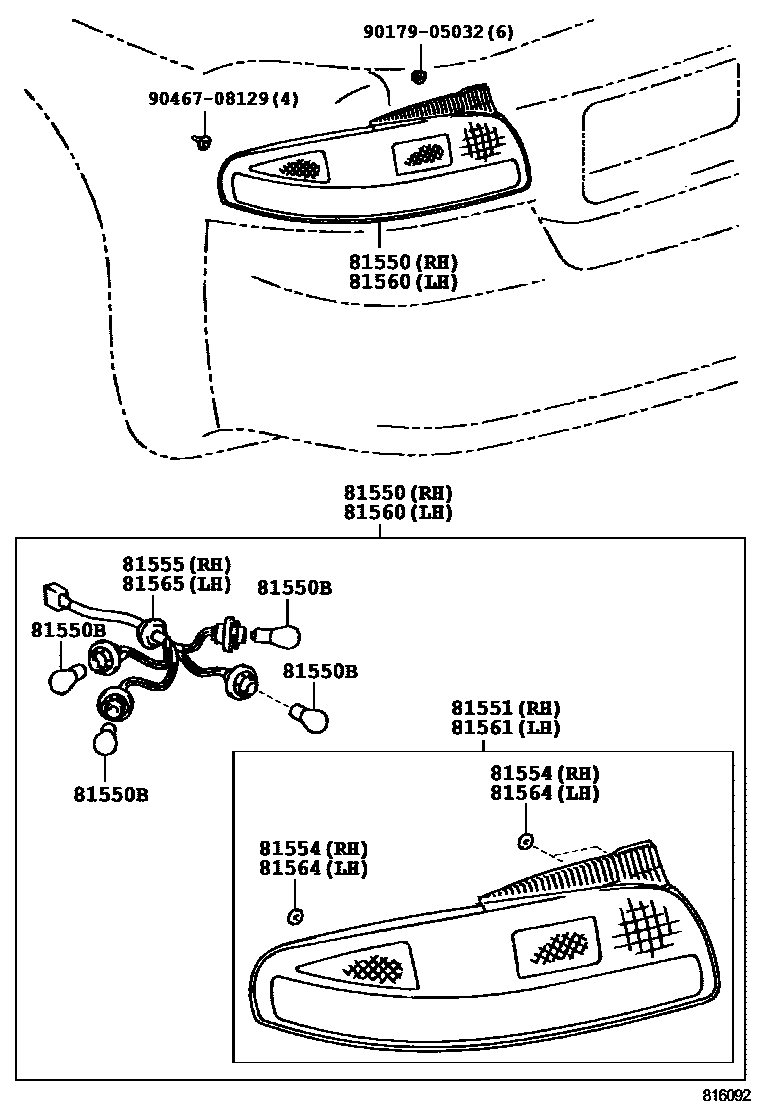

REAR COMBINATION LAMP
81550LAMP ASSY, REAR COMBINATION, RH
81550BBULB(FOR REAR COMBINATION LAMP)
12V 3.8W
12V 27W
12V 27/8W
81551LENS, REAR COMBINATION LAMP, RH
81554GASKET, REAR COMBINATION LAMP BODY, RH
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81560LAMP ASSY, REAR COMBINATION, LH
81561LENS, REAR COMBINATION LAMP, LH
81564GASKET, REAR COMBINATION LAMP BODY, LH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
9017905032
main90179-05032
9046708129
main90467-08129
11 parts on this diagram · 1 diagram in section
