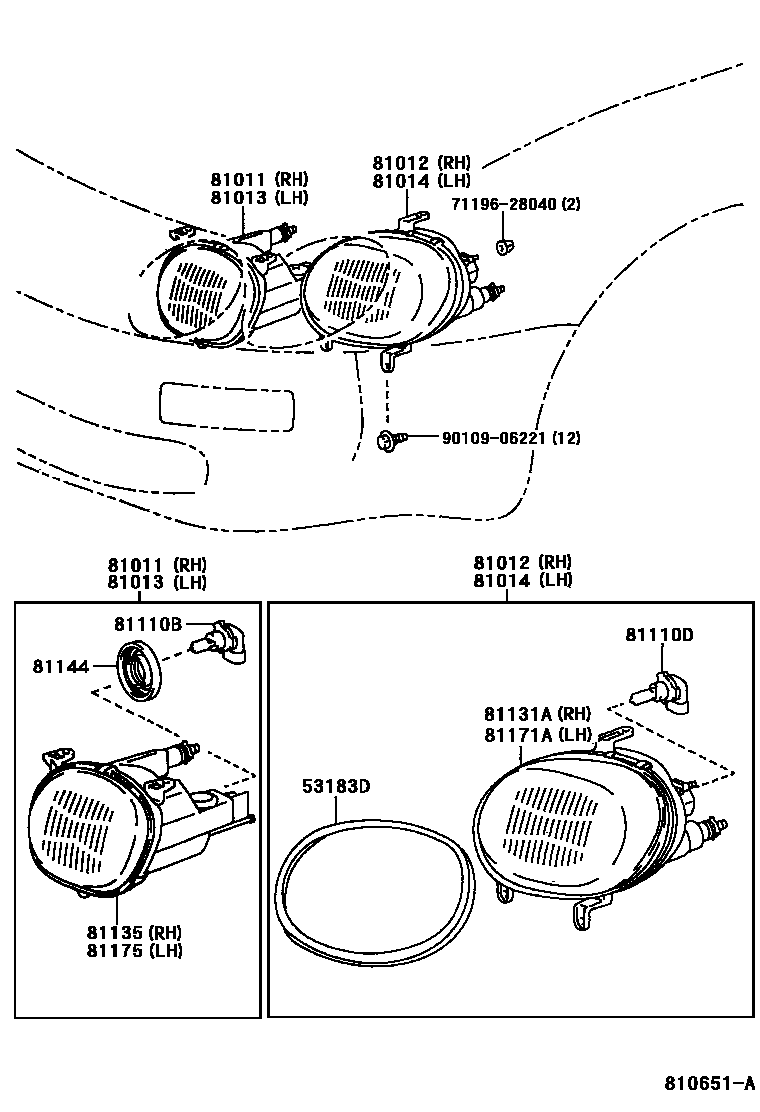

HEADLAMP

53183DSEAL, HEADLAMP COVER TO HOOD

main53183-20110iAT200,ST204199309

RH

main53184-20070iAT200,ST204199309

LH

81011HEADLAMP SUB-ASSY, NO.1

main81011-20020iAT200,ST204199309-199510

sub81011-20040

main81011-20040iAT200,ST204..CP,LB199508-199806

main81011-20041iST204199806

81012HEADLAMP SUB-ASSY, NO.2

main81012-20020iAT200,ST204199309-199510

sub81012-20070

main81012-20070iAT200,ST204..CP,LB199508-199806

main81012-20071iST204199806

81013HEADLAMP SUB-ASSY, TYPE 1, LH

main81013-20020iAT200,ST204199309-199510

sub81013-20040

main81013-20040iAT200,ST204..CP,LB199508-199806

main81013-20041iST204199806

81014HEADLAMP SUB-ASSY, TYPE 2, LH

main81014-20020iAT200,ST204199309-199510

sub81014-20070

main81014-20070iAT200,ST204..CP,LB199508-199806

main81014-20071iST204199806

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041iAT200,ST204199309

12V 65W

sub90981-13046

81110DBULB(FOR HEADLAMP, NO.2)

main90080-81040iAT200,ST204199309

12V 51W

sub90981-13047

81131AUNIT, HEADLAMP, RH

main81131-20020iAT200,ST204199309-199510

sub81131-20070

main81131-20070iAT200,ST204..CP,LB199508-199806

main81131-20071iST204199806

81135UNIT ASSY, HEADLAMP, RH

main81130-20020iAT200,ST204199309-199510

sub81130-20040

main81130-20040iAT200,ST204..CP,LB199508-199806

main81130-20041iST204199806

81144COVER, HEADLAMP, NO.1

main90075-99054iAT200,ST204..CP,LB199508-199510

81171AUNIT, HEADLAMP, LH

main81171-20020iAT200,ST204199309-199510

sub81171-20070

main81171-20070iAT200,ST204..CP,LB199508-199806

main81171-20071iST204199806

81175UNIT ASSY, HEADLAMP, LH

main81170-20020iAT200,ST204199309-199510

sub81170-20040

main81170-20040iAT200,ST204..CP,LB199508-199806

main81170-20041iST204199806

7119628040CLIP(FOR REAR SPOILER)

main71196-28040

9010906221

main90109-06221

14 parts on this diagram · 1 diagram in section
