ARMREST & VISOR

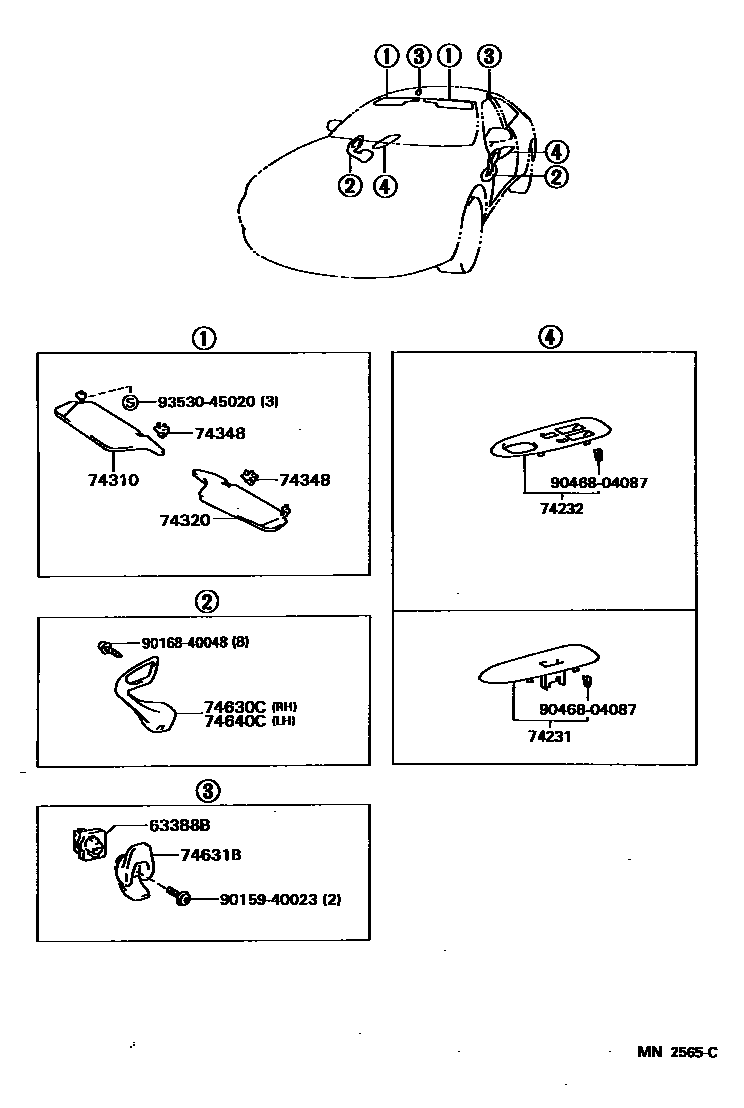

Parts diagram
63388BSTOPPER, ROOF HEADLINING TRIM CLIP
main63388-20030i199309
74231PANEL, FRONT ARMREST BASE, UPPER RH
main74231-20390-C0i199309
BLACK,TRIM0#,2#
main74231-20390-C0i199408
BLACK,TRIM2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
main74232-20250-C0i199309
BLACK,TRIM0#,2#
main74232-20250-C0i199408
BLACK,TRIM2#
74310VISOR ASSY, RH
main74310-2B430-A0i199508-199801
IVORY,TRIM0#
sub74310-2D170
main74310-2B430-B0i199508-199801
LT. GRAY,TRIM2#
sub74310-2D170
main74310-2B460-A0i199508-199606
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74310-2B870
main74310-2B460-B0i199508-199606
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74310-2B870
main74310-2B470-A0i199309-199408
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
main74310-2B470-B0i199309-199408
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),SHADOW GRAY,TRIM2#
main74310-2B472-A1i199408-199508
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
main74310-2B472-B1i199408-199508
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
main74310-2B490-A0i199311-199405
IVORY,TRIM0#
sub74310-2B490
main74310-2B490-A1i199405-199508
IVORY,TRIM0#
sub74310-2B490
main74310-2B490-B0i199311-199405
SHADOW GRAY,TRIM2#
sub74310-2B490
main74310-2B490-B1i199405-199508
LT. GRAY,TRIM2#
sub74310-2B490
main74310-2B570-C0i199408-199605
BLACK,TRIM2#
sub74310-2B830
main74310-2B830-C0i199605-199702
BLACK,TRIM2#
sub74310-2D010
main74310-2B830-C0i199611-199704
LIMITED EDITION,BLACK,TRIM0#
sub74310-2D010
main74310-2B870-A0i199606-199708
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74310-2B870
main74310-2B870-B1i199606-199708
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74310-2B870
main74310-2B890-A0i199702-199708
IVORY,TRIM0#
sub74310-2B891
main74310-2B890-B0i199702-199708
LT. GRAY,TRIM2#
sub74310-2B891
main74310-2B891-A0i199708-199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74310-2D190
main74310-2B891-A0i199708-199801
IVORY,TRIM0#
sub74310-2D190
main74310-2B891-B0i199708-199801
LT. GRAY,TRIM2#
sub74310-2D190
main74310-2B891-B0i199708-199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74310-2D190
main74310-2D010-C0i199702-199708
BLACK,TRIM2#
sub74310-2D040
main74310-2D040-C0i199708-199905
BLACK,TRIM2#
main74310-2D170-A0i199801-199908
IVORY,TRIM0#
main74310-2D170-B0i199801-199908
LT. GRAY,TRIM2#
main74310-2D190-A0i199801-199904
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74310-2D190
main74310-2D190-B0i199801-199904
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74310-2D190
74320VISOR ASSY, LH
main74320-2B300-A0i199309-199408
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
main74320-2B300-B0i199309-199408
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),SHADOW GRAY,TRIM2#
main74320-2B302-A1i199408-199508
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
main74320-2B302-B1i199408-199508
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
main74320-2B310-A0i199311-199405
IVORY,TRIM0#
sub74320-2B310
main74320-2B310-A1i199405-199508
IVORY,TRIM0#
sub74320-2B310
main74320-2B310-B0i199311-199405
SHADOW GRAY,TRIM2#
sub74320-2B310
main74320-2B310-B1i199405-199508
LT. GRAY,TRIM2#
sub74320-2B310
main74320-2B400-C0i199408-199605
BLACK,TRIM2#
sub74320-2B710
main74320-2B470-A0i199508-199801
IVORY,TRIM0#
sub74320-2B890
main74320-2B470-B0i199508-199801
LT. GRAY,TRIM2#
sub74320-2B890
main74320-2B500-A0i199508-199606
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74320-2B730
main74320-2B500-B0i199508-199606
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74320-2B730
main74320-2B640-A0i199702-199708
IVORY,TRIM0#
sub74320-2B641
main74320-2B640-B0i199702-199708
LT. GRAY,TRIM2#
sub74320-2B641
main74320-2B641-A0i199708-199801
IVORY,TRIM0#
sub74320-2D030
main74320-2B641-A0i199708-199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74320-2D030
main74320-2B641-B0i199708-199801
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74320-2D030
main74320-2B641-B0i199708-199801
LT. GRAY,TRIM2#
sub74320-2D030
main74320-2B690-C0i199702-199708
BLACK,TRIM2#
sub74320-2B780
main74320-2B710-C0i199611-199704
LIMITED EDITION,BLACK,TRIM0#
sub74320-2B690
main74320-2B710-C0i199605-199702
BLACK,TRIM2#
sub74320-2B690
main74320-2B730-A0i199606-199708
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74320-2B730
main74320-2B730-B0i199606-199708
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74320-2B730
main74320-2B780-C0i199708-199905
BLACK,TRIM2#
main74320-2B890-A0i199801-199908
IVORY,TRIM0#
main74320-2B890-B0i199801-199908
LT. GRAY,TRIM2#
main74320-2D030-A0i199801-199904
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),IVORY,TRIM0#
sub74320-2D030
main74320-2D030-B0i199801-199904
W(*80;DRIVER SIDE & *80;FRONT PASSENGER SIDE),LT. GRAY,TRIM2#
sub74320-2D030
74348HOLDER, VISOR
main74348-12020-C0i199408-199905
BLACK,TRIM2#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-12020-S3i199408-199510
LI.GRAY,TRIM2#
sub74348-12020
sub74348-60010
sub74348-26020
main74348-22020-A0i199309-199908
IVORY,TRIM0#
sub74348-22020
main74348-22020-B2i199309-199508
LI. GRAY,TRIM2#
sub74348-22020
main74348-22020-B6i199508-199908
LT.GRAY,TRIM2#
sub74348-22020
74630CGRIP ASSY, DOOR ASSIST, RH
main74630-20070-C0i199408
BLACK,TRIM2#
main74630-20070-C0i199309
BLACK,TRIM0#,2#
74631BHOOK, COAT
main74631-20060-22i199309
BLACK,TRIM0#,2#
sub74631-20060
74640CGRIP ASSY, DOOR ASSIST, LH
main74640-20070-C0i199309
SHADOW GRAY,TRIM0#,2#
main74640-20070-C0i199408
SHADOW GRAY,TRIM2#
9015940023
main90159-40023
9016840048
main90168-40048
9046804087
main90468-04087
9353045020
main93530-45020

13 parts on this diagram · 1 diagram in section
