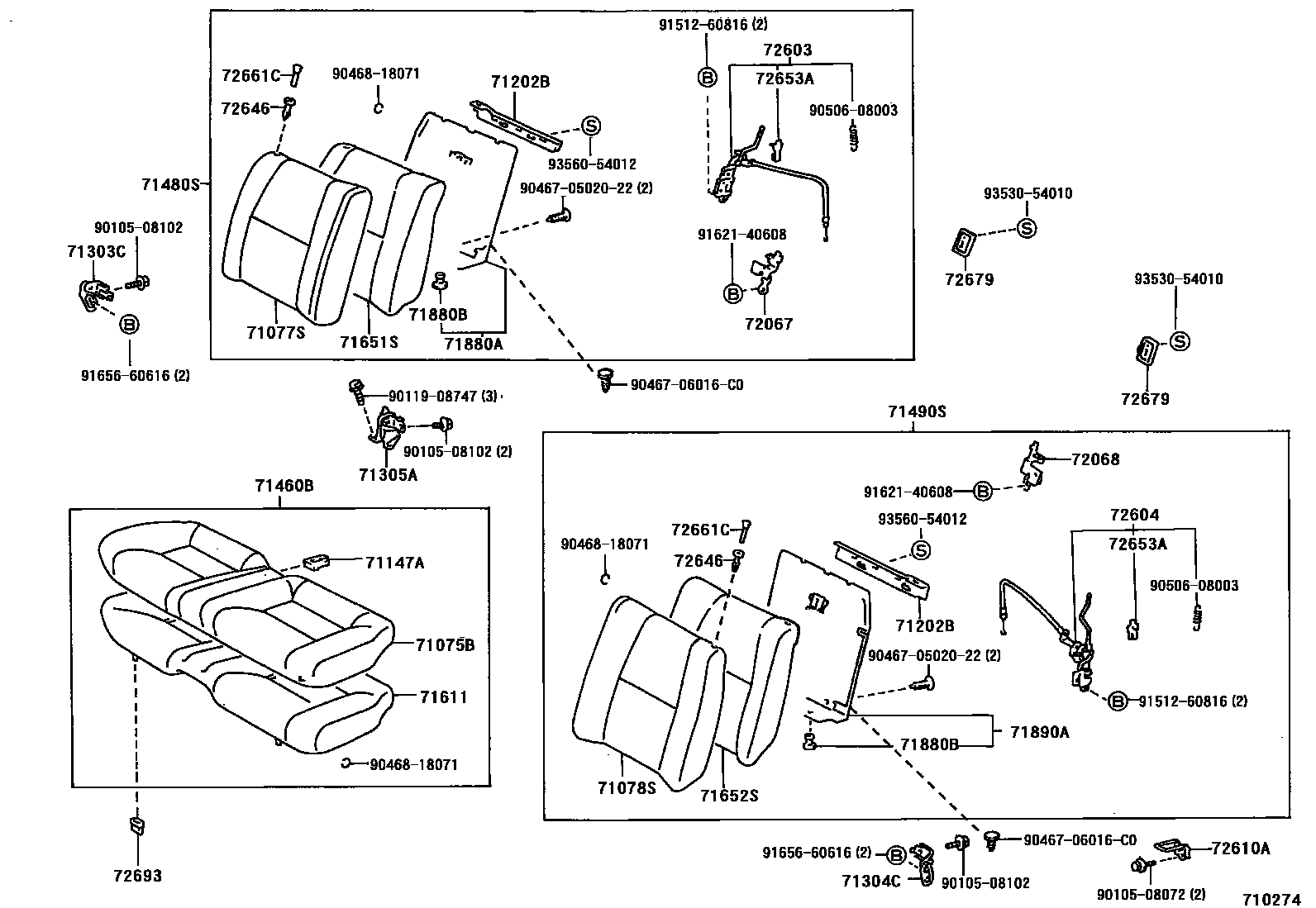

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71065-2B020-C0iST204..LB199508-199712

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B310-C0iST204..LB199309-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B340-A0iST204..CP,LB199309-199508

IV0RY,TRIM0#

main71065-2B340-C0iST204..CP,LB199309-199508

BLACK,TRIM2#

main71065-2B350-A0iAT200199309-199508

IV0RY,TRIM0#

main71065-2B350-C0iAT200199309-199508

BLACK,TRIM2#

main71065-2B360-A0iST204199309-199311

LEATHER,IV0RY,TRIM0#

sub71065-2B490¥77,500

main71065-2B360-C0iST204199309-199311

LEATHER,BLACK,TRIM2#

sub71065-2B490¥77,500

main71065-2B440-C0iST204..CVT199408-199510

BLACK,TRIM2#

main71065-2B490-A0iST204..CP,LB199311-199508

LEATHER,IV0RY,TRIM0#

main71065-2B490-C0iST204..CP,LB199311-199508

LEATHER,BLACK,TRIM2#

main71065-2B510-C0iST204..CVT199408-199905

LEATHER,BLACK,TRIM2#

main71065-2B530-A0iST204..CND199508-199712

IVORY,TRIM0#

main71065-2B530-A0iST204..CND199508-199712

W(FABRIC SEAT),IVORY,TRIM0#

main71065-2B530-C0iST204..(CP,LB)..USA199508-199712

BLACK,TRIM2#

main71065-2B530-C0iST204..CND199508-199712

W(FABRIC SEAT),BLACK,TRIM2#

main71065-2B540-A0iAT200199508-199712

IVORY,TRIM0#

main71065-2B540-C0iAT200199508-199712

BLACK,TRIM2#

main71065-2B540-C1iAT200..LB..USA199601-199602

25TH ANNIVERSARY,BLACK,TRIM20

main71065-2B580-C2iST204..GT..USA199712-199905

BLACK,TRIM2#

sub71065-2B580¥57,900

main71065-2B590-A0iST204..CVT199611-199704

IVORY,TRIM0#

main71065-2B590-C0iST204..CVT199510-199712

BLACK,TRIM2#

main71065-2B600-A0iST204..CP,LB199508-199712

LEATHER,IVORY,TRIM0#

sub71065-2B600

main71065-2B600-A1iST204..CP,LB199712-199908

LEATHER,IVORY,TRIM0#

sub71065-2B600

main71065-2B600-C0iST204..CP,LB199508-199712

LEATHER,BLACK,TRIM2#

sub71065-2B600

main71065-2B600-C1iST204..CP,LB199712-199908

LEATHER,BLACK,TRIM2#

sub71065-2B600

main71065-2B800-C0iST204..CP,LB199712-199908

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71065-2B880-A0iST204..CP,LB199712-199908

IVORY,TRIM0#

main71065-2B880-C0iST204..CP,LB199712-199908

SHADOW GRAY,TRIM2#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-2G200-C0iST204..LB199309-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71077-2G230-A0iST204..CP,LB199309-199508

IV0RY,TRIM0#

main71077-2G230-C0iST204..CP,LB199309-199508

BLACK,TRIM2#

main71077-2G240-C0iAT200199309-199508

BLACK,TRIM2#

main71077-2G250-A0iST204199309-199311

LEATHER,IV0RY,TRIM0#

sub71077-2G380¥50,600

main71077-2G250-C0iST204199309-199311

LEATHER,BLACK,TRIM2#

sub71077-2G380¥50,600

main71077-2G370-A0iAT200199309-199508

IVORY,TRIM0#

main71077-2G380-A0iST204..CP,LB199311-199606

LEATHER,IVORY,TRIM0#

main71077-2G380-C0iST204..CP,LB199311-199606

LEATHER,BLACK,TRIM2#

main71077-2G381-A1iST204..LB199606-199712

LEATHER,IVORY,TRIM0#

sub71077-2G381¥50,900

main71077-2G381-A2iST204..LB199712

LEATHER,IVORY,TRIM0#

sub71077-2G381¥50,900

main71077-2G381-C2iST204..LB199606-199712

LEATHER,BLACK,TRIM2#

sub71077-2G381¥50,900

main71077-2G381-C4iST204..LB199712

LEATHER,BLACK,TRIM2#

sub71077-2G381¥50,900

main71077-2G390-C0iST204..LB199508-199606

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71077-2G410-C0iST204..CP,LB199508-199606

BLACK,TRIM2#

main71077-2G411-C0iST204..LB199606-199712

GRAY,TRIM2#

main71077-2G420-C0iAT200199508-199606

BLACK,TRIM2#

sub71077-2G450

main71077-2G420-C1iAT200..LB..USA199601-199602

25TH ANNIVERSARY,BLACK,TRIM20

sub71077-2G450

main71077-2G421-C0iAT200..LB199606-199712

SHADOW GRAY,TRIM2#

main71077-2G440-A0iST204..CP,LB199508-199606

IVORY,TRIM0#

main71077-2G441-A0iST204..LB199606-199712

IVORY,TRIM0#

main71077-2G450-A0iAT200199508-199606

IVORY,TRIM0#

main71077-2G451-A0iAT200..LB199606-199712

IVORY,TRIM0#

main71077-2G710-A0iST204..CP199606-199712

LEATHER,IVORY,TRIM0#

sub71077-2G710¥39,400

main71077-2G710-A1iST204..CP199712-199808

LEATHER,IVORY,TRIM0#

sub71077-2G710¥39,400

main71077-2G710-C0iST204..CP199606-199712

BLACK,TRIM2#

sub71077-2G710¥39,400

main71077-2G710-C1iST204..CP199712-199808

LEATHER,BLACK,TRIM2#

sub71077-2G710¥39,400

main71077-2G720-C0iST204..LB199606-199712

BLACK,TRIM2#

main71077-2G721-C2iST204..LB199712

W(FABRIC SEAT),BLACK,TRIM2#

sub71077-2G392¥39,400

main71077-2G730-C0iST204..CP199606-199712

GRAY,TRIM2#

main71077-2G740-A0iST204..CP199606-199712

IVORY,TRIM0#

main71077-2G750-C0iAT200..CP199606-199712

SHADOW GRAY,TRIM2#

main71077-2G751-C1iST204..CP199712-199808

W(FABRIC SEAT),BLACK,TRIM2#

main71077-2G760-A0iAT200..CP199606-199712

IVORY,TRIM0#

main71077-2G870-C0iST204..LB199712

SHADOW GRAY,TRIM2#

main71077-2G880-C0iST204..CP199712-199808

SHADOW GRAY,TRIM2#

main71077-2G890-A0iST204..LB199712

IVORY,TRIM0#

main71077-2H010-A0iST204..CP199712-199808

IVORY,TRIM0#

71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71078-2B180-C0iST204..LB199309-199508

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71078-2B210-A0iST204..CP,LB199309-199508

IV0RY,TRIM0#

main71078-2B210-C0iST204..CP,LB199309-199508

BLACK,TRIM2#

main71078-2B220-C0iAT200199309-199508

BLACK,TRIM2#

main71078-2B230-A0iST204199309-199311

LEATHER,IV0RY,TRIM0#

sub71078-2B310¥50,600

main71078-2B230-C0iST204199309-199311

LEATHER,BLACK,TRIM2#

sub71078-2B310¥50,600

main71078-2B300-A0iAT200199309-199508

IVORY,TRIM0#

main71078-2B310-A0iST204..CP,LB199311-199606

W(LEATHER SEAT),IVORY,TRIM0#

main71078-2B310-C0iST204..CP,LB199311-199606

LEATHER,BLACK,TRIM2#

main71078-2B311-A1iST204..LB199606-199712

LEATHER,IVORY,TRIM0#

sub71078-2B311¥50,900

main71078-2B311-A2iST204..LB199712

LEATHER,IVORY,TRIM0#

sub71078-2B311¥50,900

main71078-2B311-C2iST204..LB199606-199712

LEATHER,BLACK,TRIM2#

sub71078-2B311¥50,900

main71078-2B311-C4iST204..LB199712

LEATHER,BLACK,TRIM2#

sub71078-2B311¥50,900

main71078-2B330-C0iST204..LB199508-199606

W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71078-2B350-C0iST204..CP,LB199508-199606

BLACK,TRIM2#

main71078-2B351-C0iST204..LB199606-199712

GRAY,TRIM2#

main71078-2B360-C0iAT200199508-199606

BLACK,TRIM2#

sub71078-2B390

main71078-2B360-C1iAT200..LB..USA199601-199602

25TH ANNIVERSARY,BLACK,TRIM20

sub71078-2B390

main71078-2B361-C0iAT200..LB199606-199712

SHADOW GRAY,TRIM2#

main71078-2B380-A0iST204..CP,LB199508-199606

IVORY,TRIM0#

main71078-2B381-A0iST204..LB199606-199712

IV0RY,TRIM0#

main71078-2B390-A0iAT200199508-199606

IVORY,TRIM0#

main71078-2B391-A0iAT200..LB199608-199712

IVORY,TRIM0#

main71078-2B550-A0iST204..CP199606-199712

LEATHER,IVORY,TRIM0#

sub71078-2B550¥39,400

main71078-2B550-A1iST204..CP199712-199808

LEATHER,IVORY,TRIM0#

sub71078-2B550¥39,400

main71078-2B550-C0iST204..CP199606-199712

BLACK,TRIM2#

sub71078-2B550¥39,400

main71078-2B550-C1iST204..CP199712-199808

LEATHER,BLACK,TRIM2#

sub71078-2B550¥39,400

main71078-2B560-C0iST204..LB199606-199712

BLACK,TRIM2#

main71078-2B561-C2iST204..LB199712

W(FABRIC SEAT),BLACK,TRIM2#

sub71078-2B332¥39,400

main71078-2B570-C0iST204..CP199606-199712

GRAY,TRIM2#

main71078-2B580-A0iST204..CP199606-199712

IVORY,TRIM0#

main71078-2B590-C0iAT200..CP199606-199712

SHADOW GRAY,TRIM2#

main71078-2B591-C1iST204..CP199712-199808

BLACK,TRIM2#

main71078-2B600-A0iAT200..CP199606-199712

IVORY,TRIM0#

main71078-2B670-C0iST204..LB199712

SHADOW GRAY,TRIM2#

main71078-2B680-C0iST204..CP199712-199808

SHADOW GRAY,TRIM2#

main71078-2B690-A0iST204..LB199712

IVORY,TRIM0#

main71078-2B700-A0iST204..CP199712-199808

IVORY,TRIM0#

71147ASILENCER, REAR SEAT SPRING

main71147-16020iAT200,ST204..CP,LB¥170199309-199508

71202BPANEL, REAR SEATBACK

main71202-20030iAT200,ST204..CP,LB¥3,210199309-199606

RH

main71203-20040iAT200,ST204..CP,LB¥3,210199309-199606

LH

71303CHINGE SUB-ASSY, REAR SEATBACK, RH

main71303-20080iAT200,ST204..CP,LB¥2,550199309-199606

main71303-20140iAT200,ST204..CP,LB¥2,560199606

71304CHINGE SUB-ASSY, REAR SEATBACK, LH

main71303-20080iAT200,ST204..CP,LB¥2,550199309-199606

main71303-20140iAT200,ST204..CP,LB¥2,560199606

71305AHINGE SUB-ASSY, REAR SEATBACK, CENTER

main71305-20180iAT200,ST204..CP,LB¥4,950199309-199606

main71305-20220iAT200,ST204..CP,LB¥5,900199606

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-2D140-C0iST204..CP,LB199712-199908

***,W(FABRIC SEAT),BLACK,TRIM2#

main71460-2D160-A0iST204..CP,LB199712-199908

***,IVORY,TRIM0#

main71460-2D160-C0iST204..CP,LB199712-199908

***,SHADOW GRAY,TRIM2#

main71560-2B470-C0iST204..LB199608-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71560-2B660-C0iST204..CVT199608-199905

***,W(LEATHER SEAT),BLACK,TRIM2#

main71560-2B680-A0iST204..(CP,LB)..USA199608-199712

***,W(FABRIC SEAT),IVORY,TRIM0#

sub71560-2B680

main71560-2B680-A0iST204..CND199608-199712

***,IVORY,TRIM0#

sub71560-2B680

main71560-2B680-C1iST204..(CP,LB)..USA199608-199712

***,W(FABRIC SEAT),BLACK,TRIM2#

sub71560-2B680

main71560-2B680-C1iST204..CND199608-199712

***,BLACK,TRIM2#

sub71560-2B680

main71560-2B690-A0iAT200199608-199712

***,IVORY,TRIM0#

main71560-2B690-C0iAT200199608-199712

***,BLACK,TRIM2#

main71560-2B730-A0iST204..CP,LB199608-199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71560-2B730

main71560-2B730-A1iST204..CP,LB199712-199908

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71560-2B730

main71560-2B730-C1iST204..CP,LB199608-199908

***,W(LEATHER SEAT),BLACK,TRIM2#

sub71560-2B730

main71560-2B750-C2iST204..GT..USA199712-199905

***,BLACK,TRIM2#

sub71560-2B750¥105,000

main71560-2B760-A0iST204..CVT199611-199704

IVORY,TRIM0#

main71560-2B760-C0iST204..CVT199608-199712

***,BLACK,TRIM2#

71480SBACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE)

main71480-2G771-A0iST204..LB..USA199608-199712

***,IVORY,TRIM0#

sub71480-2G771

main71480-2G771-A0iST204..CND199608-199712

***,W(FABRIC SEAT),IVORY,TRIM0#

sub71480-2G771

main71480-2G771-C1iST204..LB199608-199712

***,GRAY,TRIM2#

sub71480-2G771

main71480-2G881-A0iAT200..LB199608-199712

***,IVORY,TRIM0#

main71480-2G881-C0iAT200..LB199608-199712

***,BLACK,TRIM2#

main71480-2G891-C0iST204..CND199608-199712

***,BLACK,TRIM2#

main71480-2G891-C0iST204..CND199608-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71480-2G892-C2iST204..LB199712

***,W(FABRIC SEAT),BLACK,TRIM2#

main71480-2H051-A0iAT200..CP199608-199712

***,IVORY,TRIM0#

main71480-2H051-C0iAT200..CP199608-199712

***,SHADOW GRAY,TRIM2#

main71480-2H052-C1iST204..CP199712-199808

***,W(FABRIC SEAT),BLACK,TRIM2#

main71480-2H061-A0iST204..LB199608-199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71480-2H061

main71480-2H061-A1iST204..LB199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71480-2H061

main71480-2H061-C1iST204..LB199608

***,W(LEATHER SEAT),BLACK,TRIM2#

sub71480-2H061

main71480-2H071-A0iST204..CP199608-199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71480-2H071

main71480-2H071-A1iST204..CP199712-199808

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71480-2H071

main71480-2H071-C0iST204..CP199608-199712

***,BLACK,TRIM2#

sub71480-2H071

main71480-2H071-C1iST204..CP199712-199808

***,W(LEATHER SEAT),BLACK,TRIM2#

sub71480-2H071

main71480-2H081-A0iST204..CP199608-199712

***,IVORY,TRIM0#

main71480-2H081-C0iST204..CP199608-199712

***,GRAY,TRIM2#

main71480-2H460-A0iST204..LB199712

***,IVORY,TRIM0#

main71480-2H460-C0iST204..LB199712

***,SHADOW GRAY,TRIM2#

main71480-2H470-A0iST204..CP199712-199808

***,IVORY,TRIM0#

main71480-2H470-C0iST204..CP199712-199808

***,SHADOW GRAY,TRIM2#

71490SBACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE)

main71490-2B781-A0iST204..LB..USA199608-199712

***,W(FABRIC SEAT),IVORY,TRIM0#

sub71490-2B781

main71490-2B781-A0iST204..CND199608-199712

***,IVORY,TRIM0#

sub71490-2B781

main71490-2B781-C1iST204..LB199608-199712

***,GRAY,TRIM2#

sub71490-2B781

main71490-2B791-A0iAT200..LB199608-199712

***,IVORY,TRIM0#

main71490-2B791-C0iAT200..LB199608-199712

***,BLACK,TRIM2#

main71490-2B801-C0iST204..CND199608-199712

***,BLACK,TRIM2#

main71490-2B801-C0iST204..CND199608-199712

***,W(SPORTS SEAT & FABRIC SEAT),BLACK,TRIM2#

main71490-2B802-C2iST204..LB199712

***,W(FABRIC SEAT),BLACK,TRIM2#

main71490-2B851-A0iAT200..CP199608-199712

***,IVORY,TRIM0#

main71490-2B851-C0iAT200..CP199608-199712

***,SHADOW GRAY,TRIM2#

main71490-2B852-C1iST204..CP199712-199808

***,W(FABRIC SEAT),BLACK,TRIM2#

main71490-2B861-A0iST204..LB199608-199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71490-2B861

main71490-2B861-A1iST204..LB199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71490-2B861

main71490-2B861-C1iST204..LB199608

***,W(LEATHER SEAT),BLACK,TRIM2#

sub71490-2B861

main71490-2B871-A0iST204..CP199608-199712

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71490-2B871

main71490-2B871-A1iST204..CP199712-199808

***,W(LEATHER SEAT),IVORY,TRIM0#

sub71490-2B871

main71490-2B871-C0iST204..CP199608-199712

***,BLACK,TRIM2#

sub71490-2B871

main71490-2B871-C1iST204..CP199712-199808

***,W(LEATHER SEAT),BLACK,TRIM2#

sub71490-2B871

main71490-2B881-A0iST204..CP199608-199712

***,W(FABRIC SEAT),IVORY,TRIM0#

main71490-2B881-C0iST204..CP199608-199712

***,GRAY,TRIM2#

main71490-2D230-A0iST204..LB199712

***,IVORY,TRIM0#

main71490-2D230-C0iST204..LB199712

***,SHADOW GRAY,TRIM2#

main71490-2D240-A0iST204..CP199712-199808

***,IVORY,TRIM0#

main71490-2D240-C0iST204..CP199712-199808

***,SHADOW GRAY,TRIM2#

71611PAD, REAR SEAT CUSHION

main71503-20070iAT200,ST204..CP,LB¥27,800199309

main71611-20540iST204..CVT¥24,900199408

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71507-20230iAT200,ST204..CP,LB¥24,900199309-199606

main71651-20750iAT200,ST204..CP,LB¥15,300199606

71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)

main71508-20050iAT200,ST204..CP,LB¥24,900199309-199606

main71652-20490iAT200..CP;ST204..CP,LB¥15,300199606

71880ACARPET ASSY, REAR SEATBACK BOARD, RH

main71880-20250-C0iAT200,ST204..LB199309-199606

BLACK,TRIM0#,2#

main71880-20260-C1iAT200,ST204..CP199309-199508

BLACK,TRIM0#,2#

main71880-20340-C0iAT200,ST204..CP199508-199606

BLACK,TRIM0#,2#

71880BCLIP(FOR REAR SEATBACK CARPET)

main90467-05083iAT200;ST204..(CP,LB)..GT¥300199309

71890ACARPET ASSY, REAR SEATBACK BOARD, LH

main71890-20180-C0iAT200,ST204..LB199309-199606

BLACK,TRIM0#,2#

main71890-20190-C1iAT200,ST204..CP199309-199508

BLACK,TRIM0#,2#

main71890-20270-C0iAT200,ST204..CP199508-199606

BLACK,TRIM0#,2#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-20040iAT200,ST204..CP,LB¥990199309-199508

main72067-20070iAT200,ST204..CP,LB¥940199508-199606

main72067-20080iAT200,ST204..CP,LB¥1,000199606

72068LEVER SUB-ASSY, REAR BACK LOCK CONTROL, LH

main72068-20040iAT200,ST204..CP,LB¥990199309-199508

main72068-20070iAT200,ST204..CP,LB¥940199508-199606

main72068-20080iAT200,ST204..CP,LB¥1,000199606

72603LOCK SUB-ASSY, REAR SEATBACK, RH

main72630-20190iAT200,ST204..CP,LB¥2,170199309-199606

main72630-20230iAT200,ST204..CP,LB¥4,160199606

72604LOCK SUB-ASSY, REAR SEATBACK, LH

main72640-20180iAT200,ST204..CP,LB¥2,170199309-199606

main72640-20230iAT200,ST204..CP,LB¥4,160199606

72610ASTRIKER ASSY, REAR SEATBACK LOCK

main72601-20050iAT200,ST204..CP,LB¥1,420199309

sub72610-20020¥2,220

72646GROMMET, REAR SEATBACK STOP BUTTON

main72646-20020-A0iAT200,ST204..CP,LB199309

IVORY,TRIM0#

sub72646-20020¥600

main72646-20020-C0iST204..CP,LB199309-199508

BLACK,TRIM2#

sub72646-20020¥600

main72646-20020-C0iST204..CP,LB199309-199508

BLACK,TRIM0#,2#

sub72646-20020¥600

72653ASNAP, REAR SEATBACK LOCK ROD

main69759-24010iAT200,ST204..CP,LB¥180199309

WHITE

main69759-24020iAT200,ST204..CP,LB¥180199309

BLUE

72661CBUTTON, REAR SEATBACK LOCK RELEASE

main72661-12010-A0iAT200,ST204..CP,LB199309-199908

IVORY,TRIM0#

sub72661-12010¥740

main72661-12010-C0iST204..CP,LB199309-199508

BLACK,TRIM0#,2#

sub72661-12010¥740

main72661-12010-C0iAT200199309-199908

BLACK,TRIM2#

sub72661-12010¥740

72679BEZEL, REAR SEATBACK LOCK CONTROL

main72679-20020-C0iAT200,ST204..CP,LB199309

BLACK,TRIM0#,2#

sub72679-20020¥1,090

72693HOOK, REAR SEAT CUSHION LOCK

main72693-20060iAT200,ST204¥180199309

9010508072

main90105-08072¥120

9010508102

main90105-08102¥160

9011908747

main90119-08747¥140

904670502022

main90467-0502022

9046706016C0

main90467-06016C0

9046818071

main90468-18071¥160

9050608003

main90506-08003¥210

9151260816

main91512-60816¥120

9162140608

main91621-40608¥60

9165660616

main91656-60616¥130

9353054010

main93530-54010¥70

9356054012

main93560-54012¥60

39 parts on this diagram · 3 diagrams in section
