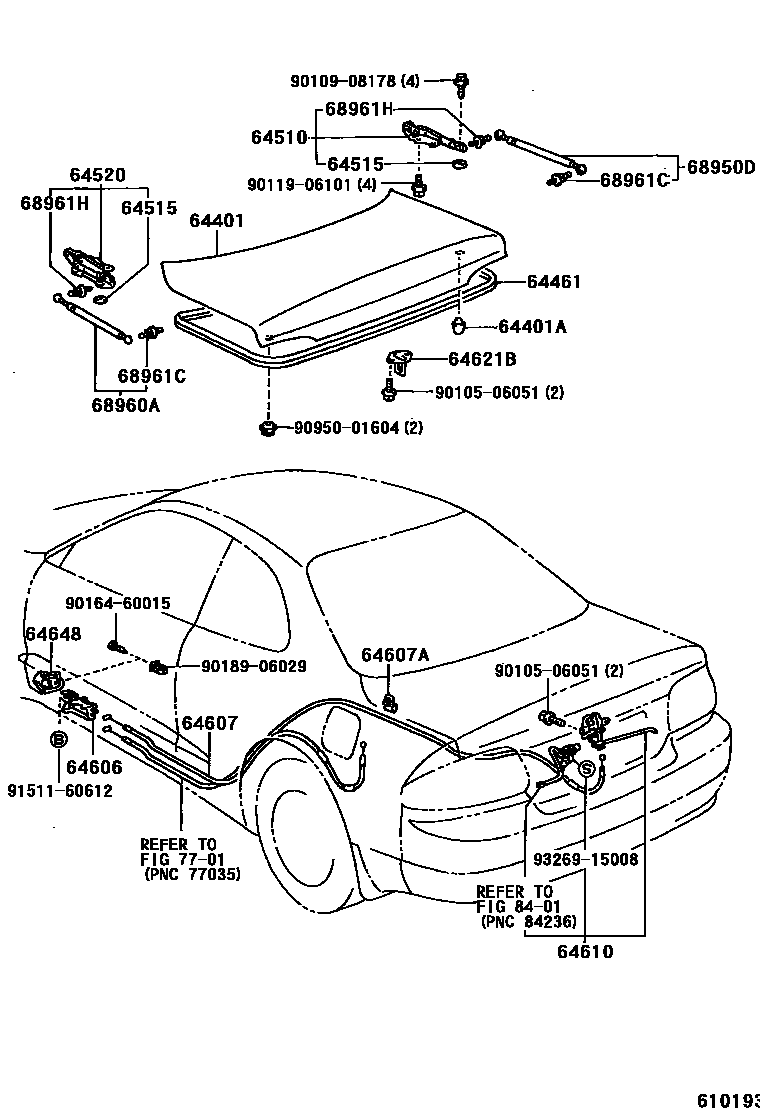

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-2B680iAT200,ST204..CP,CVT¥42,900199309

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09075iAT200,ST204..CP¥200199309-199510

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-20380iAT200,ST204..CP,CVT¥6,800199309-199510

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-20180iAT200,ST204..CP¥2,840199309

main64510-20210iST204..CVT¥2,840199408

64515PAD, LUGGAGE DOOR HINGE

main64515-20080iAT200,ST204..CP¥320199309

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-20170iAT200,ST204..CP¥2,840199309

main64520-20200iST204..CVT¥2,840199408

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-20170iAT200,ST204..CP,CVT¥4,500199309-199508

sub64606-20171¥4,550

main64606-20171iAT200,ST204..CP,CVT¥4,550199508

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-20890iAT200,ST204..CP,CVT¥2,440199309

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010iAT200,ST204..CP,CVT¥140199309

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-20240iAT200,ST204..CP,CVT¥3,000199309

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64620-20180iAT200,ST204..CP,CVT¥1,550199309

sub64620-32050¥1,550

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-20010iAT200,ST204..CP,CVT¥790199309

68950DSTAY ASSY, LUGGAGE DOOR, RH

main68950-80032iAT200,ST204..CP,CVT¥9,400199309

68960ASTAY ASSY, LUGGAGE DOOR, LH

main68950-80032iAT200,ST204..CP,CVT¥9,400199309

68961CBOLT, LUGGAGE DOOR STAY

main68961-20130iAT200,ST204..CP,CVT¥350199309

68961HBOLT, LUGGAGE DOOR STAY

main68961-20120iAT200,ST204..CP,CVT¥460199309

7701

8401

9010506051

main90105-06051¥160

9010908178

main90109-08178¥140

9011906101

main90119-06101¥130

9016460015

main90164-60015¥220

9018906029

main90189-06029¥100

9095001604

main90950-01604¥110

9151160612

main91511-60612¥110

9326915008

main93269-15008¥60

26 parts on this diagram · 1 diagram in section
