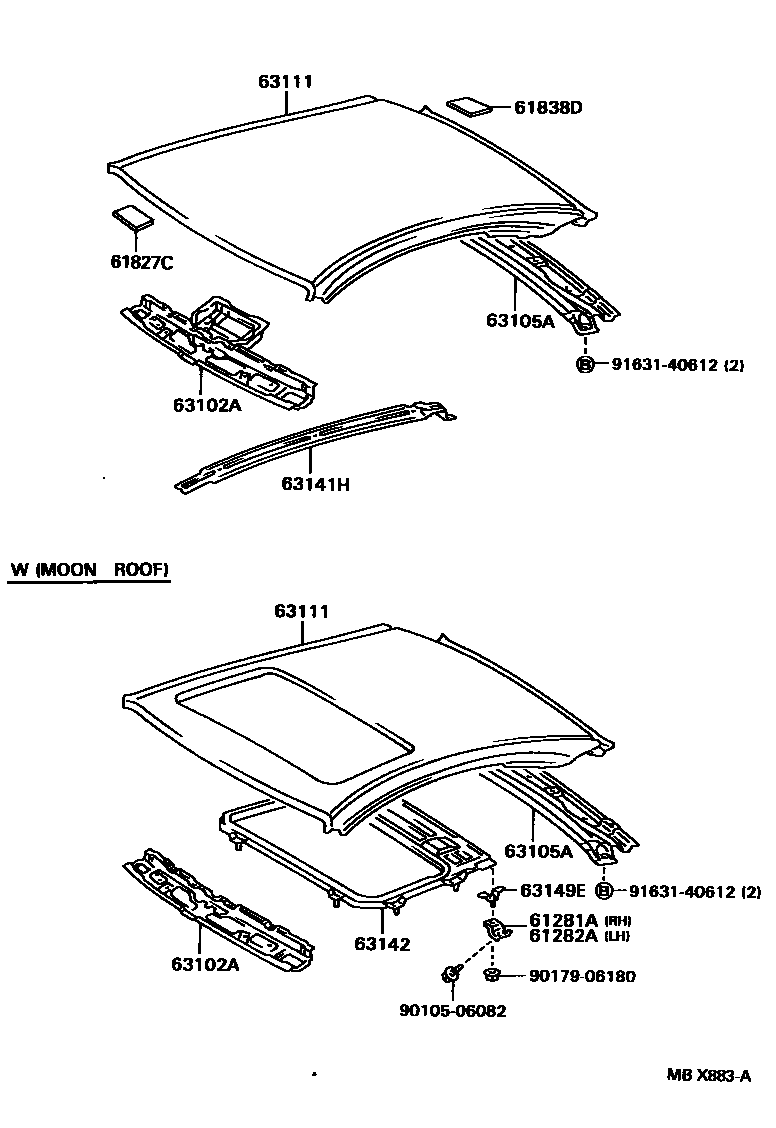

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1 0003 1 0004 1

61281ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1

main61281-20050iAT200,ST204..CP,LB¥350199309

T=2.0

main61281-20080iAT200,ST204¥350199309-199312

T=3.0

sub61281-20050¥350

61282ABRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.2

main61282-20020iAT200,ST204..CP,LB¥350199309

T=2.0

main61282-20030iAT200,ST204¥350199309-199312

T=3.0

sub61282-20020¥350

61827CPLATE, NOISE CONTROL, NO.4

main61827-20040iAT200,ST204..CP,LB¥1,120199309

61838DPLATE, NOISE CONTROL, NO.5

main61838-20060iAT200,ST204..CP,LB¥260199309

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-20280iAT200,ST204..CP,LB¥3,460199309

main63102-20290iAT200,ST204..CP,LB¥3,140199309

W(MOON ROOF)

main63132-20230iST204..CVT¥2,260199408

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-20100iAT200,ST204..LB¥8,900199309

63111PANEL, ROOF

main63111-20510iAT200,ST204..LB¥30,100199309

main63111-20520iAT200,ST204..LB¥30,100199309

W(MOON ROOF)

main63111-20530iAT200,ST204..CP,CVT¥32,900199309

main63111-20540iAT200,ST204..CP¥32,900199309

W(MOON ROOF)

63141HREINFORCEMENT, ROOF PANEL, CENTER

main63141-20180iAT200,ST204..LB¥2,790199309

main63141-20190iAT200,ST204..CP¥3,370199309

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-20090iAT200,ST204..CP,LB¥11,800199309

63149EBRACKET, ROOF PANEL REINFORCEMENT, NO.2

main63149-20040iAT200,ST204..LB¥350199309

main63149-20050iAT200,ST204..CP¥350199309

9010506082

main90105-06082¥80

9017906180

main90179-06180¥140

9163140612

main91631-40612¥120

13 parts on this diagram · 4 diagrams in section
