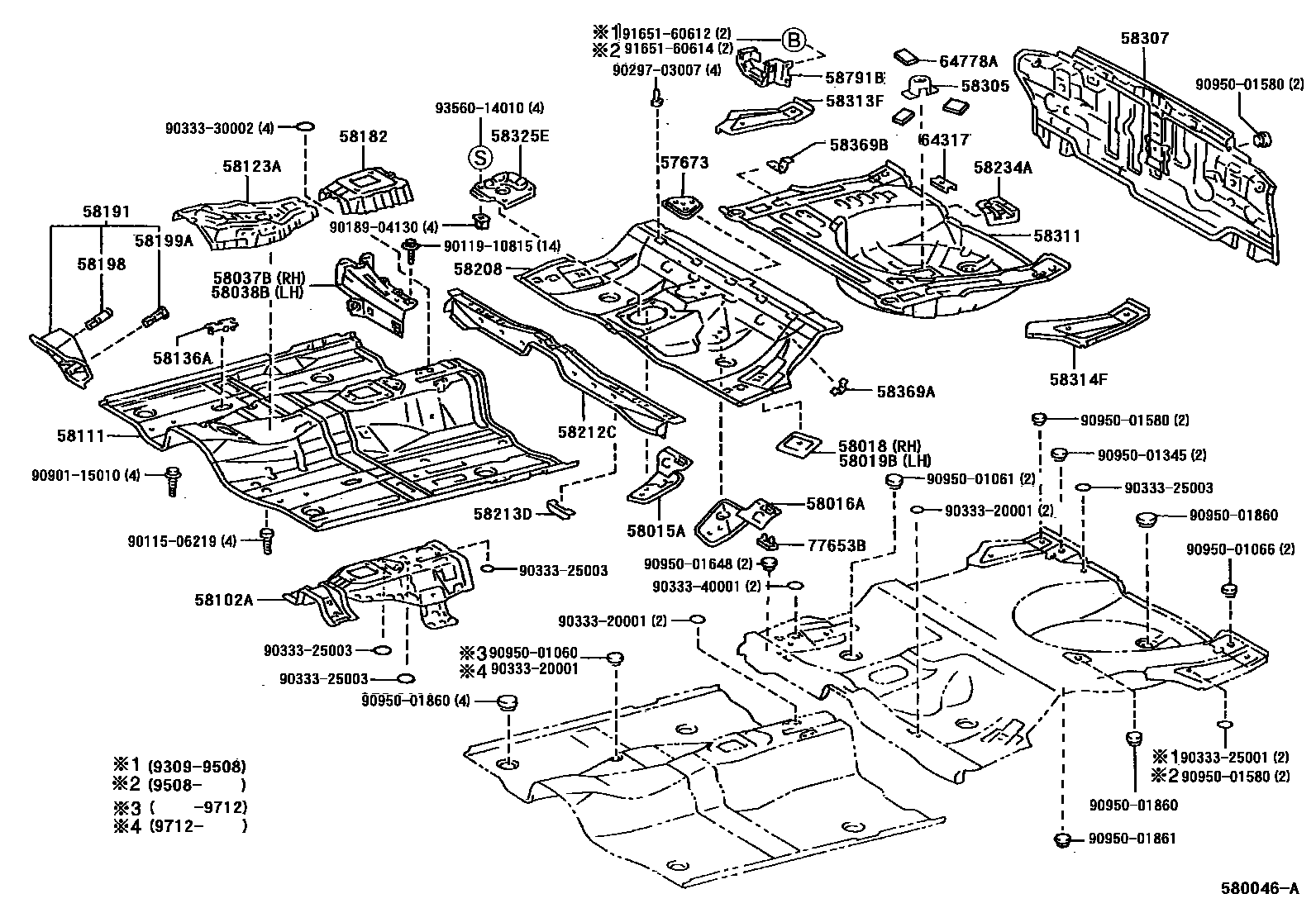

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1

57673BRACKET, REAR SEATBACK HINGE MOUNTING

main57673-20060iAT200,ST204..CP,LB199309-199605

main57673-20100iAT200,ST204..CP,LB199605-199606

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-20090iAT200,ST204199309

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-20080iAT200,ST204199309

58018REINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 RH

main58018-20020iAT200,ST204199309

58019BREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.4 LH

main58019-20020iAT200,ST204199309

58037BREINFORCE, CENTER PILLAR TO FLOOR, RH

main58037-20010iAT200,ST204..CP,LB199508

58038BREINFORCE, CENTER PILLAR TO FLOOR, LH

main58038-20010iAT200,ST204..CP,LB199508

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-20150iAT200,ST204199309

58111PAN, FRONT FLOOR

main58111-20170iAT200,ST204199309-199712

sub58111-20230

main58111-20230iST204199712

58123ASUPPORT, SHIFT & SELECT LEVER

main58123-20090iAT200,ST204199309

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-33010iAT200,ST204199309

58182BRACKET, FRONT SEAT INSIDE MOUNTING, FRONT LH

main58182-20070iAT200,ST204199309-199510

sub58182-20090

main58182-20090iAT200,ST204..CP,LB199508-199510

58191FOOTREST, FRONT FLOOR

main58192-20060iAT200,ST204199309

58198CLIP, FOOTREST

main58198-20150iAT200,ST204199309

58199ACLIP, FOOTREST, NO.2

main58199-20030iAT200,ST204199309

58208PAN, CENTER FLOOR

main58211-20370iAT200,ST204..CP,LB199309-199605

main58211-20380iST204..CVT199408

main58211-20450iAT200..CP;ST204..ST;ST204..CP..GT199605-199606

58212CPAN, CENTER FLOOR, FRONT

main58212-20070iAT200,ST204199309-199510

sub58212-20100

sub90333-25001

main58212-20100iAT200,ST204..CP,LB199508-199510

58213DREINFORCEMENT, CENTER FLOOR PANEL

main58213-20110iAT200,ST204..CP,LB199508

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-20070iAT200,ST204199309

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58305-10011iAT200,ST204199309

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-2B140iAT200,ST204..LB199309

main58307-2B160iAT200,ST204..CP,CVT199309

58311PAN, REAR FLOOR

main58311-20330iAT200,ST204199309-199510

main58311-20370iAT200,ST204..CP199508-199510

58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH

main58313-20360iAT200,ST204199309

58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH

main58314-20330iAT200,ST204199309

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-20070iAT200,ST204199309

58369ABRACKET, FUEL TUBE, NO.3

main58369-20010iAT200,ST204199309

58369BBRACKET, FUEL TUBE, NO.3

main58369-20020iAT200,ST204199309

58791BCARRIER, JACK

main58791-20120iAT200,ST204199309

64317REINFORCEMENT, SEAT BELT ANCHORAGE TO PACKAGE TRAY

main64317-20060iAT200,ST204..LB199309

64778APROTECTOR, SPARE WHEEL

main64778-20080iAT200,ST204..USA199406

sub64778-21010

77653BCUSHION, FUEL TANK, NO.3

main77653-20071iAT200,ST204199309

9011506219

main90115-06219

9011910815

main90119-10815

9018904130

main90189-04130

9029703007

main90297-03007

9033320001

main90333-20001

9033325001

main90333-25001

9033325003

main90333-25003

9033330002

main90333-30002

9033340001

main90333-40001

9090115010

main90901-15010

9095001060

main90950-01060

9095001061

main90950-01061

9095001066

main90950-01066

9095001345

main90950-01345

9095001580

main90950-01580

9095001648

main90950-01648

9095001860

main90950-01860

9095001861

main90950-01861

9165160612

main91651-60612

9165160614

main91651-60614

9356014010

main93560-14010

52 parts on this diagram · 3 diagrams in section
