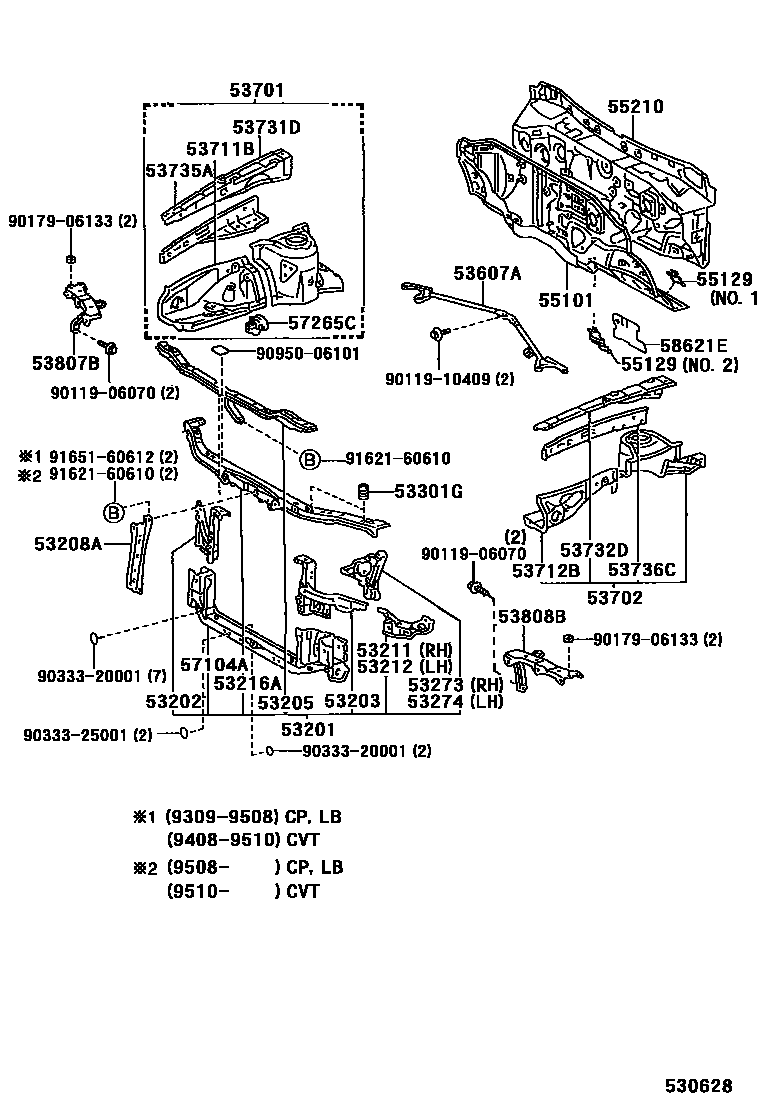

FRONT FENDER APRON & DASH PANEL
53201SUPPORT SUB-ASSY, RADIATOR
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53208ASUPPORT SUB-ASSY, HOOD LOCK
53211SUPPORT, RADIATOR, RH
53212SUPPORT, RADIATOR, LH
53216ASUPPORT, RADIATOR, UPPER
53273BRACKET, FRONT BUMPER ARM MOUNTING, RH
53274BRACKET, FRONT BUMPER ARM MOUNTING, LH
53301GCUSHION, HOOD BUMPER
sub90541-15022
53607ABRACE SUB-ASSY, FRONT SUSPENSION, UPPER CENTER
53701APRON SUB-ASSY, FRONT FENDER, RH
53702APRON SUB-ASSY, FRONT FENDER, LH
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53807BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH
53808BREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH
55101PANEL SUB-ASSY, DASH
sub55101-2B948
55129COVER, DASH PANEL HOLE
NO.1
NO.2
57104AMEMBER SUB-ASSY, FRONT CROSS
57265CBRACKET, ENGINE MOUNTING, RH
58621EPAD, FRONT FLOOR SILENCER
9011906070
main90119-06070
9011910409
main90119-10409
9017906133
main90179-06133
9033320001
main90333-20001
9033325001
main90333-25001
9095006101
main90950-06101
9162160610
main91621-60610
9165160612
main91651-60612
36 parts on this diagram · 1 diagram in section
