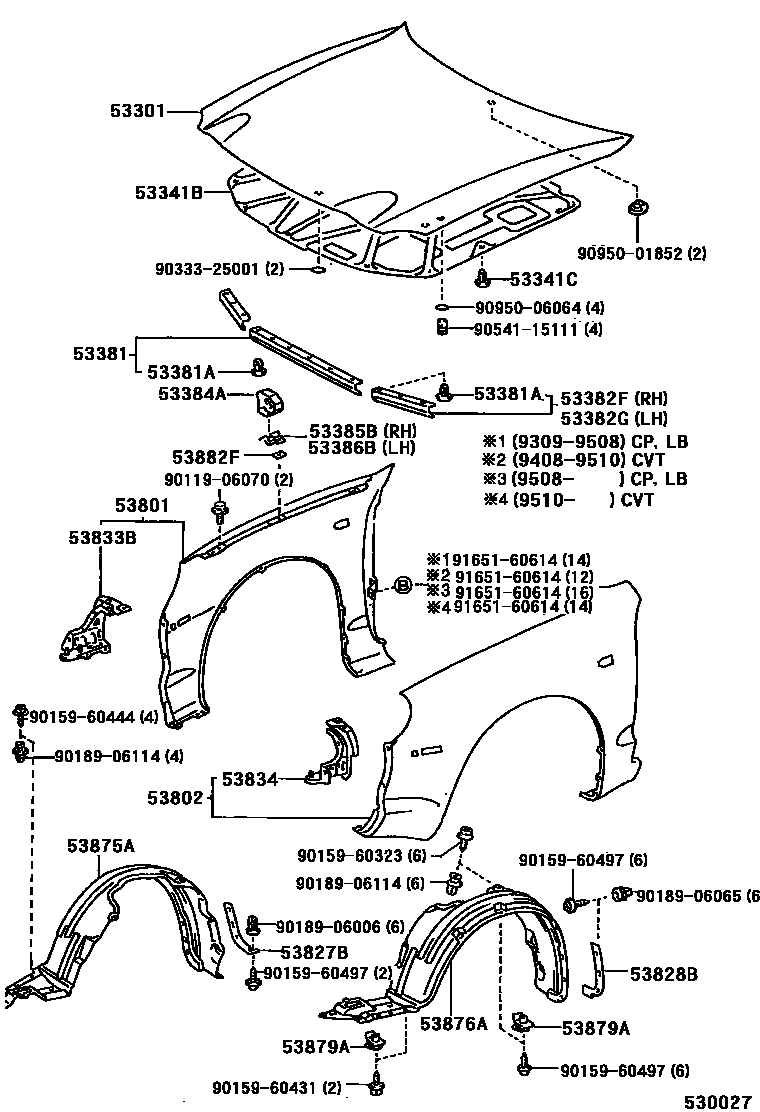

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-20480iAT200,ST204199309

53341BINSULATOR, HOOD

main53341-20250iST204199309-199712

53341CCLIP(FOR HOOD INSULATOR)

main90467-08081iST204199309-199712

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-20140iAT200,ST204199309

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iAT200,ST204199309

53382FSEAL, HOOD TO RADIATOR SUPPORT, RH

main53382-20040iAT200,ST204199309

53382GSEAL, HOOD TO RADIATOR SUPPORT, LH

main53382-20040iAT200,ST204199309

53384ABUMPER, FENDER TO HOOD

main53384-34010iAT200,ST204199309

53385BBRACKET, FENDER TO HOOD BUMPER, RH

main53386-20020iAT200,ST204199309

53386BBRACKET, FENDER TO HOOD BUMPER, LH

main53385-20020iAT200,ST204199309

53801FENDER SUB-ASSY, FRONT RH

main53801-2B330iAT200,ST204..CP,LB199309

main53801-2B410iST204..CVT199408

53802FENDER SUB-ASSY, FRONT LH

main53802-2B330iAT200,ST204..CP,LB199309

main53802-2B410iST204..CVT199408

53827BPROTECTOR, FRONT FENDER SIDE PANEL

main53827-20060iAT200,ST204..USA199309-199508

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-20060iAT200,ST204..USA199309-199508

53833BPANEL, FRONT FENDER SIDE, RH

main53831-20120iAT200,ST204199309

53834PANEL, FRONT FENDER SIDE, LOWER LH

main53832-20120iAT200,ST204199309

53875ALINER, FRONT FENDER, RH

main53875-20260iAT200,ST204199309

53876ALINER, FRONT FENDER, LH

main53876-20270iAT200,ST204199309

53879ARETAINER, FRONT FENDER LINER

main53879-14010iAT200,ST204199309-199610

main53879-14020iAT200,ST204199610

53882FSEAL, FRONT FENDER

main53882-16030iAT200,ST204199309

9011906070

main90119-06070

9015960323

main90159-60323

9015960431

main90159-60431

9015960444

main90159-60444

9015960497

main90159-60497

9018906006

main90189-06006

9018906065

main90189-06065

9018906114

main90189-06114

9033325001

main90333-25001

9054115111

main90541-15111

9095001852

main90950-01852

9095006064

main90950-06064

9165160614

main91651-60614

33 parts on this diagram · 1 diagram in section
