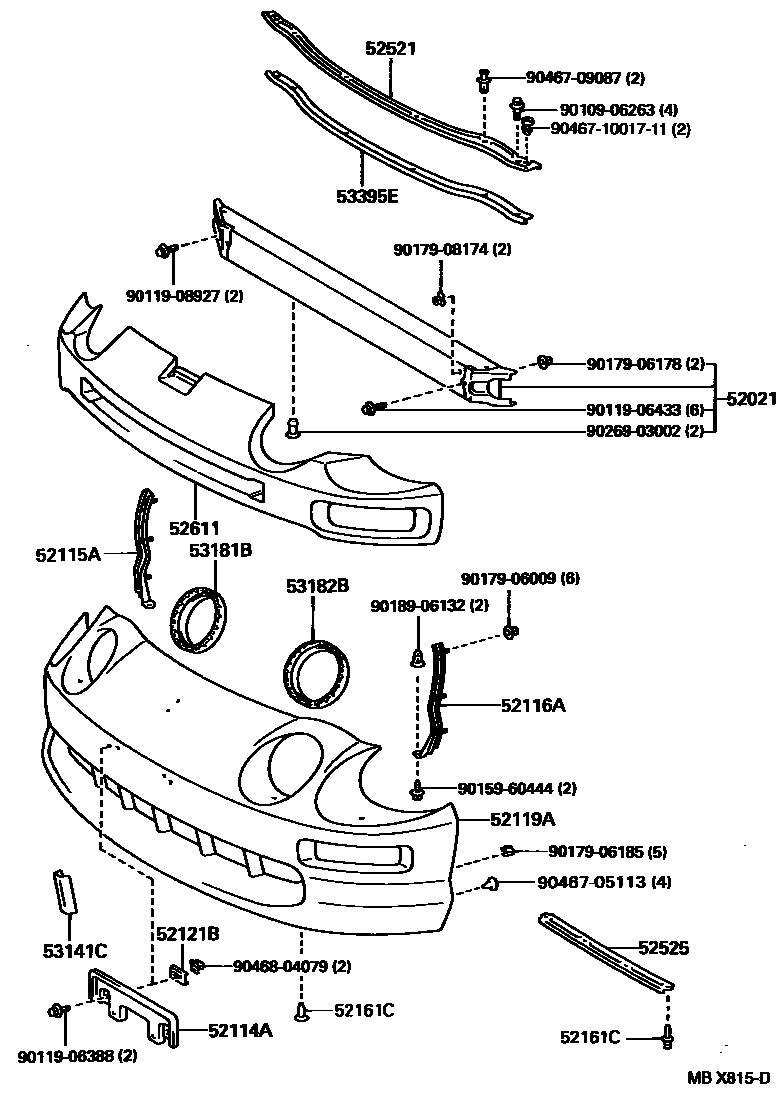

FRONT BUMPER & BUMPER STAY

0001 1 0003 1

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-20240iAT200,ST204199309-199508

main52021-20250iAT200,ST204199510

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-20120iAT200,ST204199309

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-20320iAT200,ST204199309

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-20220iAT200,ST204199309

52119ACOVER, FRONT BUMPER

main52119-2B903iST204..CVT199508-199510

main52119-2B915iAT200,ST204..CP,LB199508-199510

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-24020×2iAT200,ST204199309

52161CPIECE, FRONT BUMPER

main52161-16010×4iAT200,ST204199501

sub52161-0K040

main90467-09143×4iST204..CVT199508-199510

RH,LH

main90467-11021-01×4iST204..CP,LB;AT200..LB..ATM199701-199712

BLACK,040 ,183 ,199 ,202 ,3L2 ,933

sub90467-11068

52521RETAINER, FRONT BUMPER, UPPER CENTER

main52521-20190iAT200,ST204199309-199312

main52521-20191iAT200,ST204199312

52525RETAINER, FRONT BUMPER, LOWER CENTER

main52525-20110iAT200,ST204199309

52611ABSORBER, FRONT BUMPER ENERGY

main52611-20130iAT200,ST204199309-199508

main52611-20180iAT200,ST204..CP,LB199508-199510

53141CGARNISH, RADIATOR GRILLE

main53141-20070×5iAT200,ST204199309-199508

53181BSEAL, HEADLAMP COVER, NO.1, RH

main53182-20030iAT200,ST204199309

53182BSEAL, HEADLAMP COVER, NO.1, LH

main53182-20030iAT200,ST204199309

53395ESEAL, HOOD TO FRONT END PANEL

main53395-20010iAT200,ST204199309

9010906263

main90109-06263

9011906388

main90119-06388

9011906433

main90119-06433

9011908927

main90119-08927

9015960444

main90159-60444

9017906009

main90179-06009

9017906178

main90179-06178

9017906185

main90179-06185

9017908174

main90179-08174

9018906132

main90189-06132

9026903002

main90269-03002

9046705113

main90467-05113

9046709087

main90467-09087

904671001711

main90467-1001711

9046804079

main90468-04079

29 parts on this diagram · 2 diagrams in section
